External thread end right-hand Forte round swaged

제품 라인업 — Threads · External threads

External thread end right-hand Forte round swaged

No.	ø	a	b	c	ø d	sw	F_Rd kN ETA	x min	kg
32850-0800-01	8	M12	175	80	16.1	9	30.6	400	0.1800
Further informations Diameter: 8 mm Weight: 0.1800 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
32850-1000-01	10	M16	205	90	17.9	12	47.9	500	0.3000
Further informations Diameter: 10 mm Weight: 0.3000 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
32850-1200-01	12	M20	235	100	21.4	15	69	600	0.5000
Further informations Diameter: 12 mm Weight: 0.5000 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
32850-1400-01	14	M24	282	120	25	18	94	700	0.8800
Further informations Diameter: 14 mm Weight: 0.8800 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
32850-1600-01	16	M24	300	120	28.2	18	122.4	800	1.0300
Further informations Diameter: 16 mm Weight: 1.0300 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
32850-1900-01	19	M30	362	150	34.5	23	172.8	950	1.9400
Further informations Diameter: 19 mm Weight: 1.9400 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
32850-2200-01	22	M30	390	150	40.5	23	231.4	1100	2.4900
Further informations Diameter: 22 mm Weight: 2.4900 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
32850-2600-01	26	M36	420	160	46	28	315.5	1300	3.5600
Further informations Diameter: 26 mm Weight: 3.5600 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request

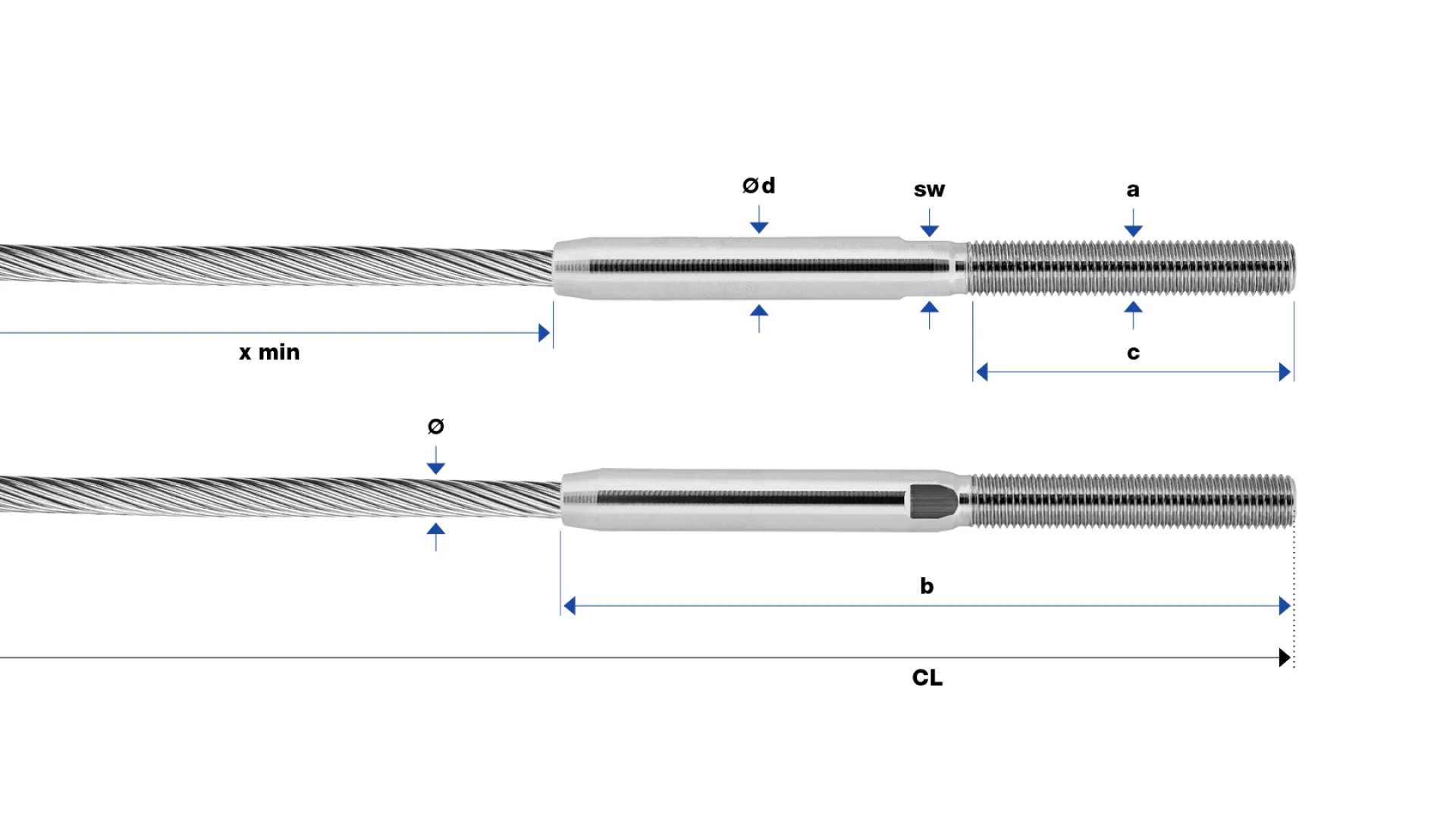

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
