External thread end right-hand LT1 Self-assembly

제품 라인업 — Threads · External threads

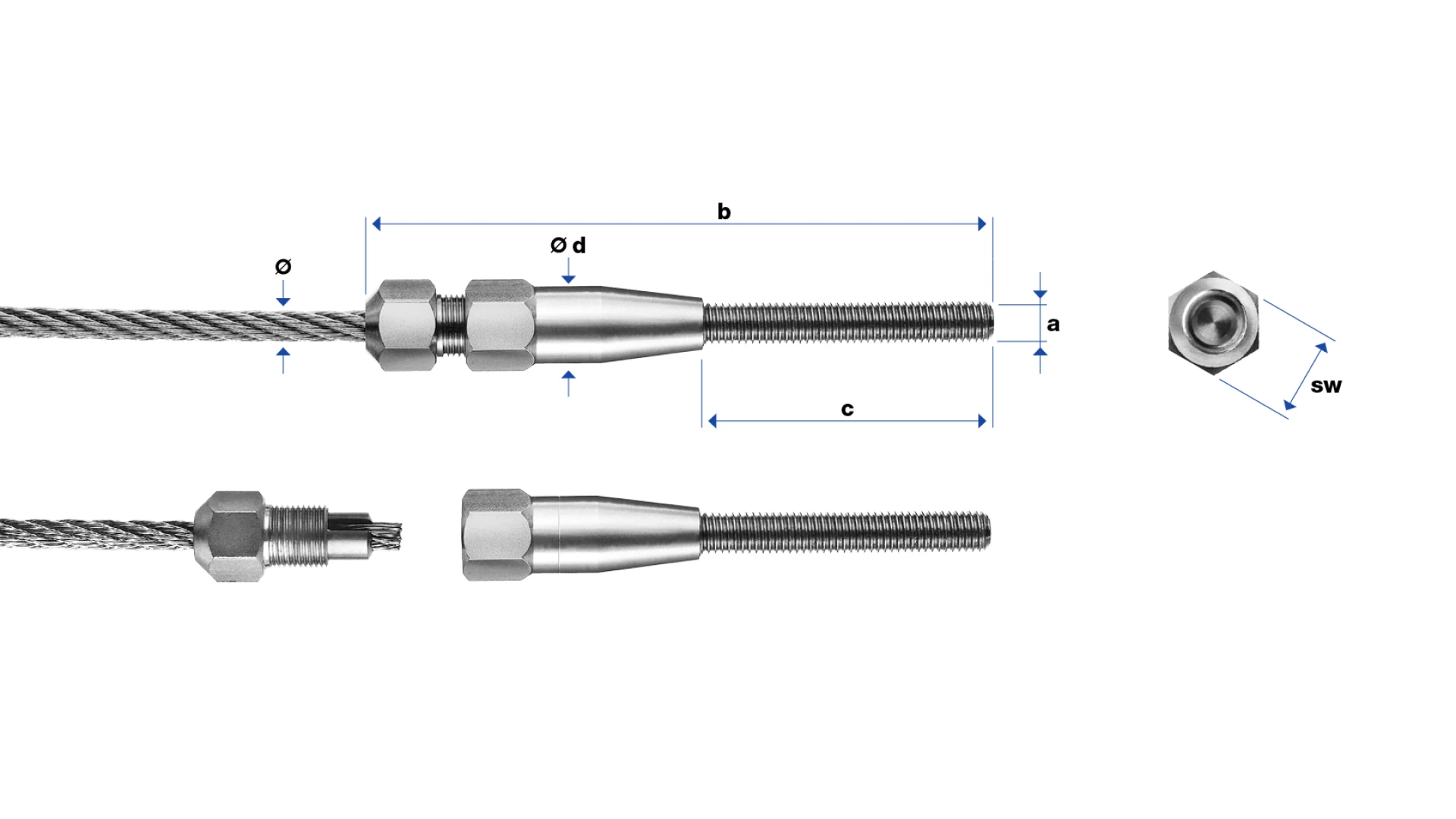

External thread end right-hand LT1 Self-assembly
No. ø a b c ø d sw F_Rd kN ETA F_Rd kN kg
30826-0200-030 2 M6 88 30 12 13 1.8 0.0490
30826-0200-060 2 M6 118 60 12 13 1.8 0.0540
30826-0300-030 3 M6 88 30 12 13 3.4 0.0490
30826-0300-060 3 M6 118 60 12 13 3.4 0.0540
30826-0400-030 4 M6 88 30 12 13 5.2 6.1 0.0480
30826-0400-060 4 M6 118 60 12 13 5.2 6.1 0.0530
30826-0500-030 5 M8 92 30 14.5 15 7.6 9.2 0.0740
30826-0500-060 5 M8 122 60 14.5 15 7.6 9.2 0.0790
30826-0600-030 6 M8 92 30 14.5 15 10.4 11.4 0.0730
30826-0600-031 6 M10 93 30 14.5 15 10.4 11.4 0.0780
30826-0600-060 6 M8 122 60 14.5 15 10.4 11.4 0.0780
30826-0600-061 6 M10 123 60 14.5 15 10.4 11.4 0.0780
30826-0600-081 6 M10 143 80 14.5 15 10.4 11.4 0.0780
30826-0800-061 8 M10 148 60 21.8 22 19.8 22.8 0.0780
30826-0800-080 8 M12 168 80 21.8 22 19.8 22.8 0.2610
30826-0800-081 8 M10 168 80 21.8 22 19.8 22.8 0.2100
30826-0800-120 8 M12 208 120 21.8 22 19.8 22.8 0.2980
30826-1000-090 10 M16 197 90 29.5 30 29.2 31.3 0.5700
30826-1200-100 12 M20 236 100 35.5 36 43.5 45 1.0690
30826-1600-120 16 M24 274 120 44 46 78 79.8 1.9410

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
