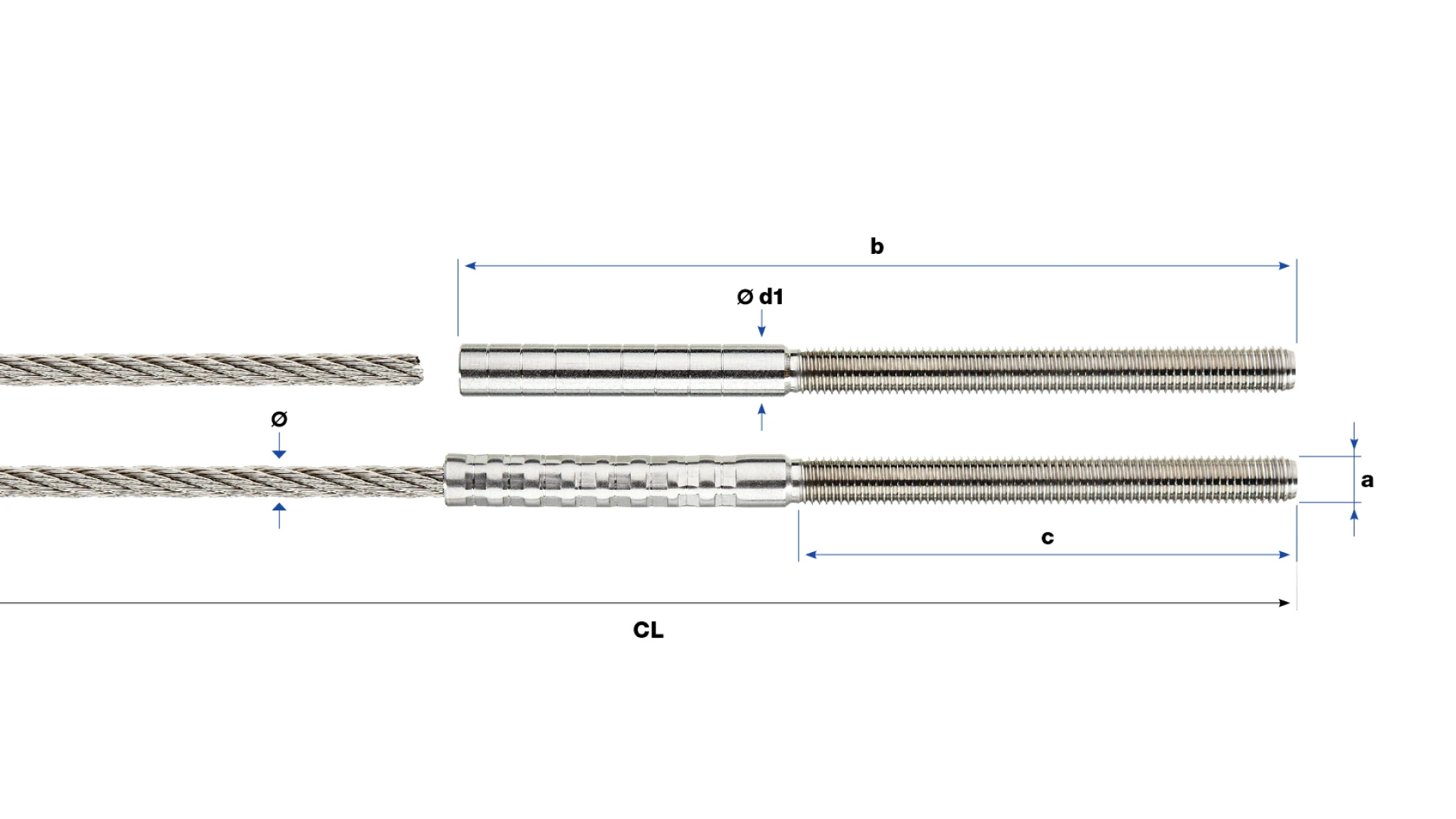

External thread end right-hand SA Self-assembly

제품 라인업 — Threads · External threads

External thread end right-hand SA Self-assembly
No. ø a b c ø d1 F_Rd kN ETA F_Rd kN kg
30936-0200-030 2 M5 48 30 5 1.1 0.0060
30936-0200-060 2 M5 78 60 5 1.1 0.0100
30936-0300-030 3 M6 58 30 6 2.5 0.0090
30936-0300-060 3 M6 88 60 6 2.5 0.0160
30936-0400-030 4 M6 62 30 7 4.4 0.0110
30936-0400-060 4 M6 92 60 7 4.4 0.0170
30936-0408-030 4 M8 62 30 7 4.4 0.0190
30936-0500-030 5 M8 68 30 8 6.1 0.0180
30936-0500-060 5 M8 98 60 8 6.1 0.0270
30936-0600-030 6 M10 80 30 10 11.2 8.7 0.0370
30936-0600-060 6 M10 110 60 10 11.2 8.7 0.0480
30936-0608-030 6 M8 80 30 10 11.2 8.7 0.0370
30936-0608-060 6 M8 110 60 10 11.2 8.7 0.0480
30936-0800-080 8 M12 157 80 13 18.4 17.8 0.1030
30936-0800-120 8 M12 197 120 13 18.4 17.8 0.1310
30936-0810-060 8 M10 137 60 13 18.4 17.8 0.0840

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
