External thread end right-hand short Forte round swaged

제품 라인업 — Threads · External threads

External thread end right-hand short Forte round swaged

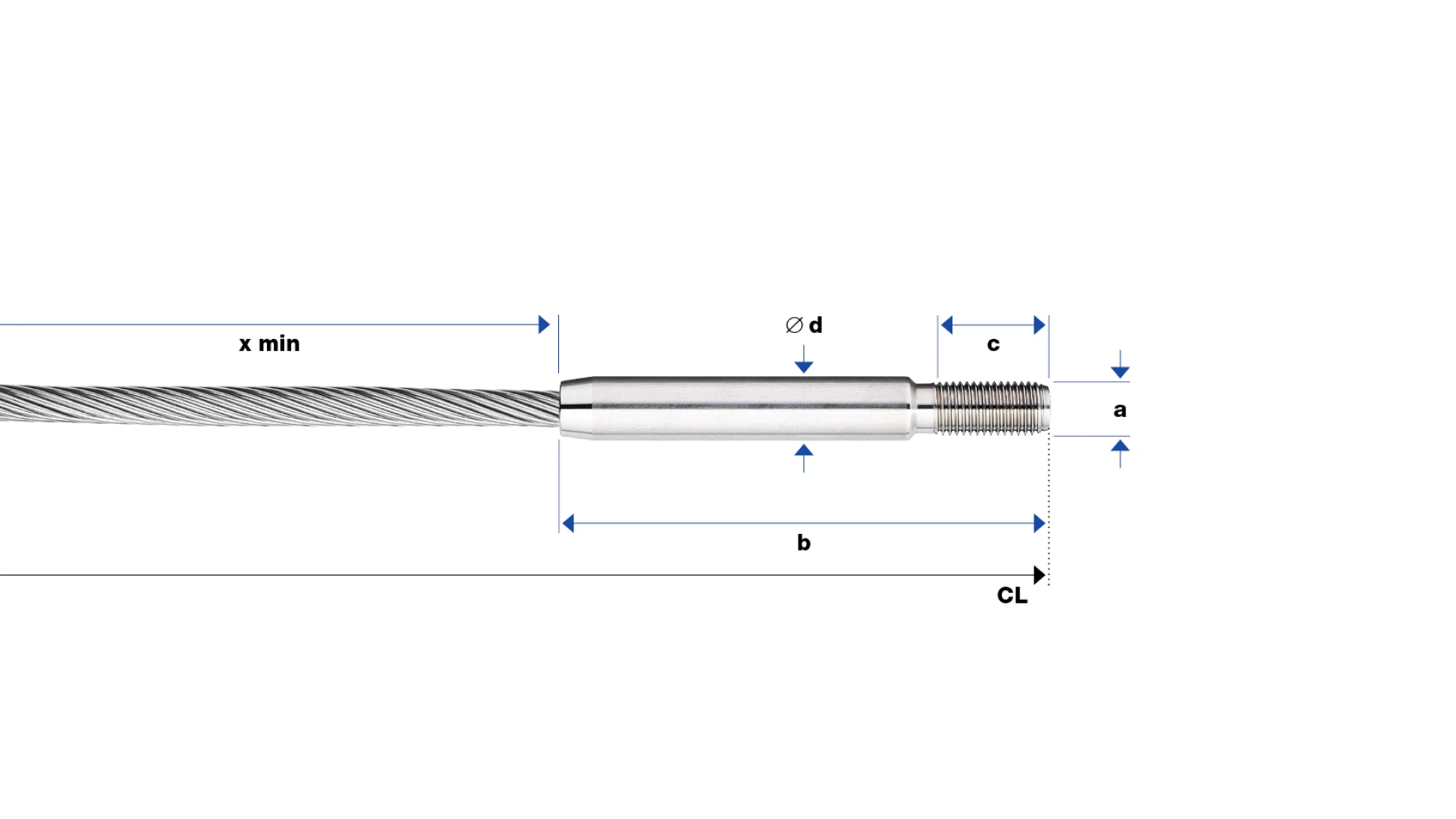

No.	ø	a	b	c	ø d	F_Rd kN ETA	x min	kg
32850-0800-011	8	M12	112	26	16.1	30.6	400	0.1200
Further informations Diameter: 8 mm Weight: 0.1200 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
32850-1000-011	10	M16	140	34	17.9	47.9	500	0.1900
Further informations Diameter: 10 mm Weight: 0.1900 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
32850-1200-011	12	M20	170	42	21.4	69	600	0.3500
Further informations Diameter: 12 mm Weight: 0.3500 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
32850-1400-011	14	M24	197	50	25	94	700	0.5700
Further informations Diameter: 14 mm Weight: 0.5700 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
32850-1600-011	16	M24	214	50	28.2	122.4	800	0.7000
Further informations Diameter: 16 mm Weight: 0.7000 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
32850-1900-011	19	M30	258	61	34.5	172.8	950	1.3300
Further informations Diameter: 19 mm Weight: 1.3300 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
32850-2200-011	22	M30	287	61	40.5	231.4	1100	1.8900
Further informations Diameter: 22 mm Weight: 1.8900 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
32850-2600-011	26	M36	320	74	46	315.5	1300	2.7200
Further informations Diameter: 26 mm Weight: 2.7200 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
