External thread end swivel LT1 Self-assembly

제품 라인업 — Threads · External threads

External thread end swivel LT1 Self-assembly

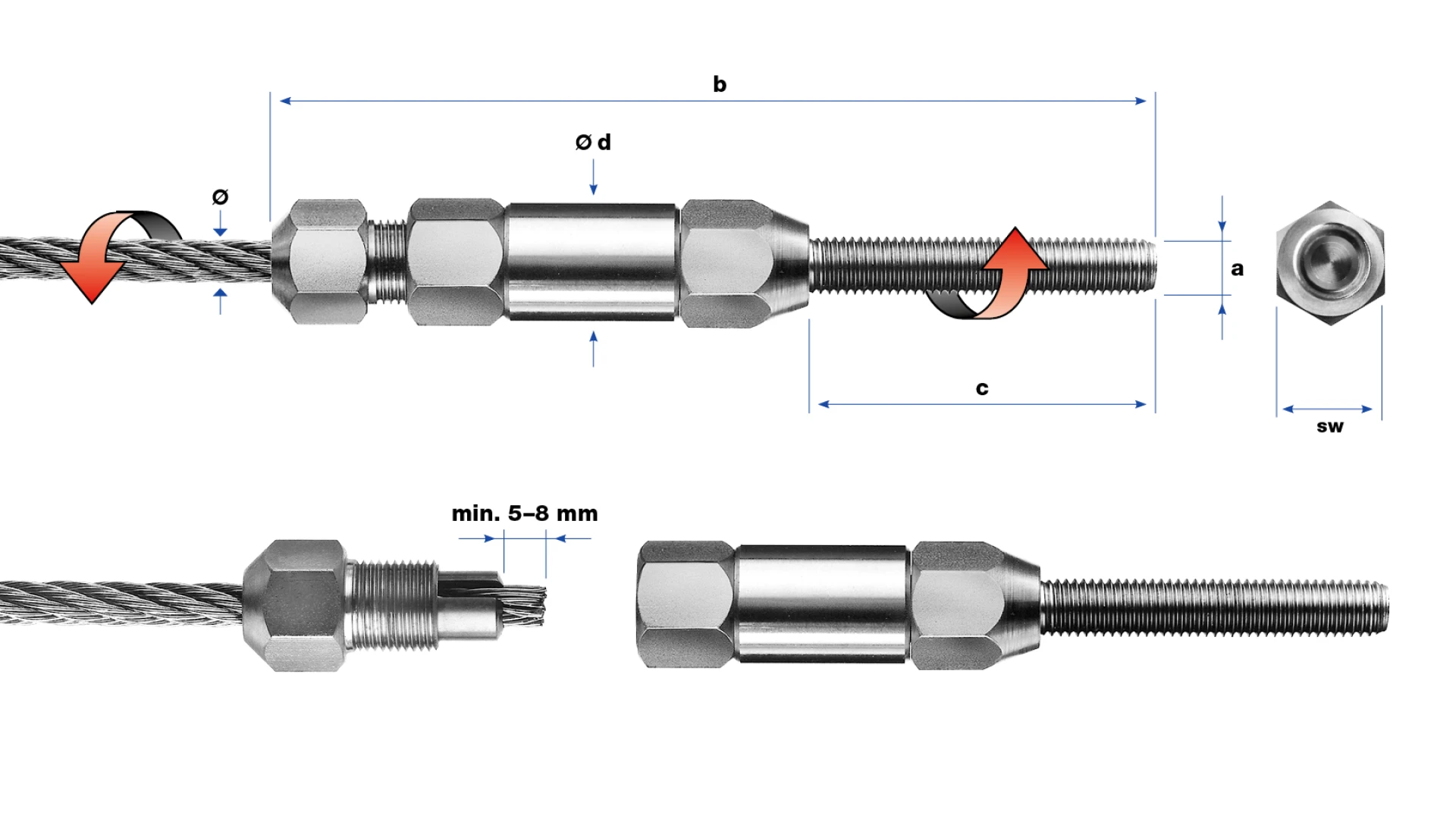

No. ø a b c ø d sw F_Rd kN kg
30828-0300-030 3 M6 98 30 14 13 3.4 0.0690
30828-0300-060 3 M6 128 60 14 13 3.4 0.0750
30828-0400-030 4 M6 98 30 14 13 6.1 0.0690
30828-0400-060 4 M6 128 60 14 13 6.1 0.0750
30828-0400-061 4 M8 127 60 14 13 6.1 0.0830
30828-0500-030 5 M8 106 30 16 15 9.2 0.0940
30828-0500-080 5 M8 156 80 16 15 9.2 0.1090
30828-0600-060 6 M10 135 60 16 15 11.4 0.1140

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
