External thread end swivel swaged

제품 라인업 — Threads · External threads

External thread end swivel swaged
No. ø a b c ø d sw kg
30856-0300-030 3 M6 89 30 10 8 0.0320
30856-0300-060 3 M6 119 60 10 8 0.0370
30856-0400-030 4 M6 89 30 10 8 0.0310
30856-0400-060 4 M6 118 60 10 8 0.0360
30856-0400-061 4 M8 119 60 10 8 0.0440
30856-0500-030 5 M8 109 30 13 11 0.0650
30856-0500-080 5 M8 159 80 13 11 0.0790
30856-0600-060 6 M10 138 60 13 11 0.0880

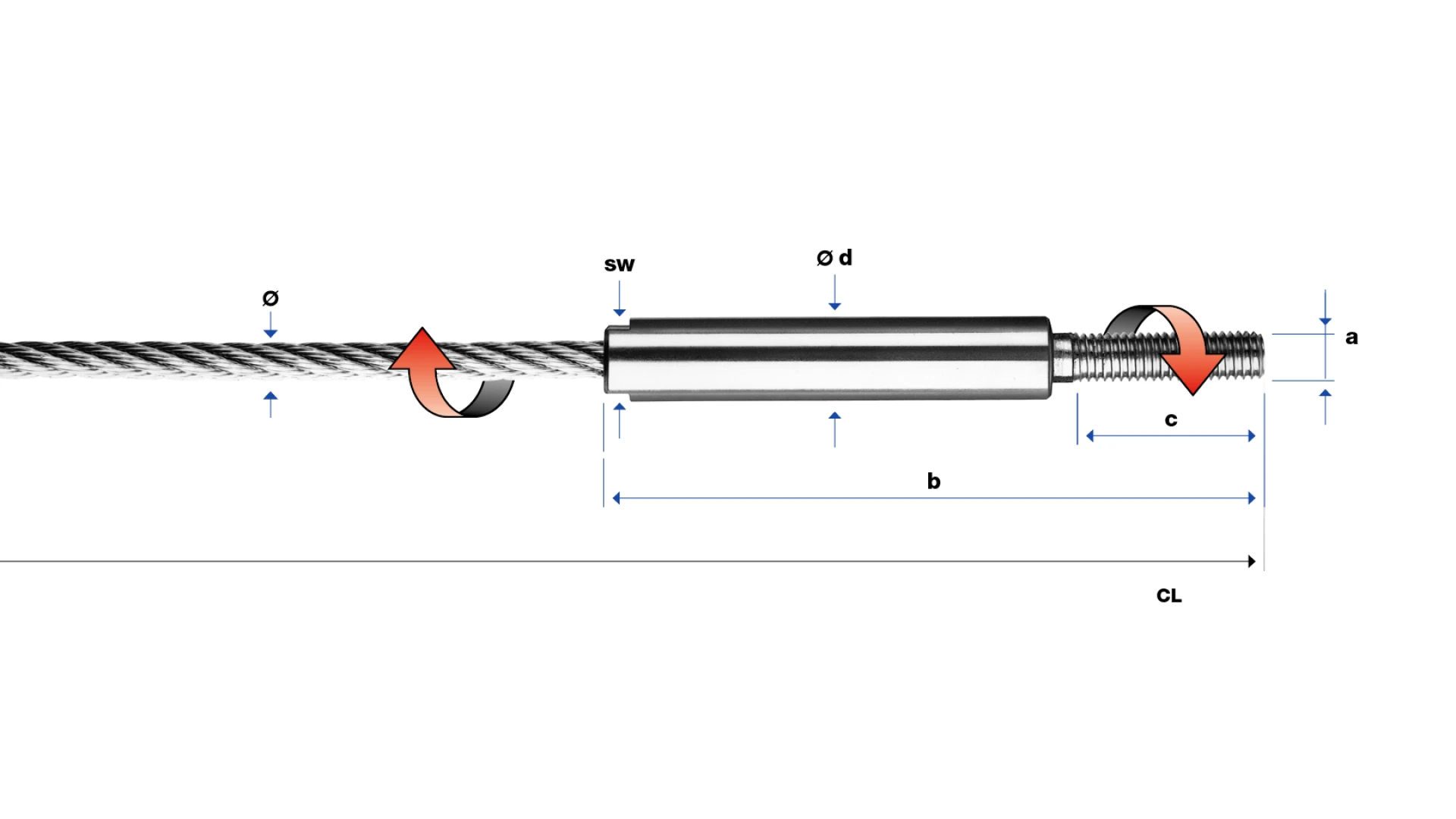

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
