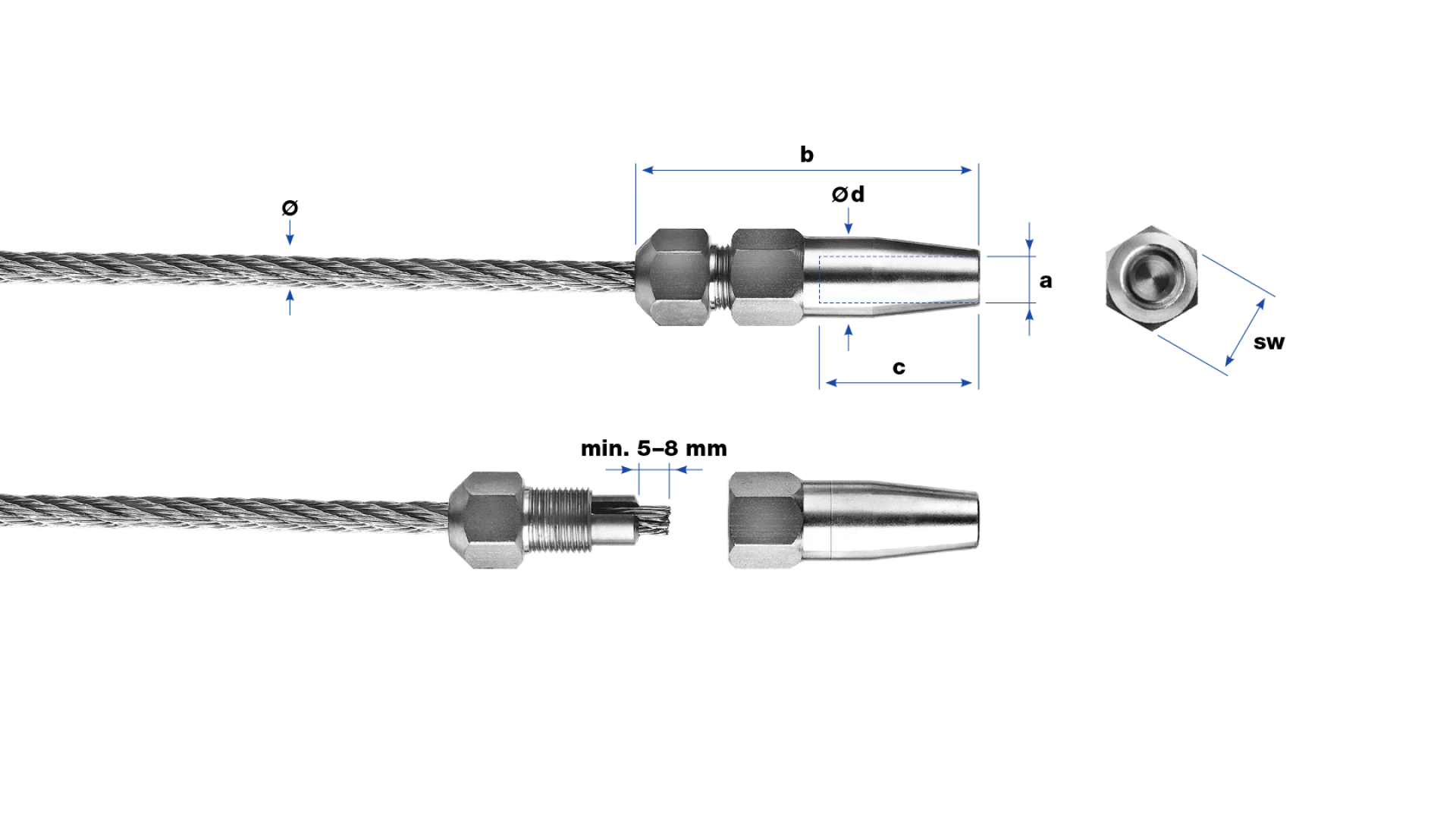

Internal thread end right-hand LT1 self-assembly
No. ø a b c ø d sw F_Rd kN ETA F_Rd kN kg
30831-0200 2 M6 58 20 12 13 1.8 0.0400
30831-0300 3 M6 58 20 12 13 3.4 0.0380
30831-0400 4 M6 58 20 12 13 5.2 6.1 0.0380
30831-0500 5 M8 62 20 14.5 15 7.6 9.2 0.0540
30831-0600 6 M8 62 20 14.5 15 10.4 11.4 0.0520
30831-0800 8 M12 83 18 21.8 22 19.8 22.8 0.1520
30831-1000 10 M16 102 24 29.5 30 29.2 31.3 0.3170
30831-1200 12 M20 125 30 35.5 36 43.5 45 0.6530
30831-1600 16 M24 142 40 44 46 78 79.8 1.2810
