Internal thread end swivel LT1 self-assembly
No. ø a b c ø d1 ø d2 sw F_Rd kN kg
30821-0300-020 3 M5 92 20 14 8 13 3.4 0.0770
30821-0300-035 3 M5 108 35 14 8 13 3.4 0.0820
30821-0400-020 4 M6 92 20 14 8 13 6.1 0.0760
30821-0400-035 4 M6 108 35 14 8 13 6.1 0.0800
30821-0500-020 5 M6 102 20 16 10 13 9.2 0.1000
30821-0500-035 5 M6 117 35 16 10 15 9.2 0.1050
30821-0600-025 6 M8 107 25 16 10 15 11.4 0.0960
30821-0600-050 6 M8 132 50 16 10 15 11.4 0.1100

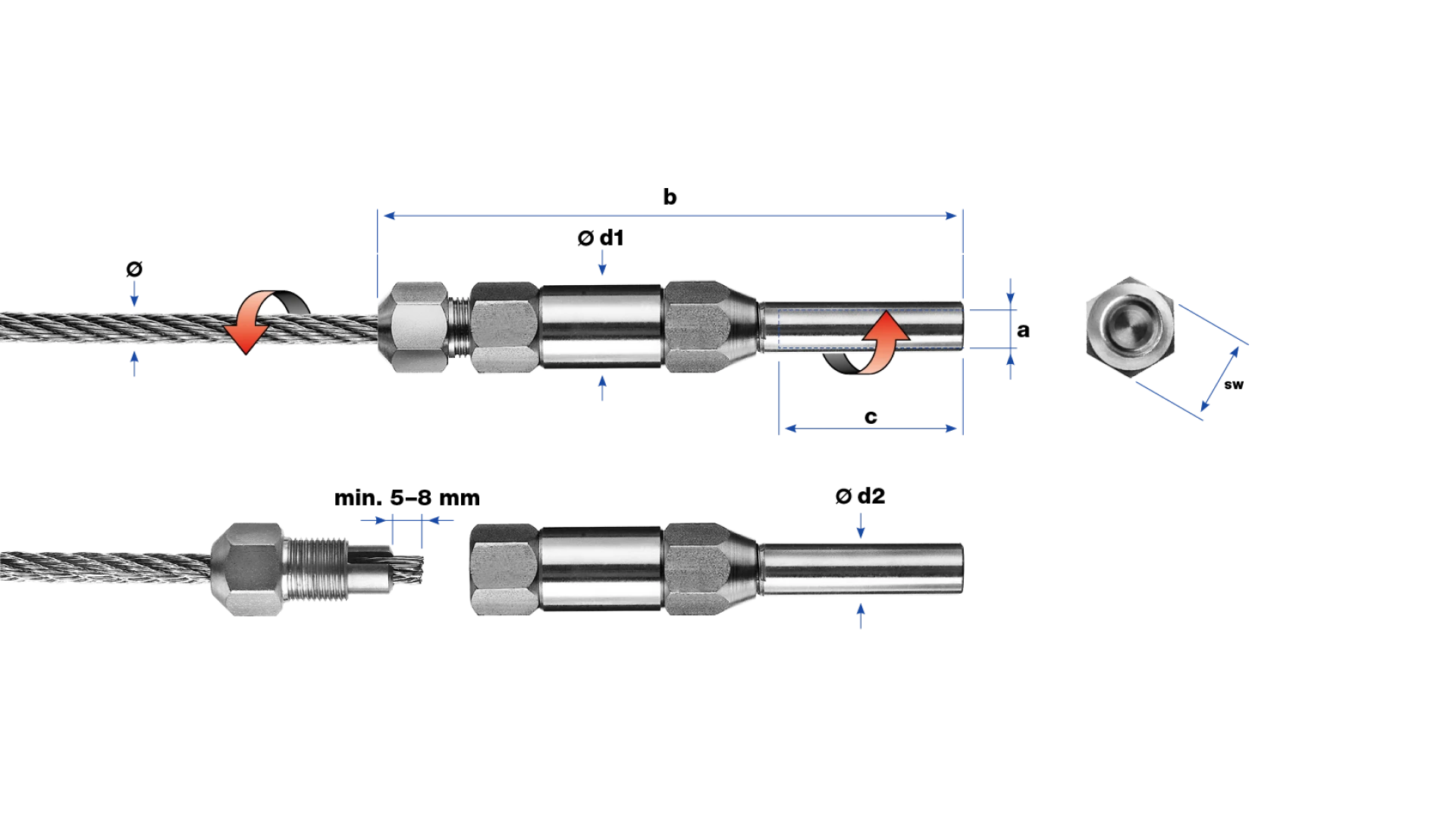

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
