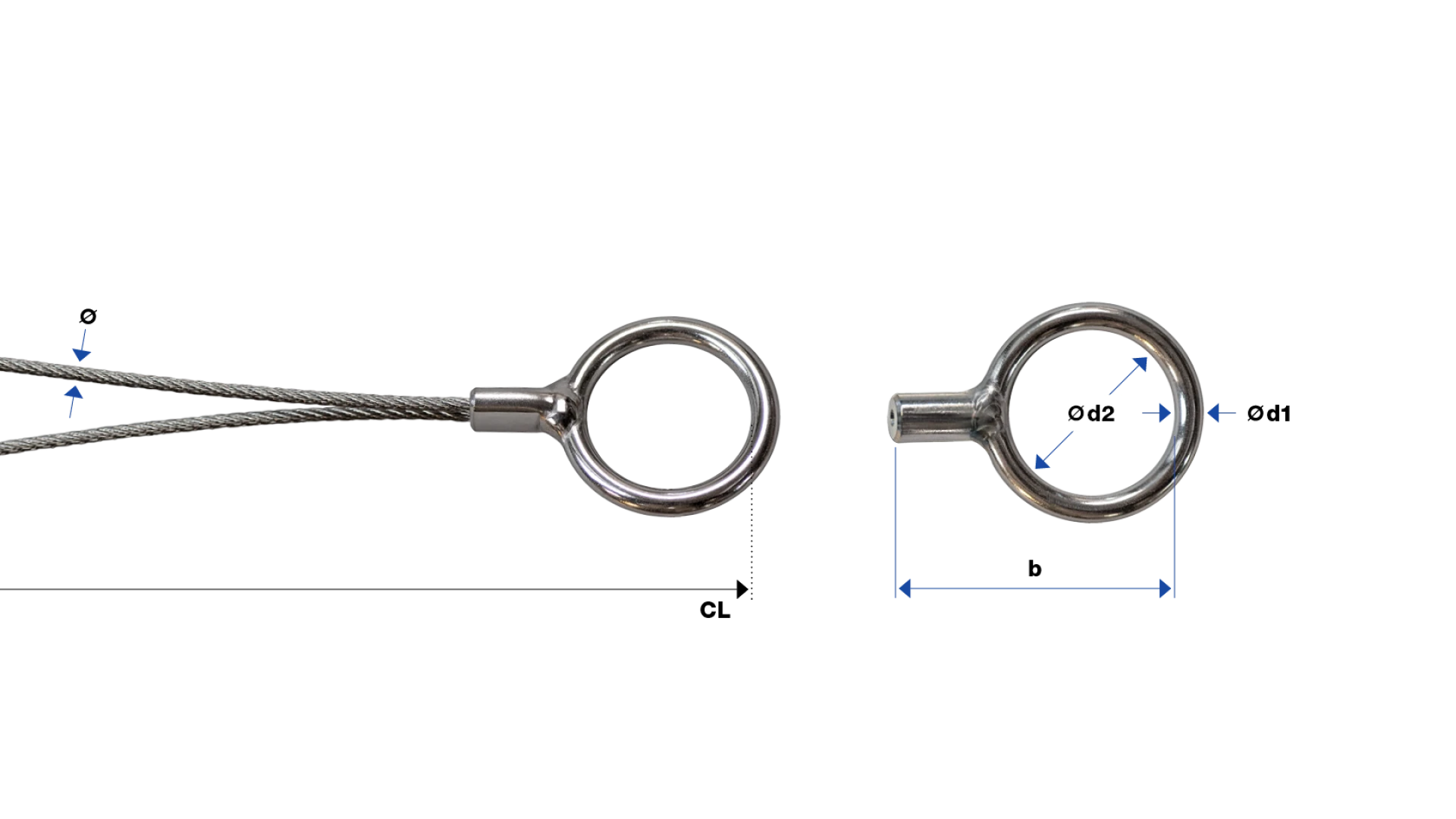

Ring Webnet Self-assembly for two ropes

제품 라인업 — Webnet · Additional parts

Ring Webnet Self-assembly for two ropes

No.	ø	b	ø d1	ø d2	kg
30880-0150-22	1.5	28	4	14	0.0080
Further informations Diameter: 1.5 mm Weight: 0.0080 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30880-0150-24	1.5	35	4	22	0.0100
Further informations Diameter: 1.5 mm Weight: 0.0100 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30880-0200-22	2	29	4	14	0.0080
Further informations Diameter: 2 mm Weight: 0.0080 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30880-0200-24	2	38	4	22	0.0110
Further informations Diameter: 2 mm Weight: 0.0110 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30880-0300-22	3	36	4	17	0.0150
Further informations Diameter: 3 mm Weight: 0.0150 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30880-0300-24	3	49	4	30	0.0190
Further informations Diameter: 3 mm Weight: 0.0190 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
