Webnet Duplex

제품 라인업 — Webnet · Webnet with sleeves

Webnet Duplex
No. ø MW ML kg
20268-0150-025 1.5 25 45.46 1.8200
20268-0150-030 1.5 30 60.73 1.2600
20268-0150-035 1.5 35 67.98 1.1800
20268-0150-040 1.5 40 75.18 0.8300
20268-0150-050 1.5 50 91.39 0.6200
20268-0150-060 1.5 60 107.78 0.4800
20268-0150-070 1.5 70 124.78 0.4500
20268-0150-080 1.5 80 141.45 0.3200
20268-0150-100 1.5 100 175.34 0.2800
20268-0150-120 1.5 120 210.36 0.2200
20268-0150-140 1.5 140 244.98 0.1800
20268-0150-160 1.5 160 280.1 0.1500
20268-0150-180 1.5 180 314.33 0.1100
20268-0150-200 1.5 200 348.51 0.1100
20268-0150-250 1.5 250 435.6 0.1100
20268-0200-040 2 40 74.93 1.5200
20268-0200-050 2 50 91.11 1.1400
20268-0200-060 2 60 107.54 0.9000
20268-0200-070 2 70 124.1 0.7200
20268-0200-080 2 80 141.03 0.6300
20268-0200-100 2 100 175.16 0.4600
20268-0200-120 2 120 209.78 0.3500
20268-0200-140 2 140 244.11 0.3000
20268-0200-160 2 160 278.29 0.2500
20268-0200-180 2 180 313.2 0.2400
20268-0200-200 2 200 348.4 0.1900
20268-0200-250 2 250 435.2 0.1500
20268-0300-040 3 40 74.8 3.3800
20268-0300-050 3 50 90.5 2.5400
20268-0300-060 3 60 106.6 2.0100
20268-0300-070 3 70 124 1.6200
20268-0300-080 3 80 141 1.3700
20268-0300-100 3 100 175 1.0300
20268-0300-120 3 120 209 0.8300
20268-0300-140 3 140 244 0.7500
20268-0300-160 3 160 279 0.6500
20268-0300-180 3 180 313 0.5500
20268-0300-200 3 200 346.18 0.4400
20268-0300-250 3 250 432.95 0.3400
20268-0300-300 3 300 519.38 0.2800
20268-0300-400 3 400 691.89 0.2800

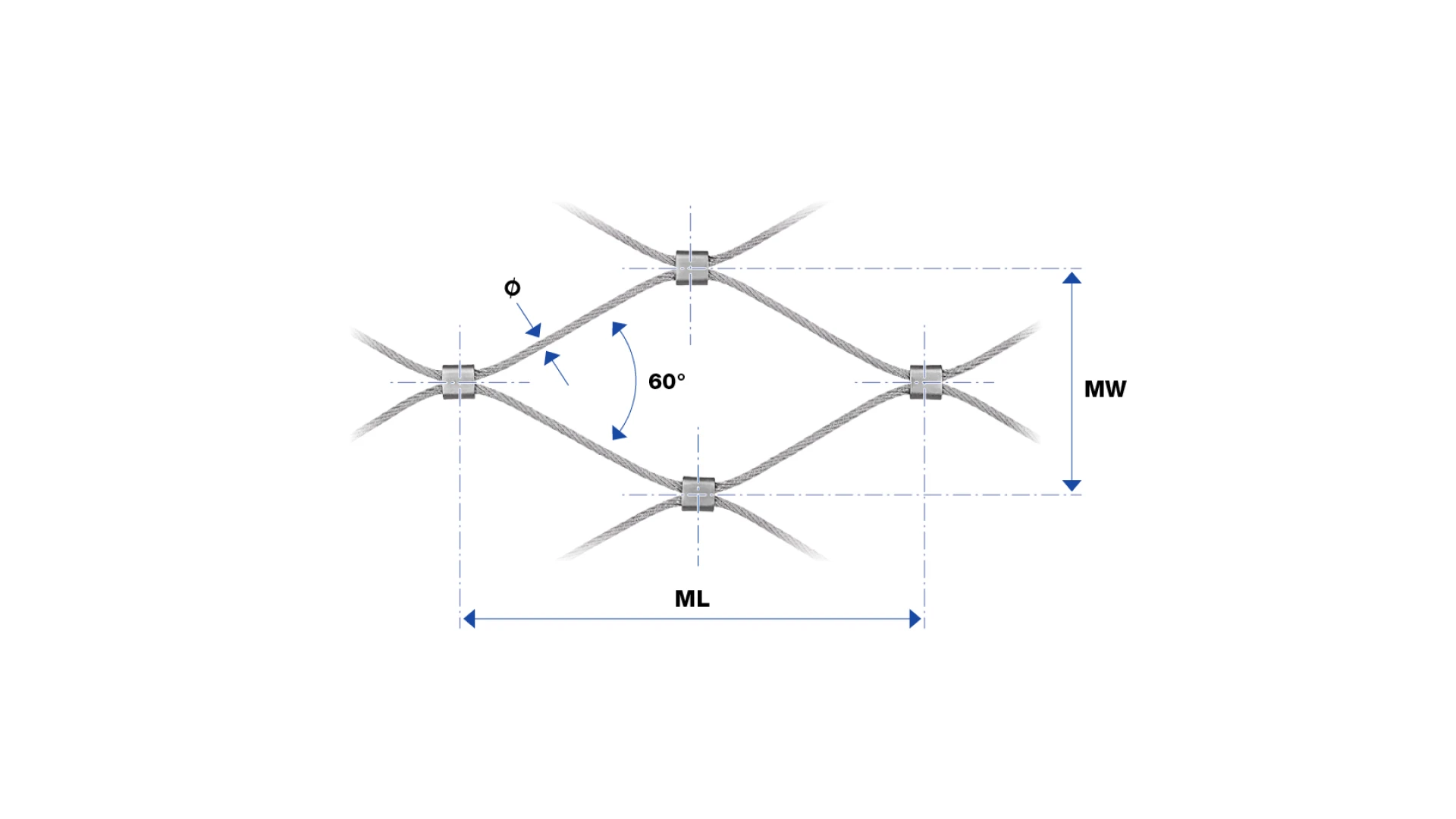

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
