Webnet Duplex sleeveless

제품 라인업 — Webnet · Webnet without sleeves

Webnet Duplex sleeveless
No. ø MW ML kg
20269-0150-025 1.5 25 44.61 0.8700
20269-0150-030 1.5 30 60.18 0.6700
20269-0150-035 1.5 35 66.74 0.6200
20269-0150-040 1.5 40 74.76 0.4900
20269-0150-050 1.5 50 89.74 0.3900
20269-0150-060 1.5 60 105.66 0.3300
20269-0150-070 1.5 70 124.58 0.2700
20269-0150-080 1.5 80 139.56 0.2400
20269-0150-100 1.5 100 174.6 0.1900
20269-0150-120 1.5 120 208.48 0.1500
20269-0150-140 1.5 140 243.06 0.1300
20269-0150-160 1.5 160 277.75 0.1100
20269-0150-180 1.5 180 313.56 0.1000
20269-0150-200 2 200 349.88 0.0800
20269-0150-250 1.5 250 432.43 0.0600
20269-0200-040 2 40 74.8 0.9300
20269-0200-050 2 50 89.72 0.7500
20269-0200-060 2 60 105.72 0.6300
20269-0200-070 2 70 122.35 0.5300
20269-0200-080 2 80 139.57 0.4600
20269-0200-100 2 100 173.48 0.3700
20269-0200-120 2 120 207.52 0.3000
20269-0200-140 2 140 243.06 0.2600
20269-0200-160 2 160 276.27 0.2200
20269-0200-180 2 180 313.17 0.2000
20269-0200-200 2 200 346.8 0.1700
20269-0200-250 2 250 433.35 0.1400
20269-0300-040 3 40 73.86 2.3200
20269-0300-050 3 50 88.26 1.8900
20269-0300-060 3 60 105.66 1.5800
20269-0300-070 3 70 122.46 1.3400
20269-0300-080 3 80 139.49 1.1700
20269-0300-100 3 100 173.32 0.9400
20269-0300-120 3 120 207.26 0.7800
20269-0300-140 3 140 241.74 0.6600
20269-0300-160 3 160 276.52 0.5800
20269-0300-180 3 180 310.96 0.5100
20269-0300-200 3 200 345.87 0.4600
20269-0300-250 3 250 433.56 0.3700
20269-0300-300 3 300 517.28 0.3000
20269-0300-400 3 400 685.35 0.1400

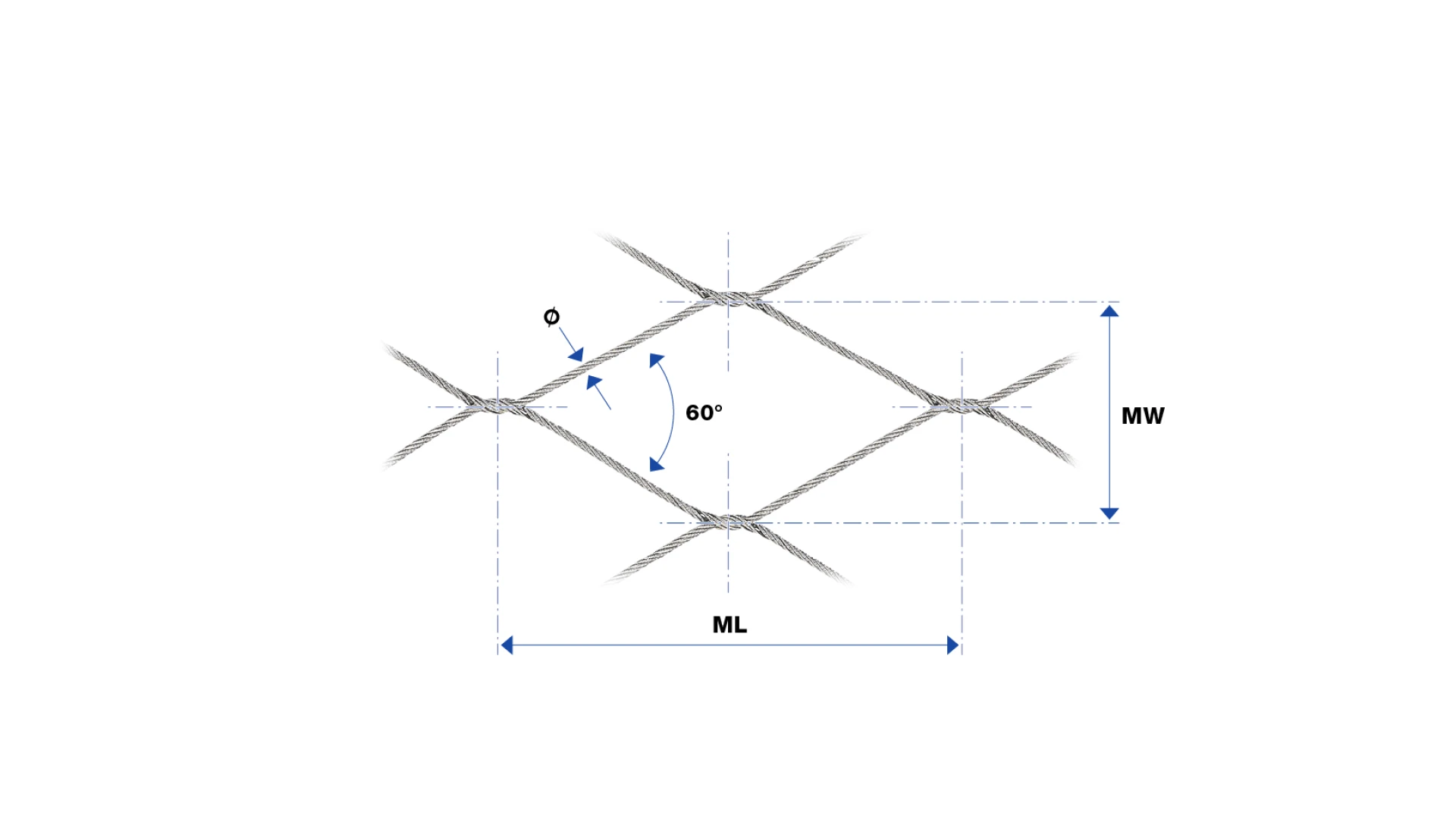

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
