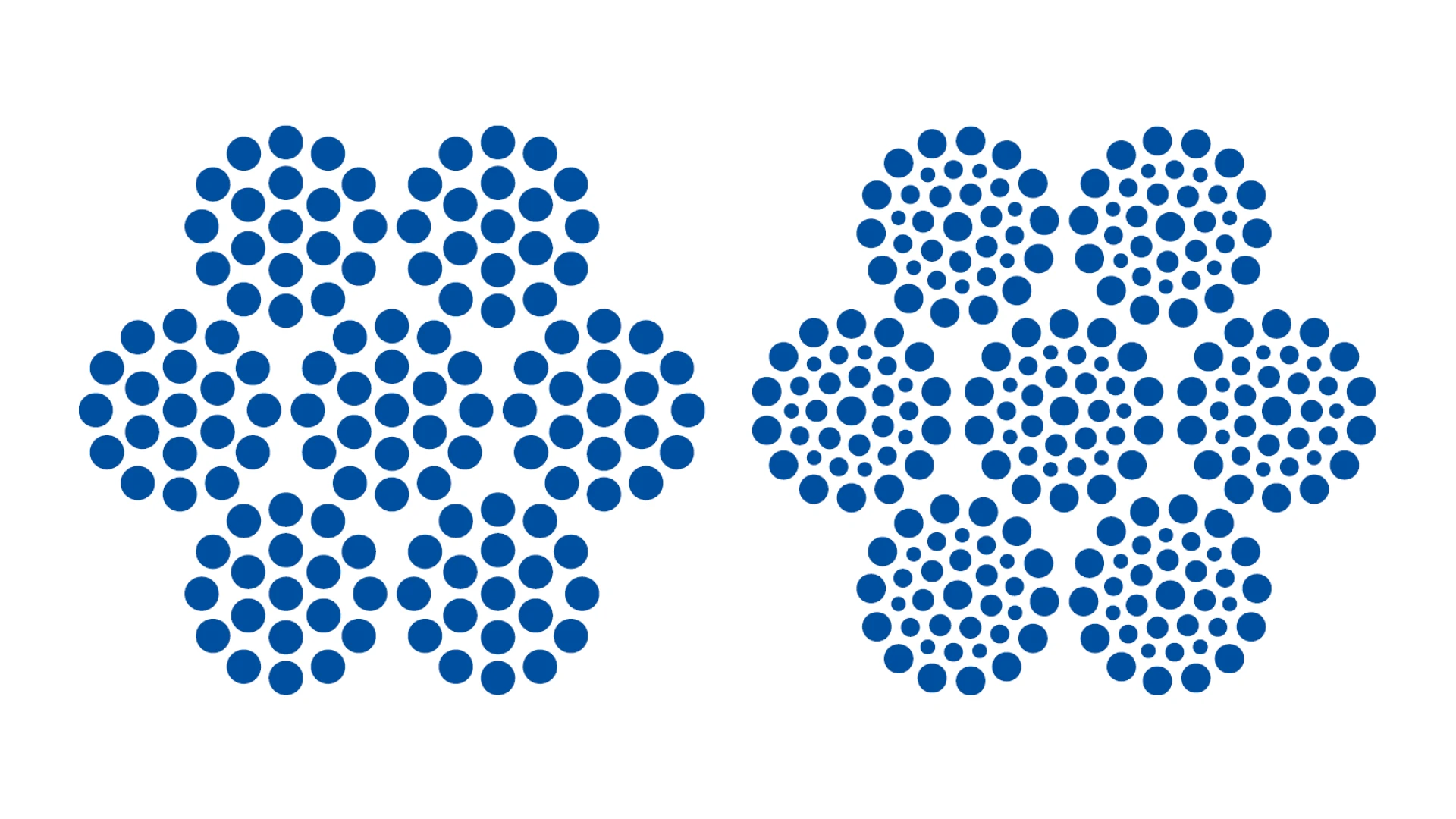

Circular wire strand rope 6 x 19 + WC / 6 x 36 + WC
No. ø Constr MBL kN F_Rd kN kg
10830-0120 1.2 6 x 19 + WC 0.82 0.55 0.0050
10830-0150 1.5 6 x 19 + WC 1.28 0.85 0.0090
10830-0200 2 6 x 19 + WC 2.00 1.33 0.0180
10830-0250 2.5 6 x 19 + WC 3.55 2.37 0.0210
10830-0300 3 6 x 19 + WC 4.60 3.07 0.0377
10830-0400 4 6 x 19 + WC 8.30 5.53 0.0560
10830-0500 5 6 x 19 + WC 13.00 8.67 0.0810
10830-0600 6 6 x 19 + WC 18.70 12.47 0.1200
10830-0650 6.5 6 x 19 + WC 24.01 16.01 0.1500
10830-0800 8 6 x 19 + WC 33.30 22.20 0.2595
10830-1000 10 6 x 19 + WC 52.10 34.73 0.3900
10830-1200 12 6 x 19 + WC 75 50 0.5600
10830-1600 16 6 x 19 + WC 133 88.67 0.9900
10830-2000 20 6 x 36 + WC 188 125.33 1.6400

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
