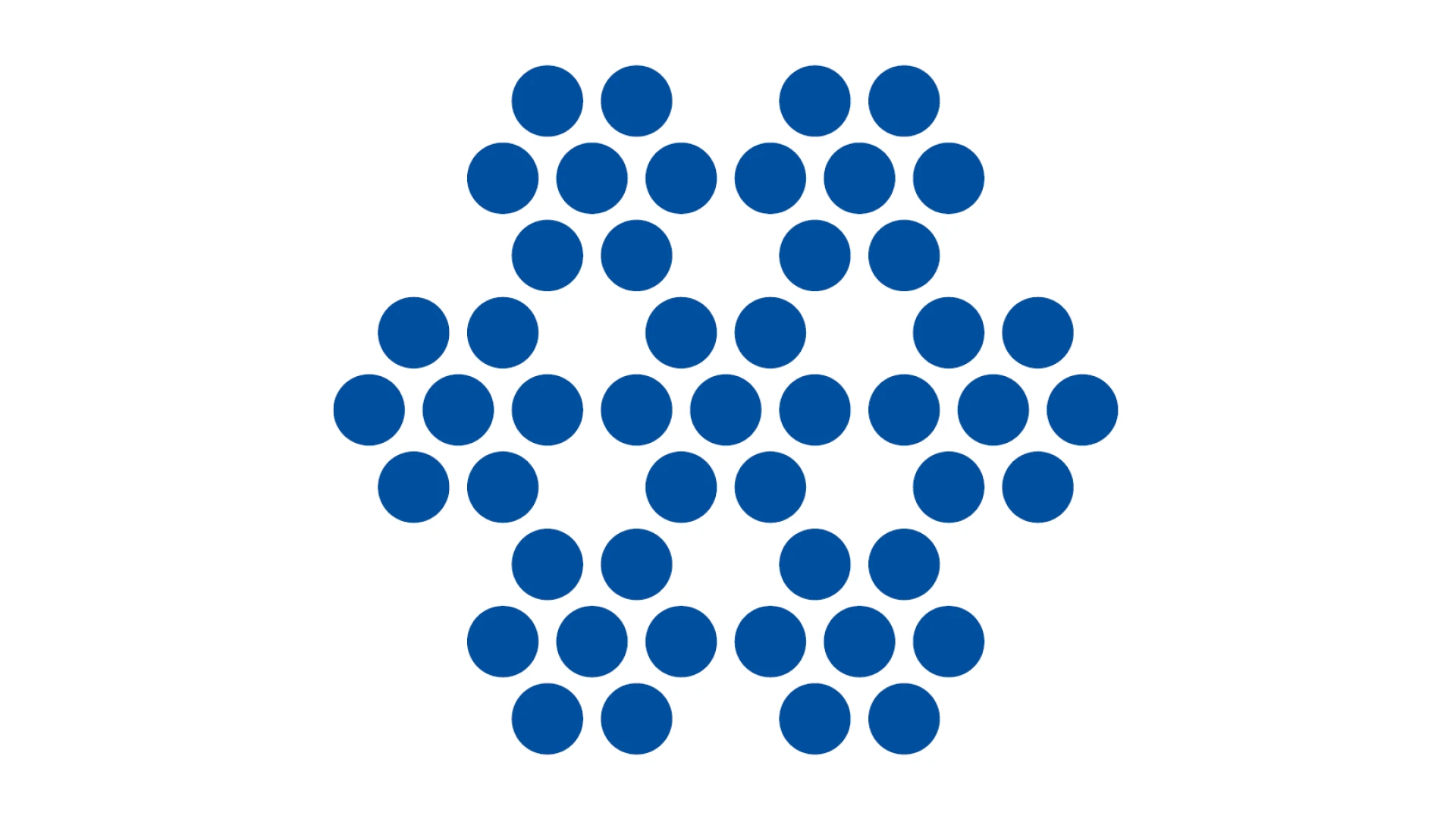

Circular wire strand rope Duplex 6 x 7 + WC

제품 라인업 — Wire ropes · Circular wire strand rope

Circular wire strand rope Duplex 6 x 7 + WC

No.	ø	Constr	F_Rd kN ETA	MBL kN	kg
10820-0151	1.5	6 x 7 + WC	0.91	1.37	0.0090
Further informations Standard and Classification: EN 12385/DIN 3053 Construction: 6 x 7 + WC Diameter: 1.5 mm Weight: 0.0090 kg Material group: material group AISI 318LN/1.4462 Nominal strength (Mat. strength): 1570 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
10820-0201	2	6 x 7 + WC	1.6	2.4	0.0160
Further informations Standard and Classification: EN 12385/DIN 3053 Construction: 6 x 7 + WC Diameter: 2 mm Weight: 0.0160 kg Material group: material group AISI 318LN/1.4462 Nominal strength (Mat. strength): 1570 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
