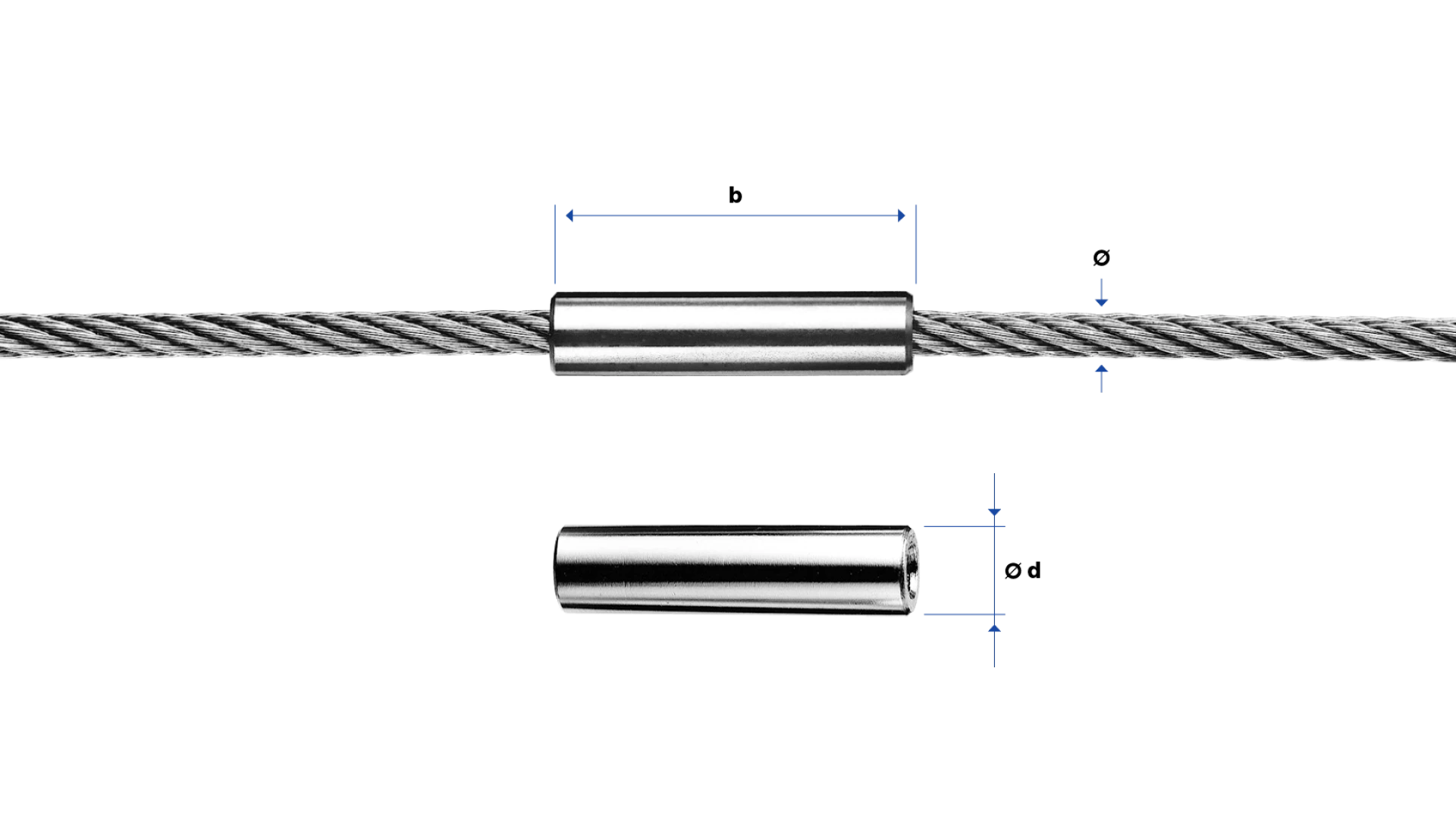

Loose sleeve slidable mounted

제품 라인업 — Wire ropes · Wire rope accessories

Loose sleeve slidable mounted
No. ø b ø d kg
30864-0306-15 3 15 6 0.0030
30864-0306-30 3 30 6 0.0050
30864-0306-50 3 50 6 0.0080
30864-0307-30 3 30 7 0.0070
30864-0307-50 3 50 7 0.0120
30864-0310-15 3 15 10 0.0080
30864-0407-15 4 15 7 0.0030
30864-0407-30 4 30 7 0.0060
30864-0407-40 4 40 7 0.0080
30864-0407-50 4 50 7 0.0100
30864-0408-15 4 15 8 0.0040
30864-0408-30 4 30 8 0.0090
30864-0408-40 4 40 8 0.0120
30864-0408-50 4 50 8 0.0140
30864-0410-15 4 15 10 0.0080
30864-0410-30 4 30 10 0.0150
30864-0410-40 4 40 10 0.0210
30864-0410-50 4 50 10 0.0250
30864-0508-15 5 15 8 0.0040
30864-0508-30 5 30 8 0.0070
30864-0508-40 5 40 8 0.0090
30864-0508-50 5 50 8 0.0110
30864-0513-15 5 15 13 0.0130
30864-0513-50 5 50 13 0.0440
30864-0610-15 6 15 10 0.0050
30864-0610-30 6 30 10 0.0100
30864-0610-40 6 40 10 0.0150
30864-0610-50 6 50 10 0.0180
30864-0613-15 6 15 13 0.0120
30864-0613-30 6 30 13 0.0240
30864-0613-40 6 40 13 0.0320
30864-0613-50 6 50 13 0.0400
30864-0813-15 8 15 13 0.0090
30864-0813-30 8 30 13 0.0180
30864-0813-40 8 40 13 0.0240
30864-0813-50 8 50 13 0.0310
30864-1225-50 12 50 25 0.1490

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
