제품 라인업 — Chains · Chain hoists
| No. | ø | b1 | b2 | b3 | b4 | g | k | Typ | WLL kN | kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 80420-0800 | 6 | 290 | 120 | 142 | 235 | 24 | 13 | 800 B | 7.84 | 5.5000 | |
Further informations
Price basis / tiered pricesPrice on request |
|||||||||||
| 80420-1600 | 8 | 330 | 138 | 163 | 370 | 31 | 20 | 1600 B | 15.69 | 9.6000 | |
Further informations
Price basis / tiered pricesPrice on request |
|||||||||||
| 80420-3200 | 10 | 430 | 177 | 185 | 370 | 35 | 24 | 3200 B | 31.37 | 16.0000 | |
Further informations
Price basis / tiered pricesPrice on request |
|||||||||||
| 80420-6300 | 10 | 580 | 259 | 185 | 370 | 46 | 43 | 6300 B | 61.76 | 31.0000 | |
Further informations
Price basis / tiered pricesPrice on request |
|||||||||||

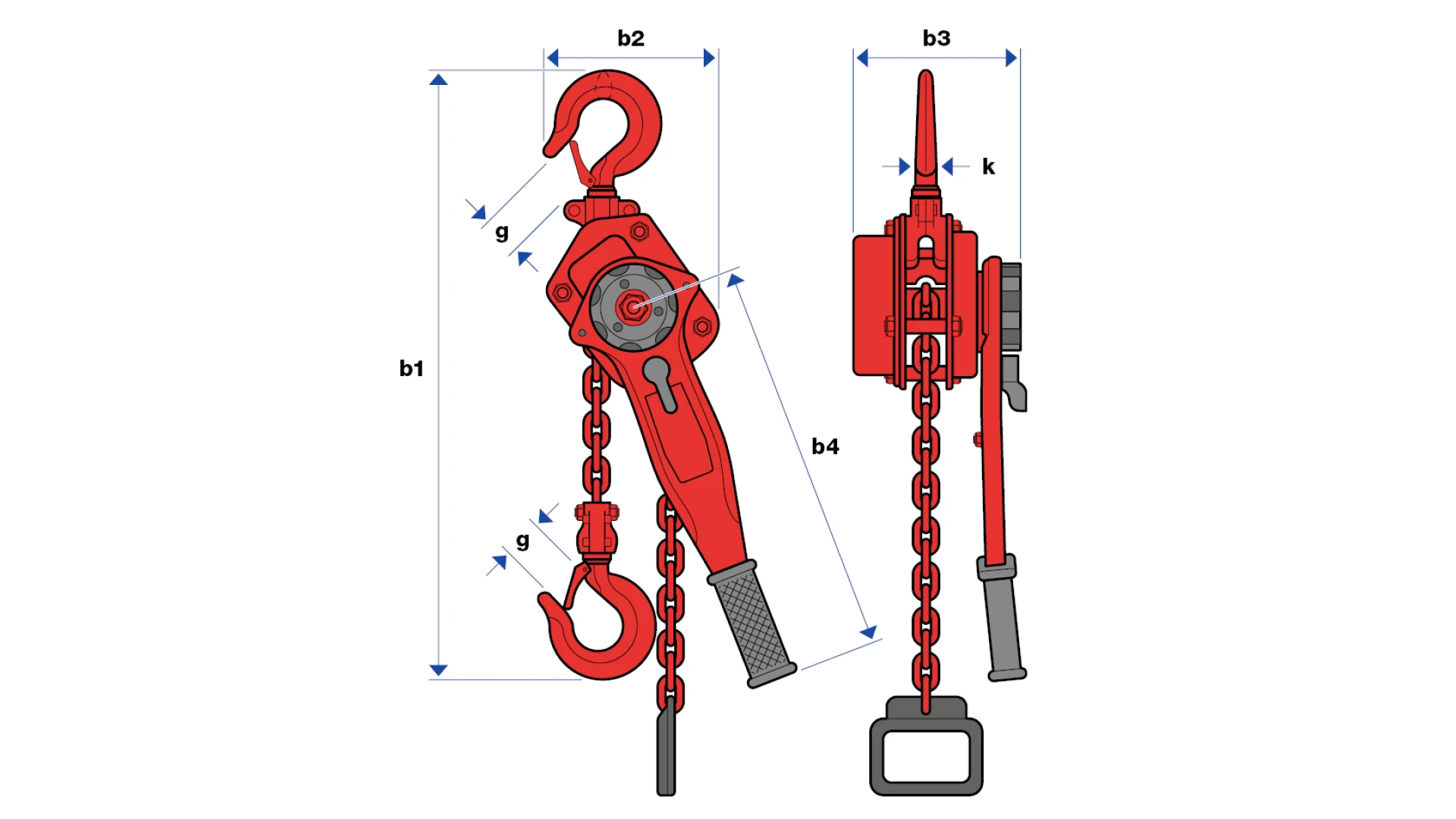

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.
