Chain-shortening hook with eye end GK 10
No. ø b1 b2 g ø d1 ø d2 WLL kN kg
80340-0600-10 6 76 50 8 13 8 14 0.2000
80340-0780-10 7-8 102 62 10 16 10 25 0.3000
80340-1000-10 10 124 82 13 20 13 40 0.6000
80340-1300-10 13 157 107 16 25 16 67 1.4000
80340-1600-10 16 204 132 20 30 20 100 2.4000

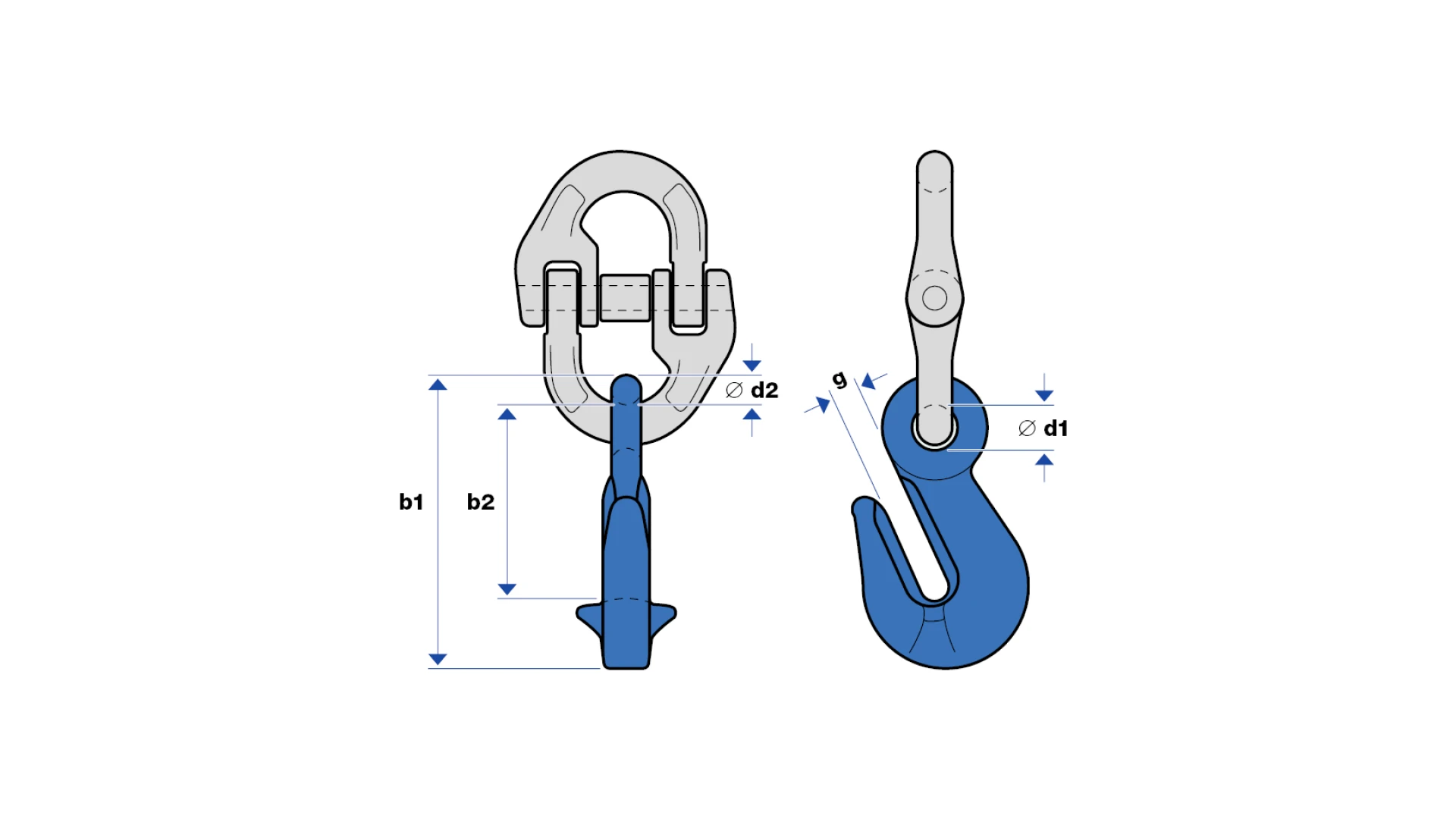

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
