Clevis sling hook GK 10

제품 라인업 — Chains · Chains class 10 and accessories

Clevis sling hook GK 10

No.	ø	b1	b2	g	WLL kN	kg
80200-0600-10	6	126	79	23	14	0.3000
Further informations Surface: powder-coated Diameter: 6 mm Weight: 0.3000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80200-0780-10	7-8	136	95	26	25	0.6000
Further informations Surface: powder-coated Diameter: 7-8 mm Weight: 0.6000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80200-1000-10	10	175	110	31	40	1.2000
Further informations Surface: powder-coated Diameter: 10 mm Weight: 1.2000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80200-1300-10	13	212	136	40	67	2.3000
Further informations Surface: powder-coated Diameter: 13 mm Weight: 2.3000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80200-1600-10	16	261	166	48	100	2.3000
Further informations Surface: powder-coated Diameter: 16 mm Weight: 2.3000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request

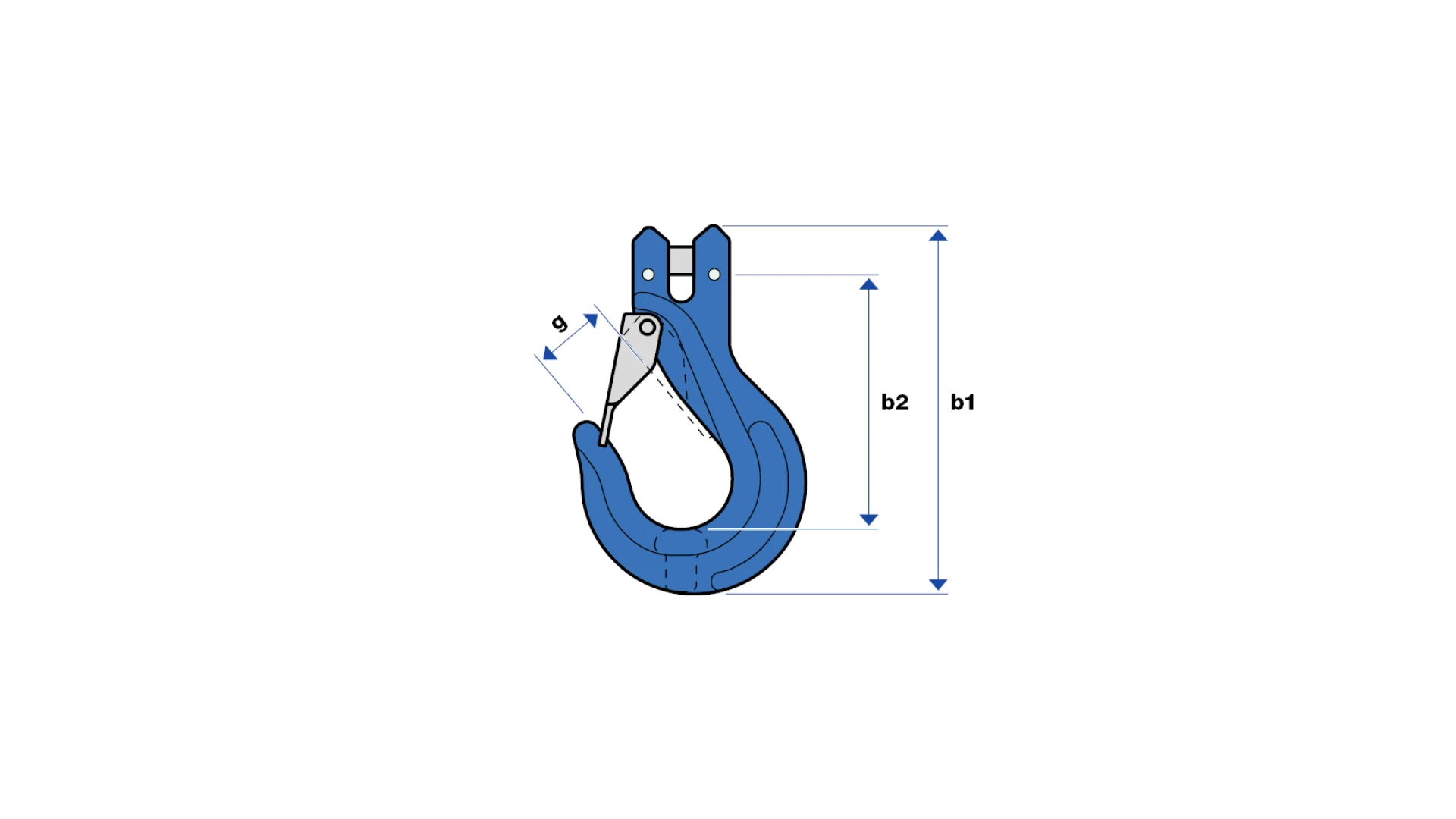

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
