Container or foundry hook GK 10

제품 라인업 — Chains · Chains class 10 and accessories

Container or foundry hook GK 10

No.	ø	b1	b2	g	WLL kN	kg
80221-0780-10	7-8	156	109	63	25	0.9500
Further informations Surface: powder-coated Diameter: 7-8 mm Weight: 0.9500 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80221-1000-10	10	194	134	76	40	1.8000
Further informations Surface: powder-coated Diameter: 10 mm Weight: 1.8000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80221-1300-10	13	233	161	88	67	3.6000
Further informations Surface: powder-coated Diameter: 13 mm Weight: 3.6000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80221-1600-10	16	285	197	98	100	6.4000
Further informations Surface: powder-coated Diameter: 16 mm Weight: 6.4000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request

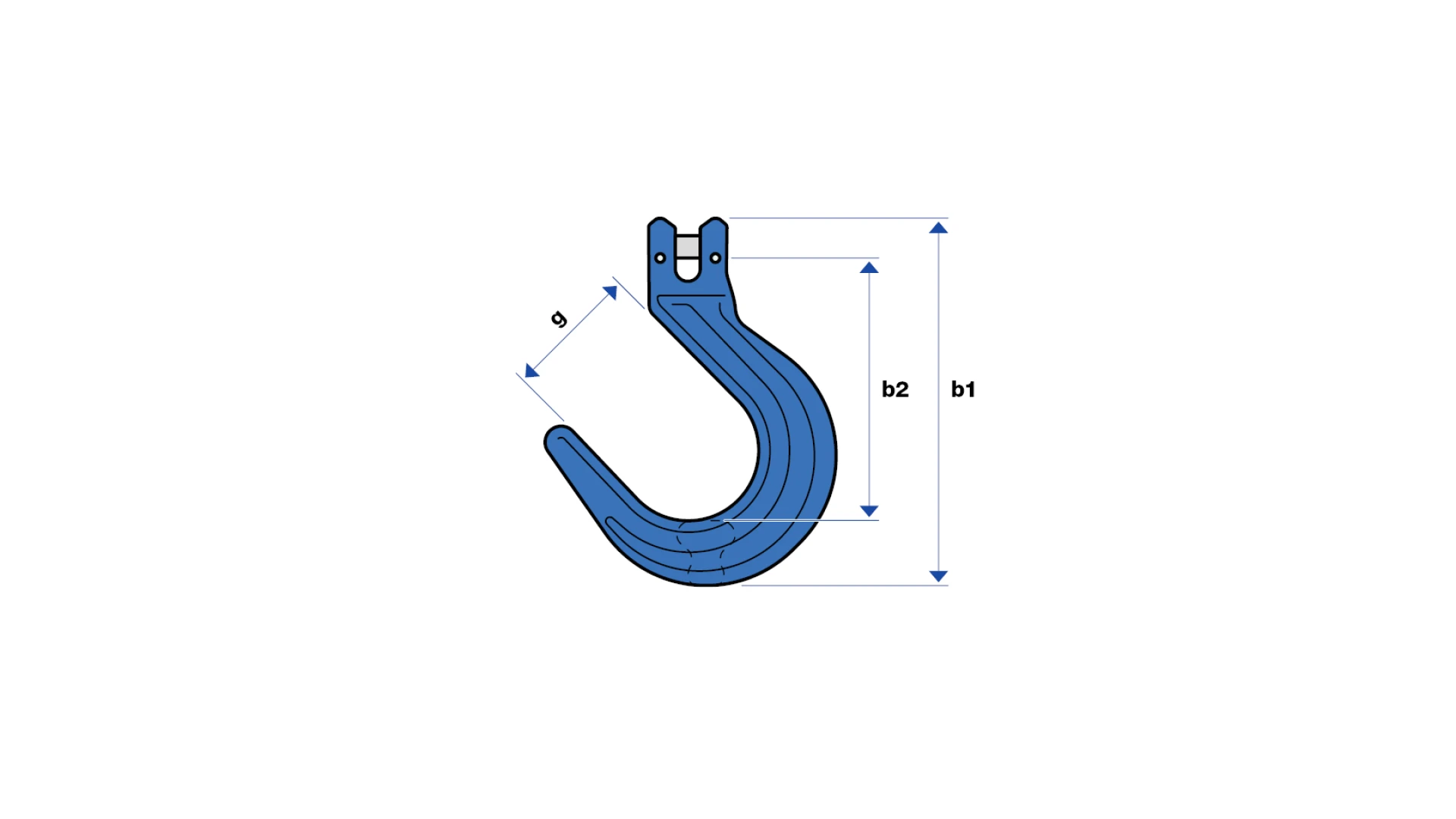

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
