Coupling link GK 10

제품 라인업 — Chains · Chains class 10 and accessories

Coupling link GK 10

No.	ø	b1	b2	b3	b4	k1	k2	r	WLL kN	kg
80390-0600-10	6	66	45	18	42	13	7	8	14	0.0800
Further informations Surface: powder-coated Diameter: 6 mm Weight: 0.0800 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80390-0780-10	7-8	77	59	24	50	16	9	11	25	0.2000
Further informations Surface: powder-coated Diameter: 7-8 mm Weight: 0.2000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80390-1000-10	10	87	69	26	68	19	11	12	40	0.3000
Further informations Surface: powder-coated Diameter: 10 mm Weight: 0.3000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80390-1300-10	13	124	97	37	85	26	16	16	67	0.7000
Further informations Surface: powder-coated Diameter: 13 mm Weight: 0.7000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80390-1600-10	16	139	101	41	97	26	19	20	100	1.2000
Further informations Surface: powder-coated Diameter: 16 mm Weight: 1.2000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request

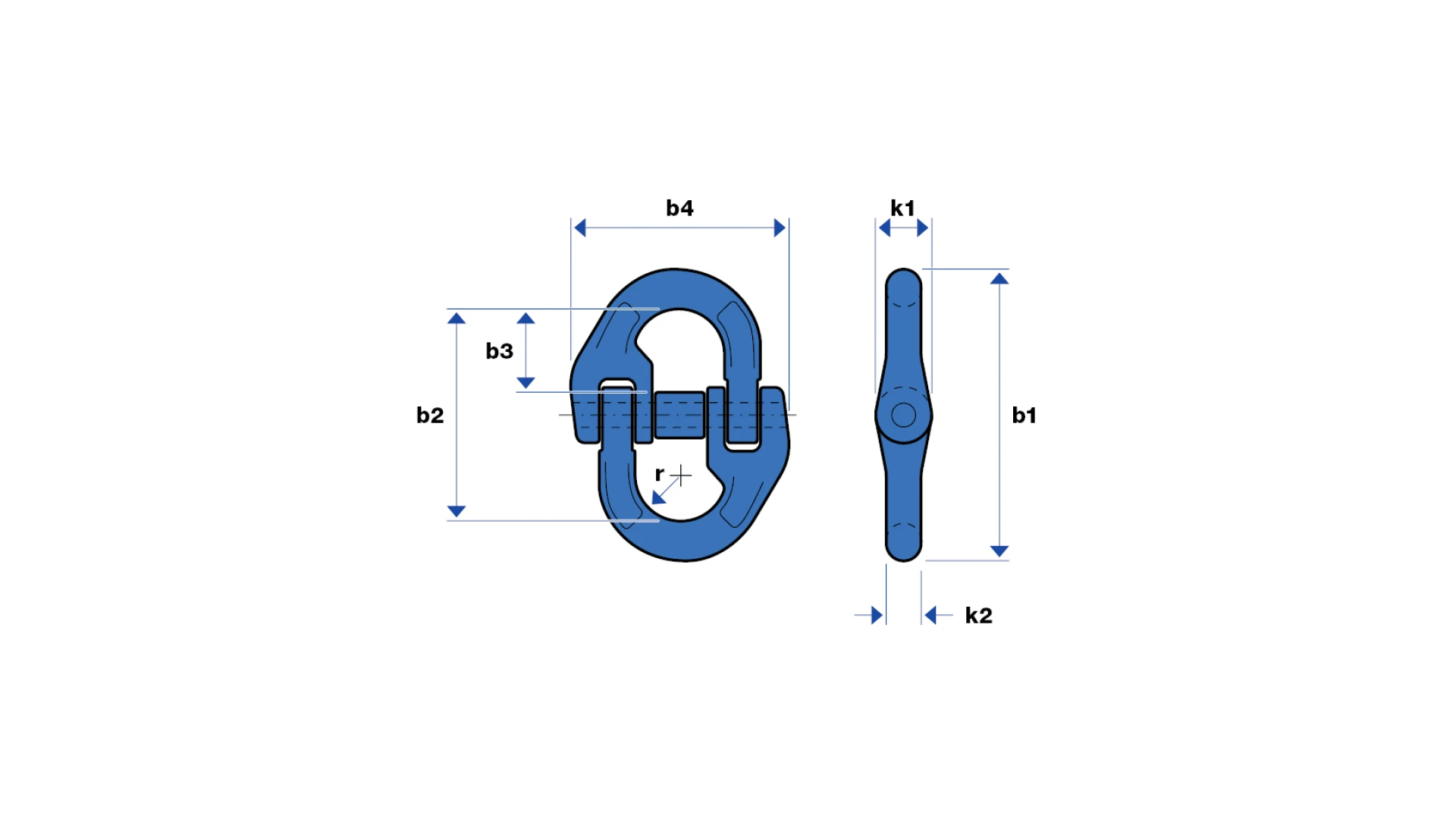

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
