High-strength chain GK 10

제품 라인업 — Chains · Chains class 10 and accessories

High-strength chain GK 10

No.	ø	b1	b2	WLL kN	kg
80100-0600-10	6	18	7.8	14	0.8000
Further informations Standard and Classification: EN 818 Surface: painted blue Diameter: 6 mm Weight: 0.8000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80100-0700-10	7	21	9.1	19	1.1000
Further informations Standard and Classification: EN 818 Surface: painted blue Diameter: 7 mm Weight: 1.1000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80100-0800-10	8	24	10.3	25	1.5000
Further informations Standard and Classification: EN 818 Surface: painted blue Diameter: 8 mm Weight: 1.5000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80100-1000-10	10	30	13.6	40	2.4000
Further informations Standard and Classification: EN 818 Surface: painted blue Diameter: 10 mm Weight: 2.4000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80100-1300-10	13	39	19.1	67	4.0000
Further informations Standard and Classification: EN 818 Surface: painted blue Diameter: 13 mm Weight: 4.0000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80100-1600-10	16	48	20.8	100	6.0000
Further informations Standard and Classification: EN 818 Surface: painted blue Diameter: 16 mm Weight: 6.0000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request

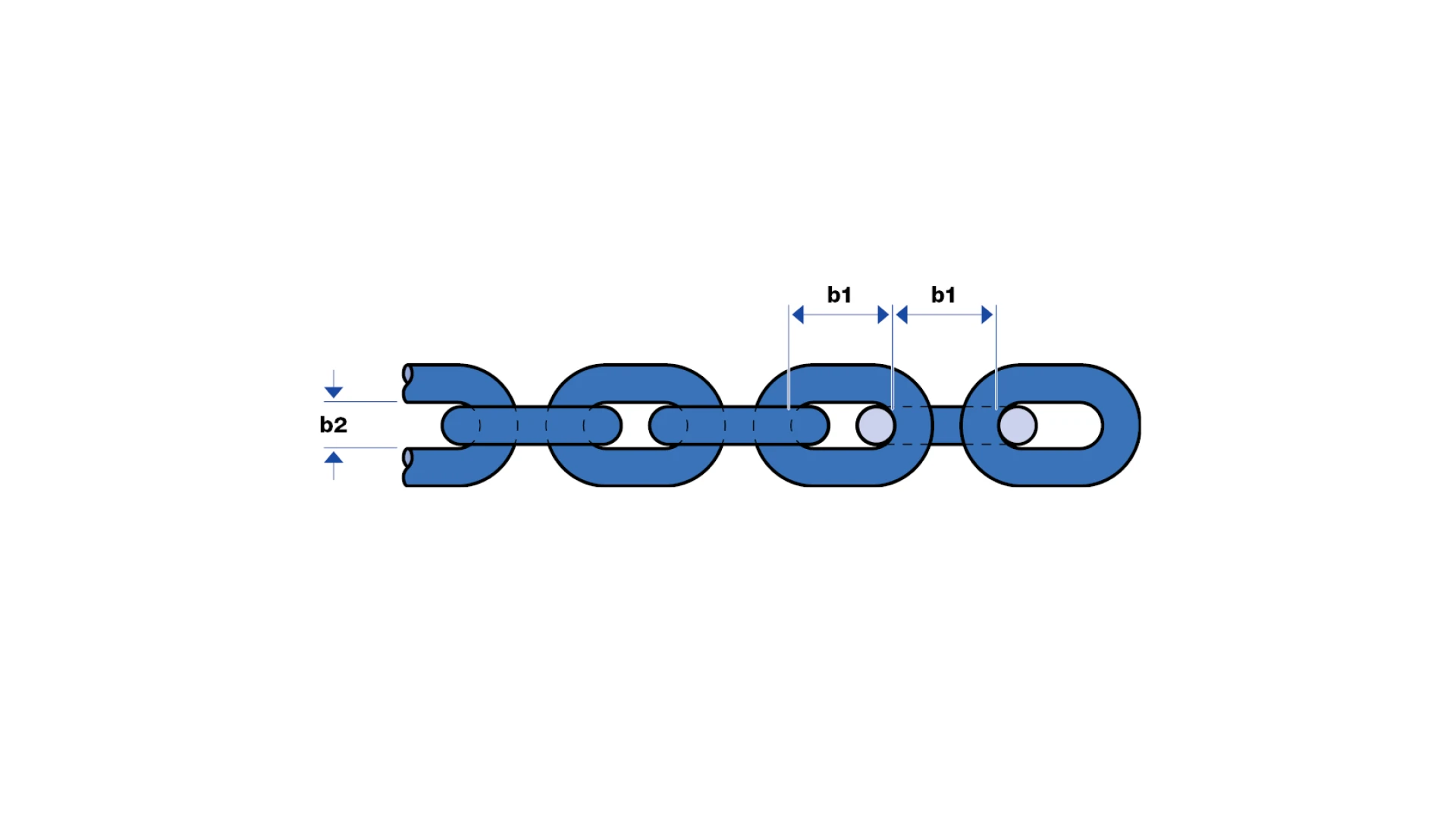

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
