Master link assembly GK 10

제품 라인업 — Chains · Chains class 10 and accessories

Master link assembly GK 10

No.	ø	b1	b2	b3	b4	b5	ø d1	ø d2	kg
80170-0670-10	6-7	189	135	75	54	25	18	13	1.1600
Further informations Surface: powder-coated Diameter: 6-7 mm Weight: 1.1600 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80170-0800-10	8	241	160	90	71	34	22	16	2.2000
Further informations Surface: powder-coated Diameter: 8 mm Weight: 2.2000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80170-1000-10	10	265	180	100	85	40	26	18.5	3.4000
Further informations Surface: powder-coated Diameter: 10 mm Weight: 3.4000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80170-1300-10	13	315	200	110	115	49	32	22	6.0000
Further informations Surface: powder-coated Diameter: 13 mm Weight: 6.0000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80170-1600-10	16	400	260	140	140	65	36	26	9.9500
Further informations Surface: powder-coated Diameter: 16 mm Weight: 9.9500 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request

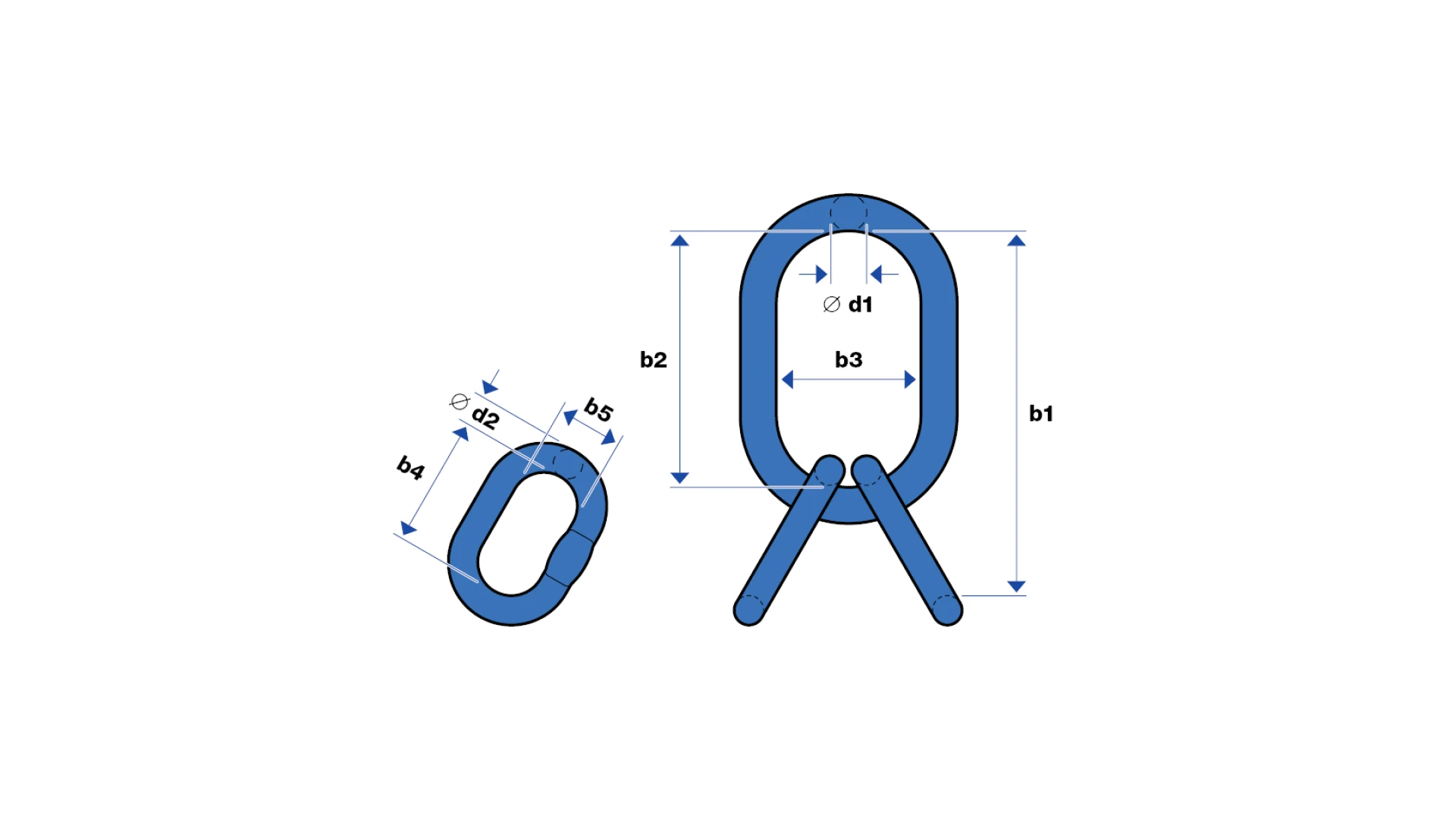

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
