Reevable link GK 10

제품 라인업 — Chains · Chains class 10 and accessories

Reevable link GK 10

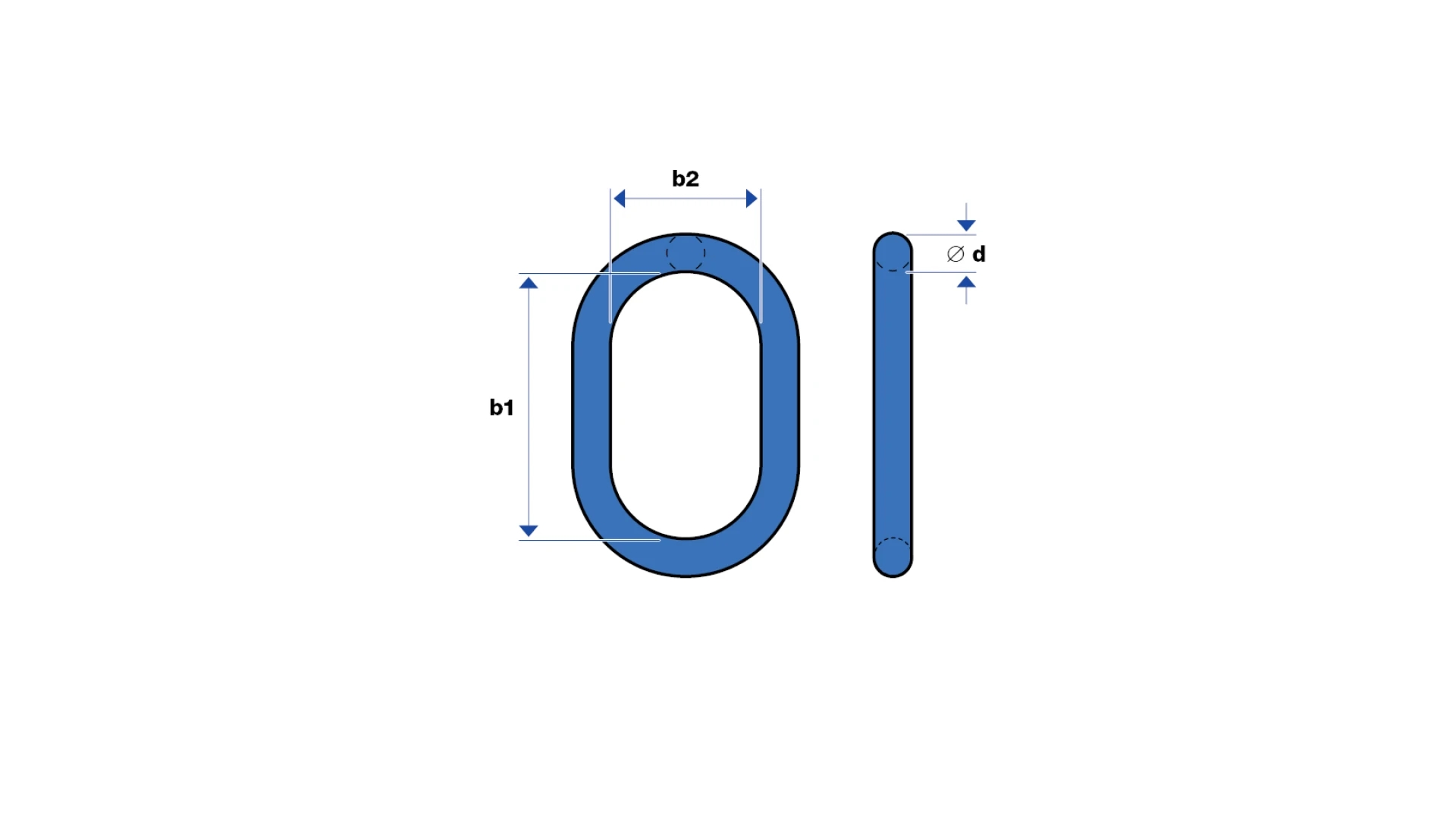

No.	ø	b1	b2	ø d	kg
80160-0076-10	6-7	110	60	16	0.3400
Further informations Surface: powder-coated Diameter: 6-7 mm Weight: 0.3400 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80160-0087-10	7-8	110	60	16	0.6000
Further informations Surface: powder-coated Diameter: 7-8 mm Weight: 0.6000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80160-0108-10	8-10	135	75	18	0.8000
Further informations Surface: powder-coated Diameter: 8-10 mm Weight: 0.8000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80160-1310-10	10-13	160	90	22	1.5000
Further informations Surface: powder-coated Diameter: 10-13 mm Weight: 1.5000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80160-1613-10	13-16	180	100	26	2.4000
Further informations Surface: powder-coated Diameter: 13-16 mm Weight: 2.4000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80160-1816-10	16-18	200	110	32	4.0000
Further informations Surface: powder-coated Diameter: 16-18 mm Weight: 4.0000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
