Safety hook with clevis GK 10

제품 라인업 — Chains · Chains class 10 and accessories

Safety hook with clevis GK 10

No.	ø	b1	b2	g	WLL kN	kg
80210-0600-10	6	136	93	28	14	0.5000
Further informations Surface: powder-coated Diameter: 6 mm Weight: 0.5000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80210-0780-10	7-8	165	119	34	25	0.9000
Further informations Surface: powder-coated Diameter: 7-8 mm Weight: 0.9000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80210-1000-10	10	210	146	45	40	1.4000
Further informations Surface: powder-coated Diameter: 10 mm Weight: 1.4000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80210-1300-10	13	257	184	55	67	3.0000
Further informations Surface: powder-coated Diameter: 13 mm Weight: 3.0000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80210-1600-10	16	299	213	60	100	5.8000
Further informations Surface: powder-coated Diameter: 16 mm Weight: 5.8000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request

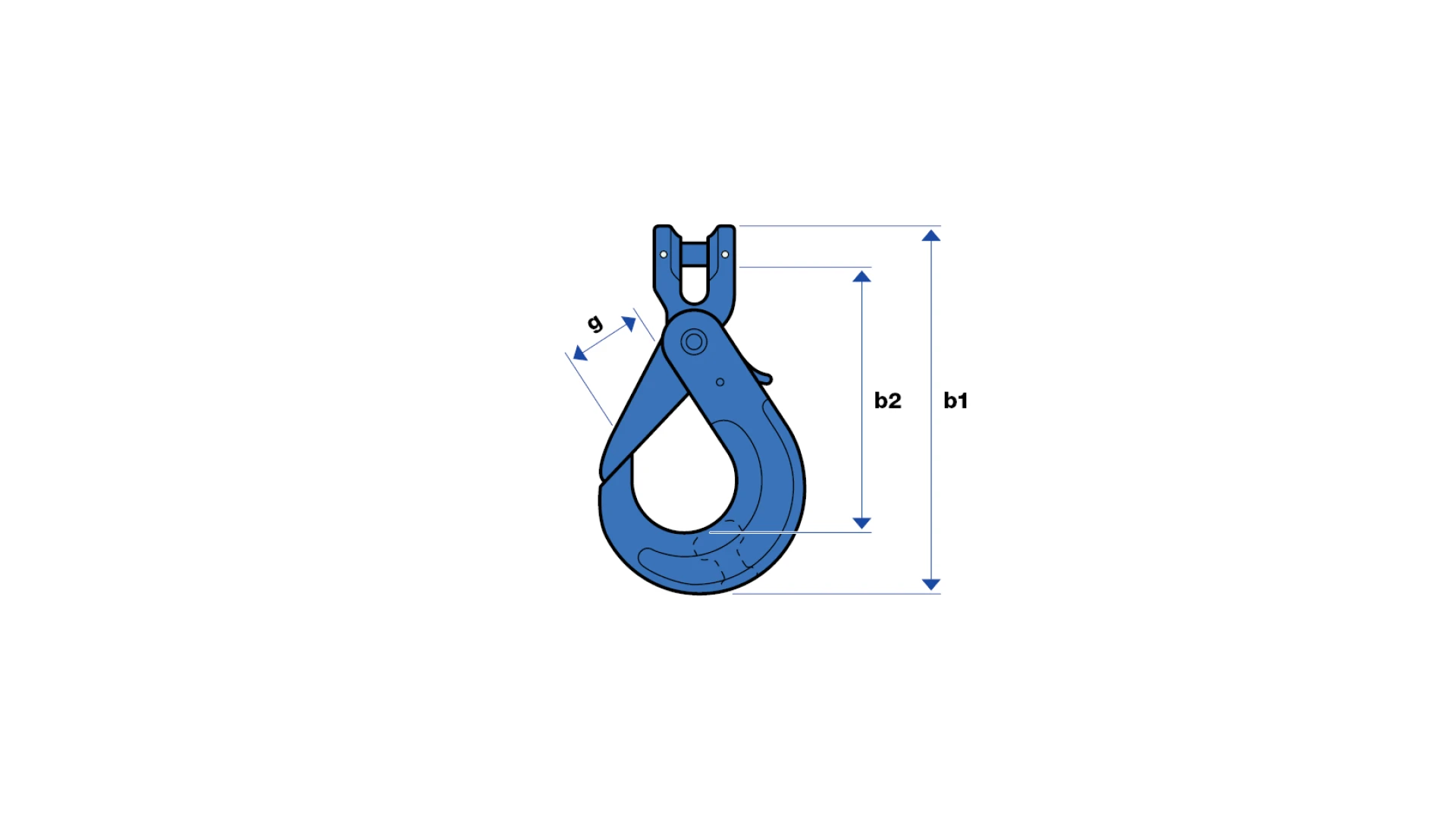

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
