Shortening clutch with clevis and safety latch type VKS GK 10

제품 라인업 — Chains · Chains class 10 and accessories

Shortening clutch with clevis and safety latch type VKS GK 10
No. ø b1 b2 b3 WLL kN kg
80310-0600-10 6 66 41 34 13.7 0.1970
80310-0800-10 7-8 88 55 45 24.5 0.5000
80310-1000-10 10 109 68 56 39.2 0.9950
80310-1300-10 13 143 89 73 65.6 2.0000

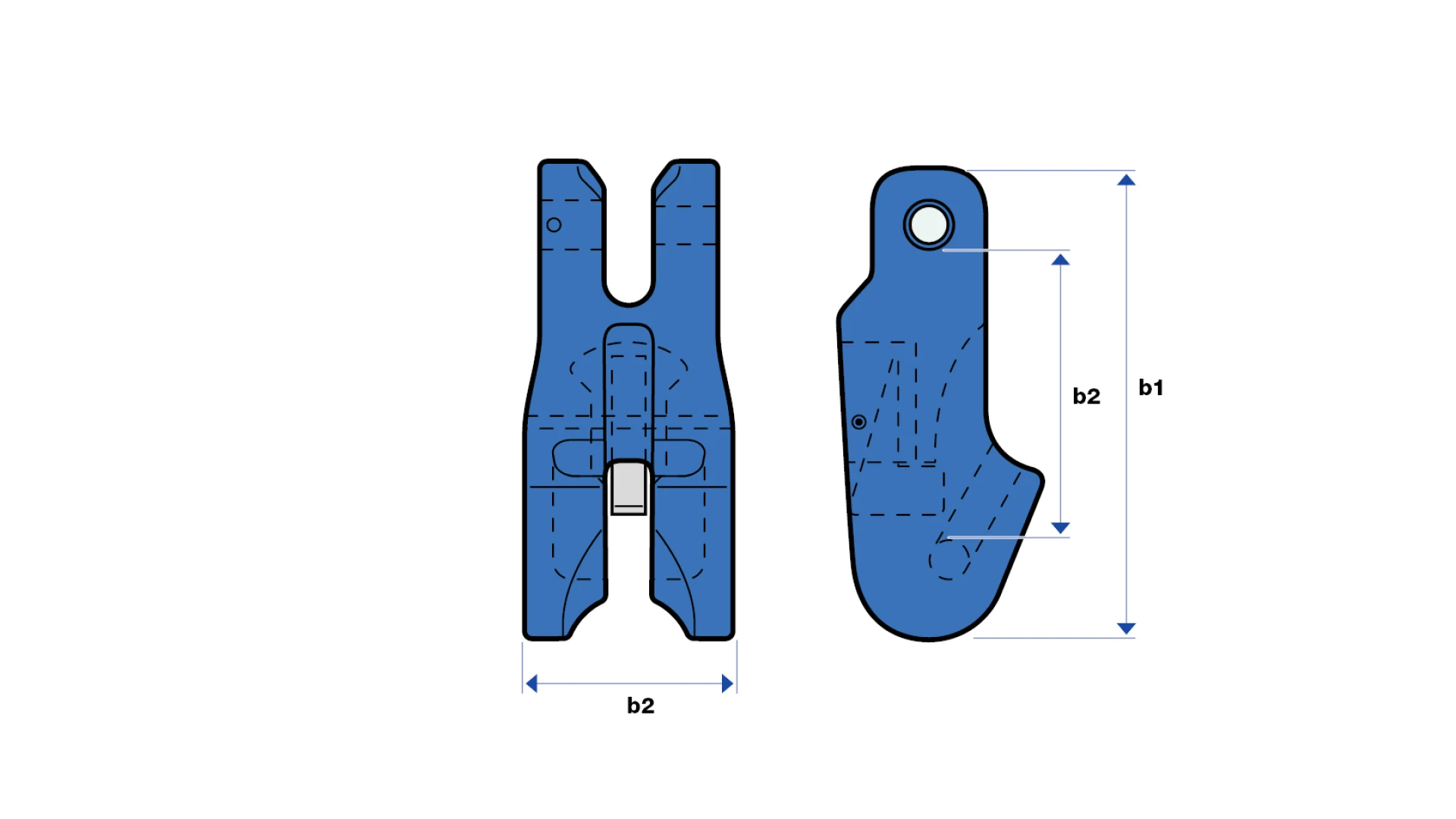

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
