Square-link pulling chain with suspension link, sling hook and shortening hook

제품 라인업 — Chains · Chains class 10 and accessories

Square-link pulling chain with suspension link, sling hook and shortening hook
No. ø L WLL kN kg
80261-0820-101 8 2 50 5.5000
80261-0825-101 8 2.5 50 6.5000
80261-0830-101 8 3 50 7.5000
80261-0840-101 8 4 50 9.5000
80261-0850-101 8 5 50 11.5000
80261-1020-101 10 2 80 5.2000
80261-1025-101 10 2.5 80 5.2000
80261-1030-101 10 3 80 5.2000
80261-1040-101 10 4 80 5.2000
80261-1050-101 10 5 80 5.2000

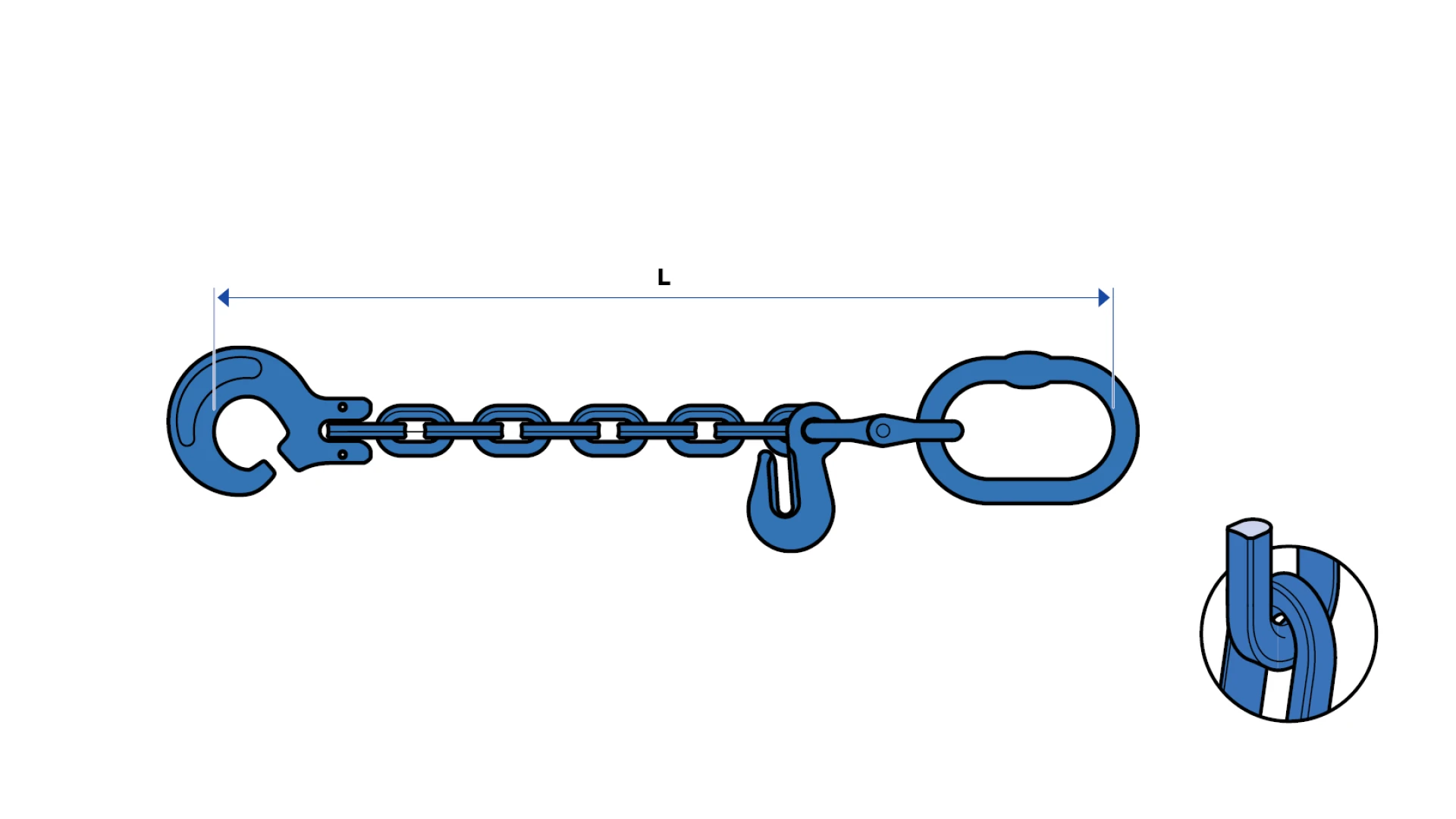

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
