Chain-shortening hook with eye end GK 8

제품 라인업 — Chains · Chains class 8 and accessories

Chain-shortening hook with eye end GK 8

No.	ø	b1	b2	g	ø d1	ø d2	WLL kN	kg
80340-0600	6	81	60	7	15	8	11.2	0.2000
Further informations Surface: painted Diameter: 6 mm Weight: 0.2000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80340-0780	7-8	102	60	9	15	12	20	0.3000
Further informations Surface: painted Diameter: 7-8 mm Weight: 0.3000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80340-1000	10	124	80	11	19	11	31.5	0.6000
Further informations Surface: painted Diameter: 10 mm Weight: 0.6000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80340-1300	13	157	101	16	25	17	53	1.4000
Further informations Surface: painted Diameter: 13 mm Weight: 1.4000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80340-1600	16	198	128	18	30	20	80	2.6000
Further informations Surface: painted Diameter: 16 mm Weight: 2.6000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request

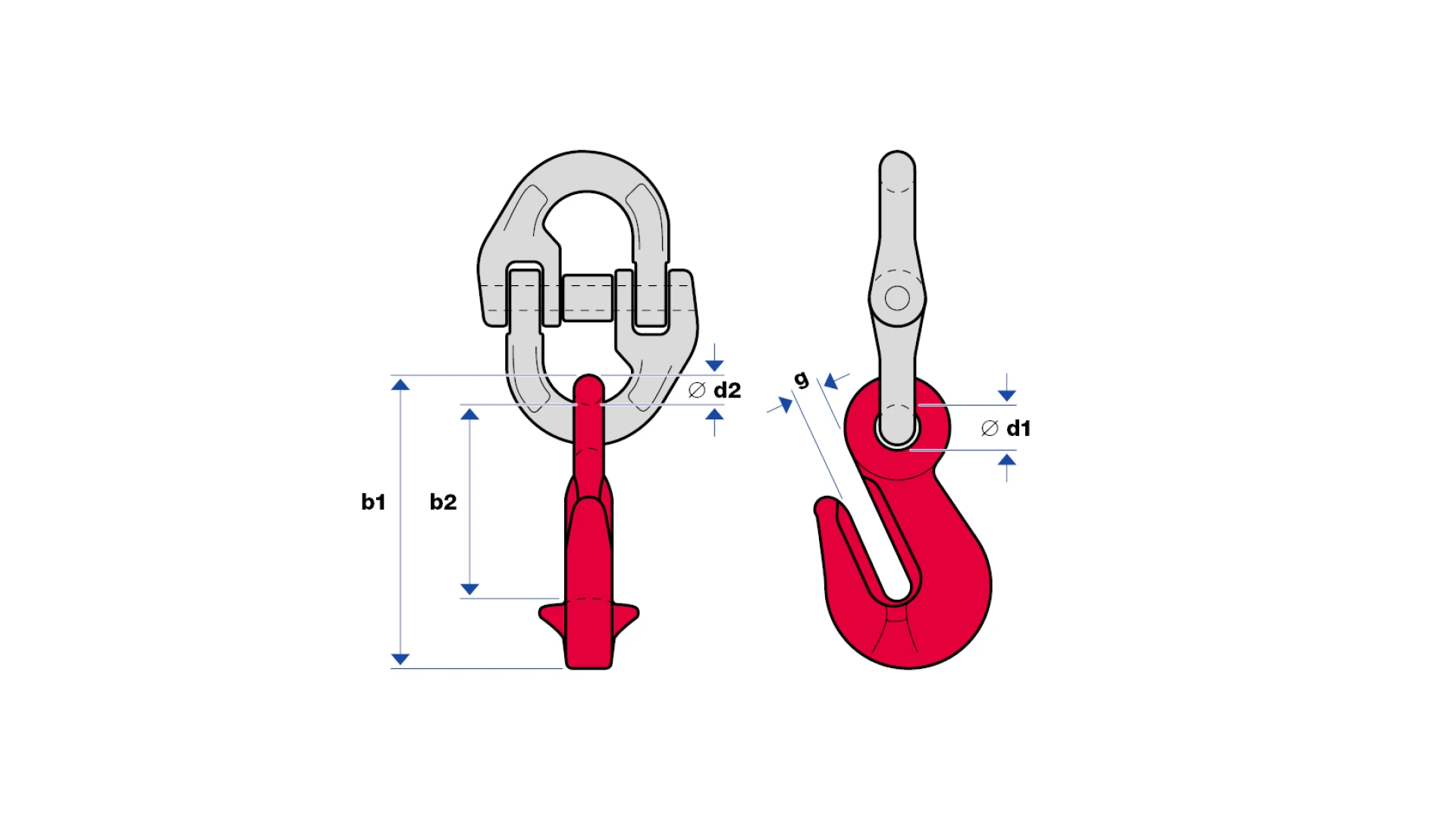

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
