Clevis sling hook GK 8

제품 라인업 — Chains · Chains class 8 and accessories

Clevis sling hook GK 8

No.	ø	b1	b2	b3	g	WLL kN	kg
80200-0600	6	126	79	18	23	11.2	0.6000
Further informations Diameter: 6 mm Weight: 0.6000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80200-0780	7-8	143	98	22	27	20	0.8000
Further informations Diameter: 7-8 mm Weight: 0.8000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80200-1000	10	177	121	29	34	31.5	1.6000
Further informations Diameter: 10 mm Weight: 1.6000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80200-1300	13	226	147	37	44	53	3.5000
Further informations Diameter: 13 mm Weight: 3.5000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80200-1600	16	261	166	42	48	80	5.0000
Further informations Diameter: 16 mm Weight: 5.0000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request

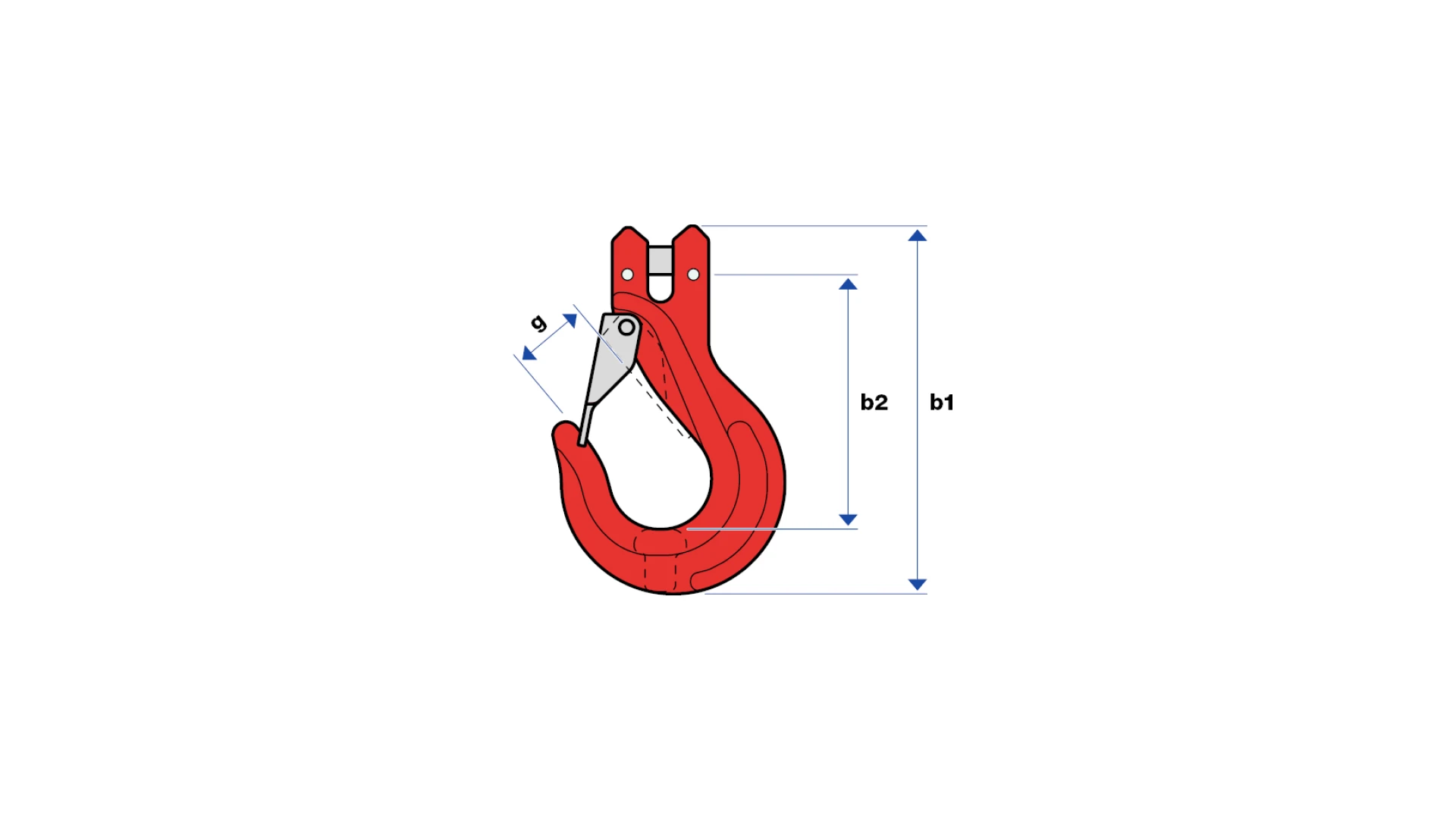

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
