Coupling link GK 8

제품 라인업 — Chains · Chains class 8 and accessories

Coupling link GK 8

No.	ø	b1	b2	b3	b4	k1	k2	r	WLL kN	kg
80390-0600	6	60	46	18	42	13	7	8	11.2	0.1000
Further informations Diameter: 6 mm Weight: 0.1000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80390-0780	7-8	76	58	24	50	16	9	11	20	0.1000
Further informations Diameter: 7-8 mm Weight: 0.1000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80390-1000	10	96	69	26	68	19	11	12	31.5	0.3000
Further informations Diameter: 10 mm Weight: 0.3000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80390-1300	13	125	91	37	85	26	16	16	53	0.7000
Further informations Diameter: 13 mm Weight: 0.7000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80390-1600	16	139	102	40	97	26	19	20	80	1.1000
Further informations Diameter: 16 mm Weight: 1.1000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request

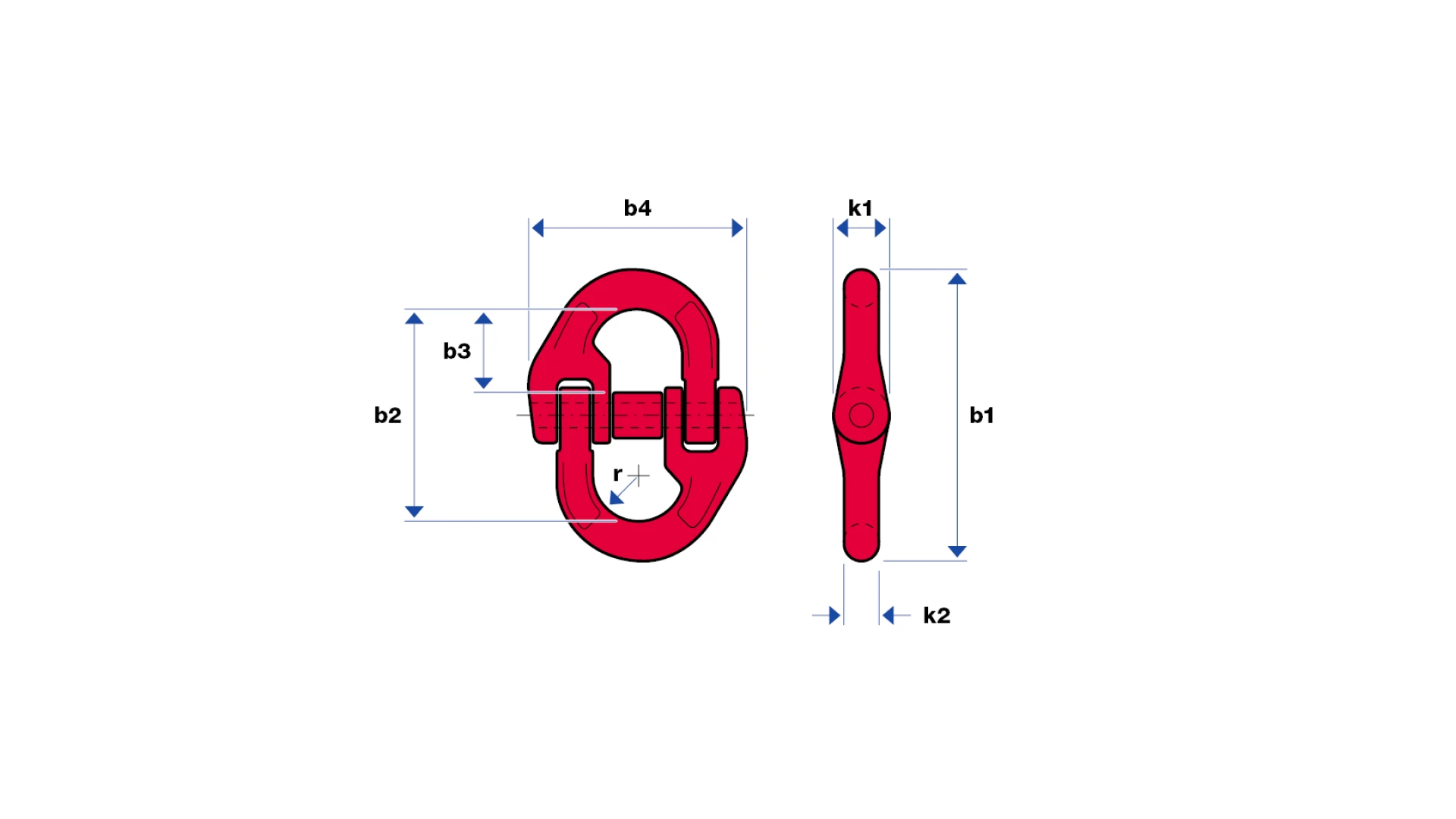

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
