End link GK 8

No.	ø	b1	b2	ø d	WLL kN	kg
80180-0600	6	60	30	13	11.2	0.2000
Further informations Standard and Classification: DIN 5688-3/DIN 1677 Surface: painted Diameter: 6 mm Weight: 0.2000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80180-0800	8	70	35	16	20	0.4000
Further informations Standard and Classification: DIN 5688-3/DIN 1677 Surface: painted Diameter: 8 mm Weight: 0.4000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80180-1000	10	90	45	20	31,5	0.5000
Further informations Standard and Classification: DIN 5688-3/DIN 1677 Surface: painted Diameter: 10 mm Weight: 0.5000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80180-1300	13	120	60	26	53,0	1.1000
Further informations Standard and Classification: DIN 5688-3/DIN 1677 Surface: painted Diameter: 13 mm Weight: 1.1000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80180-1600	16	130	65	28	80,0	1.8000
Further informations Standard and Classification: DIN 5688-3/DIN 1677 Surface: painted Diameter: 16 mm Weight: 1.8000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request

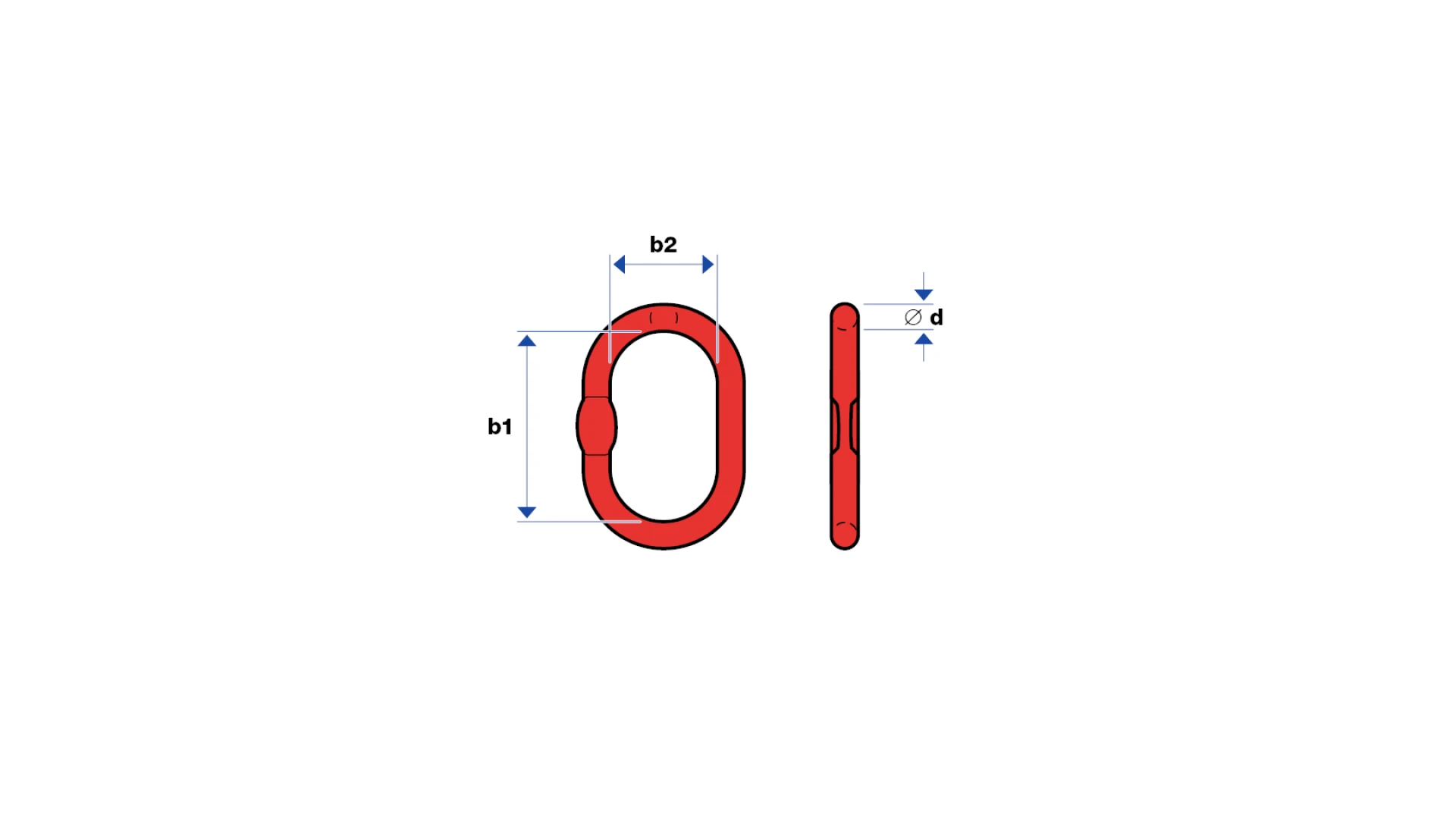

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
