High-strength chain GK 8

제품 라인업 — Chains · Chains class 8 and accessories

High-strength chain GK 8

No.	ø	b1	b2	WLL kN	kg
80100-0600	6	18	8	11.2	0.8000
Further informations Standard and Classification: EN 818 Surface: with long-term corrosion protection Diameter: 6 mm Weight: 0.8000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80100-0700	7	21	10.5	15	1.1000
Further informations Standard and Classification: EN 818 Surface: with long-term corrosion protection Diameter: 7 mm Weight: 1.1000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80100-0800	8	24	10.8	20	1.5000
Further informations Standard and Classification: EN 818 Surface: with long-term corrosion protection Diameter: 8 mm Weight: 1.5000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80100-1000	10	30	13.5	31.5	2.3000
Further informations Standard and Classification: EN 818 Surface: with long-term corrosion protection Diameter: 10 mm Weight: 2.3000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80100-1300	13	39	17.5	53	3.8000
Further informations Standard and Classification: EN 818 Surface: with long-term corrosion protection Diameter: 13 mm Weight: 3.8000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80100-1600	16	48	21.5	80	5.7000
Further informations Standard and Classification: EN 818 Surface: with long-term corrosion protection Diameter: 16 mm Weight: 5.7000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request

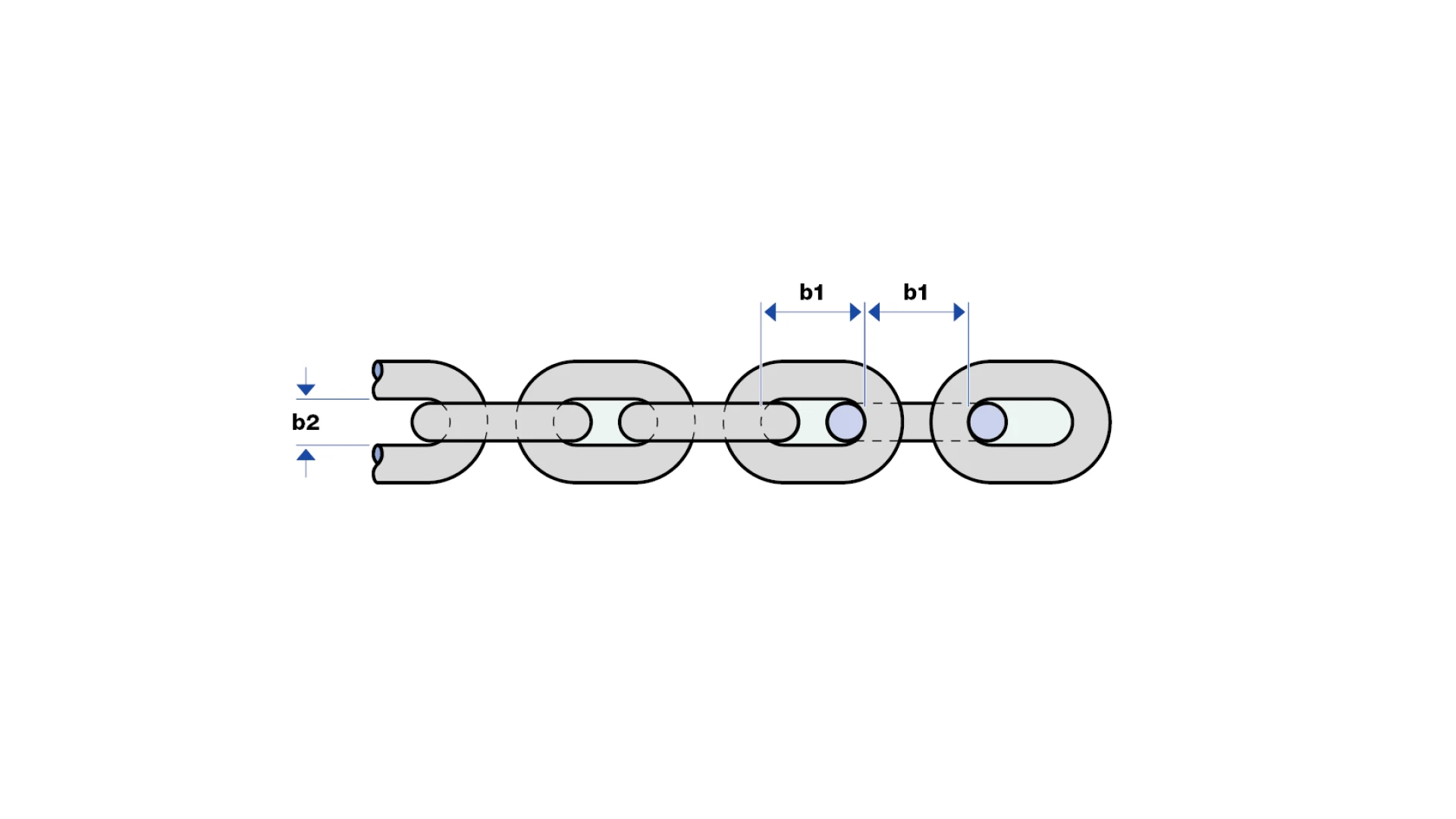

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
