Master link assembly GK 8

제품 라인업 — Chains · Chains class 8 and accessories

Master link assembly GK 8

No.	ø	b1	b2	b3	b4	b5	ø d1	ø d2	kg
80170-0670	6-7	189	130	70	60	30	18	13	1.2000
Further informations Standard and Classification: DIN 5688-3/DIN 1677 Surface: painted Diameter: 6-7 mm Weight: 1.2000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80170-0800	8	210	140	80	70	35	20	16	1.8000
Further informations Standard and Classification: DIN 5688-3/DIN 1677 Surface: painted Diameter: 8 mm Weight: 1.8000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80170-1000	10	270	180	100	90	45	26	20	3.6000
Further informations Standard and Classification: DIN 5688-3/DIN 1677 Surface: painted Diameter: 10 mm Weight: 3.6000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80170-1300	13	350	230	125	120	62	32	26	7.6000
Further informations Standard and Classification: DIN 5688-3/DIN 1677 Surface: painted Diameter: 13 mm Weight: 7.6000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80170-1600	16	420	290	160	130	65	40	28	12.6000
Further informations Standard and Classification: DIN 5688-3/DIN 1677 Surface: painted Diameter: 16 mm Weight: 12.6000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request

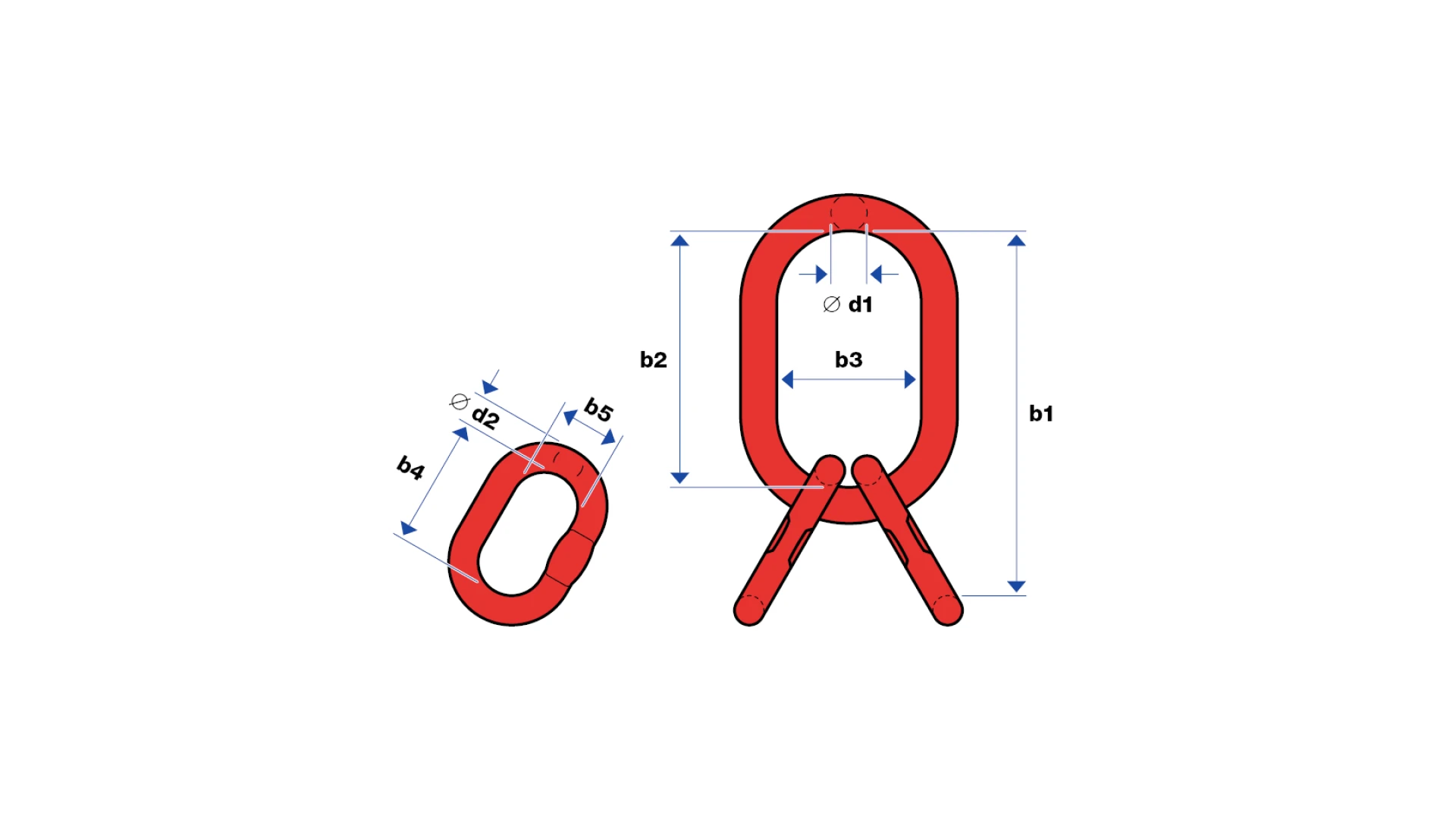

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
