Reevable link GK 8

제품 라인업 — Chains · Chains class 8 and accessories

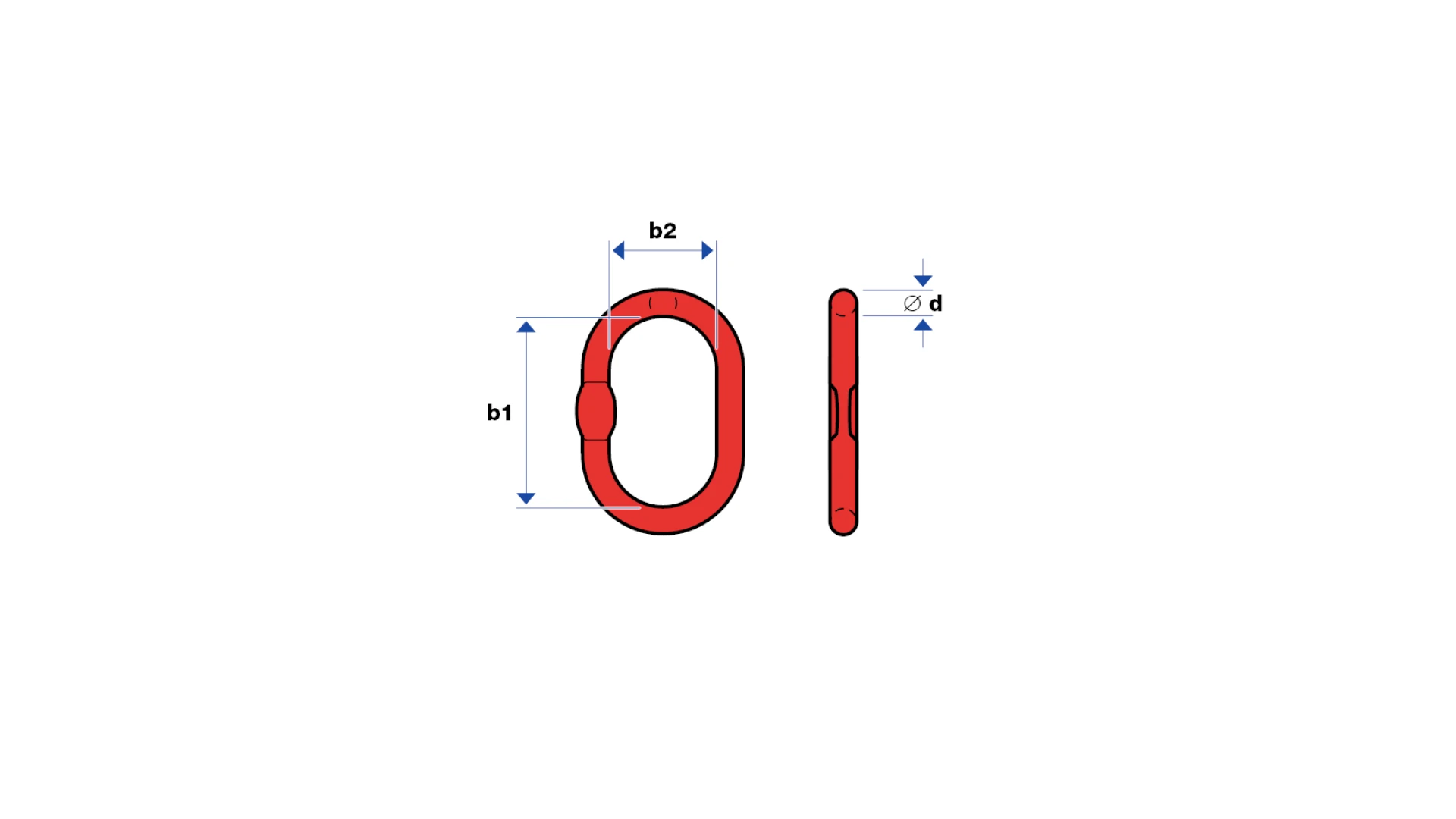

Reevable link GK 8

No.	ø	b1	b2	ø d	kg
80160-0076	6-7	90	50	13	0.3000
Further informations Standard and Classification: DIN 5688-3/DIN 1677 Surface: painted Diameter: 6-7 mm Weight: 0.3000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80160-0087	7-8	110	60	16	0.5000
Further informations Standard and Classification: DIN 5688-3/DIN 1677 Surface: painted Diameter: 7-8 mm Weight: 0.5000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80160-0108	8-10	130	70	18	0.8000
Further informations Standard and Classification: DIN 5688-3/DIN 1677 Surface: painted Diameter: 8-10 mm Weight: 0.8000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80160-1310	10-13	160	90	22	1.5000
Further informations Standard and Classification: DIN 5688-3/DIN 1677 Surface: painted Diameter: 10-13 mm Weight: 1.5000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80160-1613	13-16	180	100	26	2.3000
Further informations Standard and Classification: DIN 5688-3/DIN 1677 Surface: painted Diameter: 13-16 mm Weight: 2.3000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80160-1816	16-18	230	125	32	3.9000
Further informations Standard and Classification: DIN 5688-3/DIN 1677 Surface: painted Diameter: 16-18 mm Weight: 3.9000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
