Reevable link with clevis GK 8

제품 라인업 — Chains · Chains class 8 and accessories

Reevable link with clevis GK 8

No.	ø	b1	b2	b3	k	ø d	WLL kN	kg
80150-0600	6	160	102	60	18	13	11.2	0.5000
Further informations Surface: painted Diameter: 6 mm Weight: 0.5000 kg Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80150-0700	7	164	102	60	21	15	15	0.6000
Further informations Surface: painted Diameter: 7 mm Weight: 0.6000 kg Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80150-0800	8	172	105	60	23	16	20	0.7000
Further informations Surface: painted Diameter: 8 mm Weight: 0.7000 kg Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80150-1000	10	207	127	75	25	18	31.5	1.1000
Further informations Surface: painted Diameter: 10 mm Weight: 1.1000 kg Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80150-1300	13	254	150	90	35	22	53	2.1000
Further informations Surface: painted Diameter: 13 mm Weight: 2.1000 kg Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80150-1600	16	292	165	100	41	26	80	3.6000
Further informations Surface: painted Diameter: 16 mm Weight: 3.6000 kg Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request

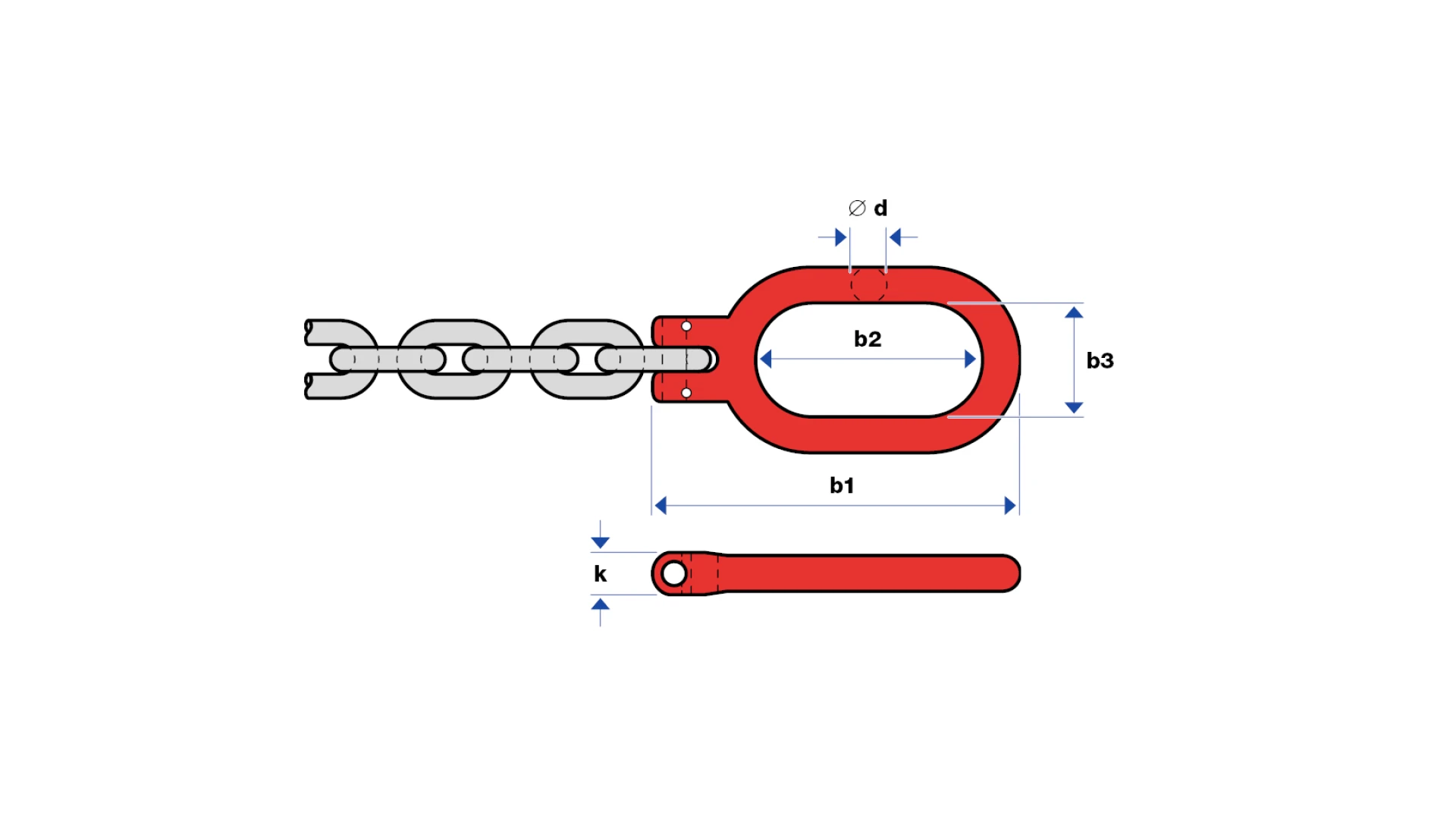

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
