Safety hook with clevis GK 8

제품 라인업 — Chains · Chains class 8 and accessories

Safety hook with clevis GK 8

No.	ø	b1	b2	b3	g	WLL kN	kg
80210-0600	6	136	100	19	29	11.2	0.5000
Further informations Diameter: 6 mm Weight: 0.5000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80210-0780	7-8	165	119	24	34	20	0.8000
Further informations Diameter: 7-8 mm Weight: 0.8000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80210-1000	10	210	143	30	44	31.5	1.5000
Further informations Diameter: 10 mm Weight: 1.5000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80210-1300	13	257	179	39	52	53	2.9000
Further informations Diameter: 13 mm Weight: 2.9000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request

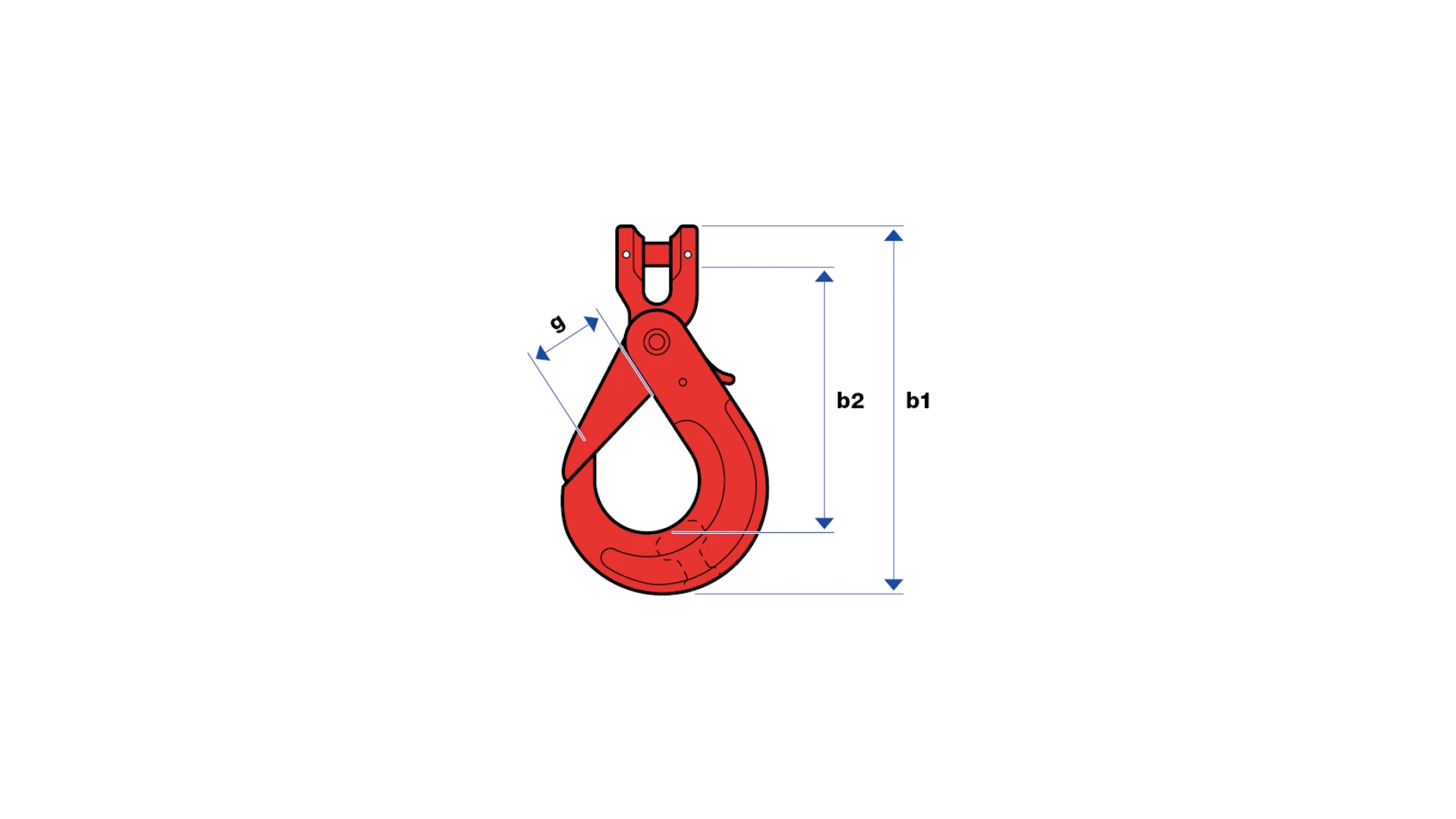

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
