Shortening hook with clevis GK 8

제품 라인업 — Chains · Chains class 8 and accessories

Shortening hook with clevis GK 8

No.	ø	b1	b2	g	WLL kN	kg
80330-0780	7-8	100	50	9	20	0.4000
Further informations Diameter: 7-8 mm Weight: 0.4000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80330-1000	10	128	72	11	31.5	0.8000
Further informations Diameter: 10 mm Weight: 0.8000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80330-1300	13	155	88	16	53	1.5000
Further informations Diameter: 13 mm Weight: 1.5000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80330-1600	16	195	111	18	80	2.5000
Further informations Diameter: 16 mm Weight: 2.5000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request

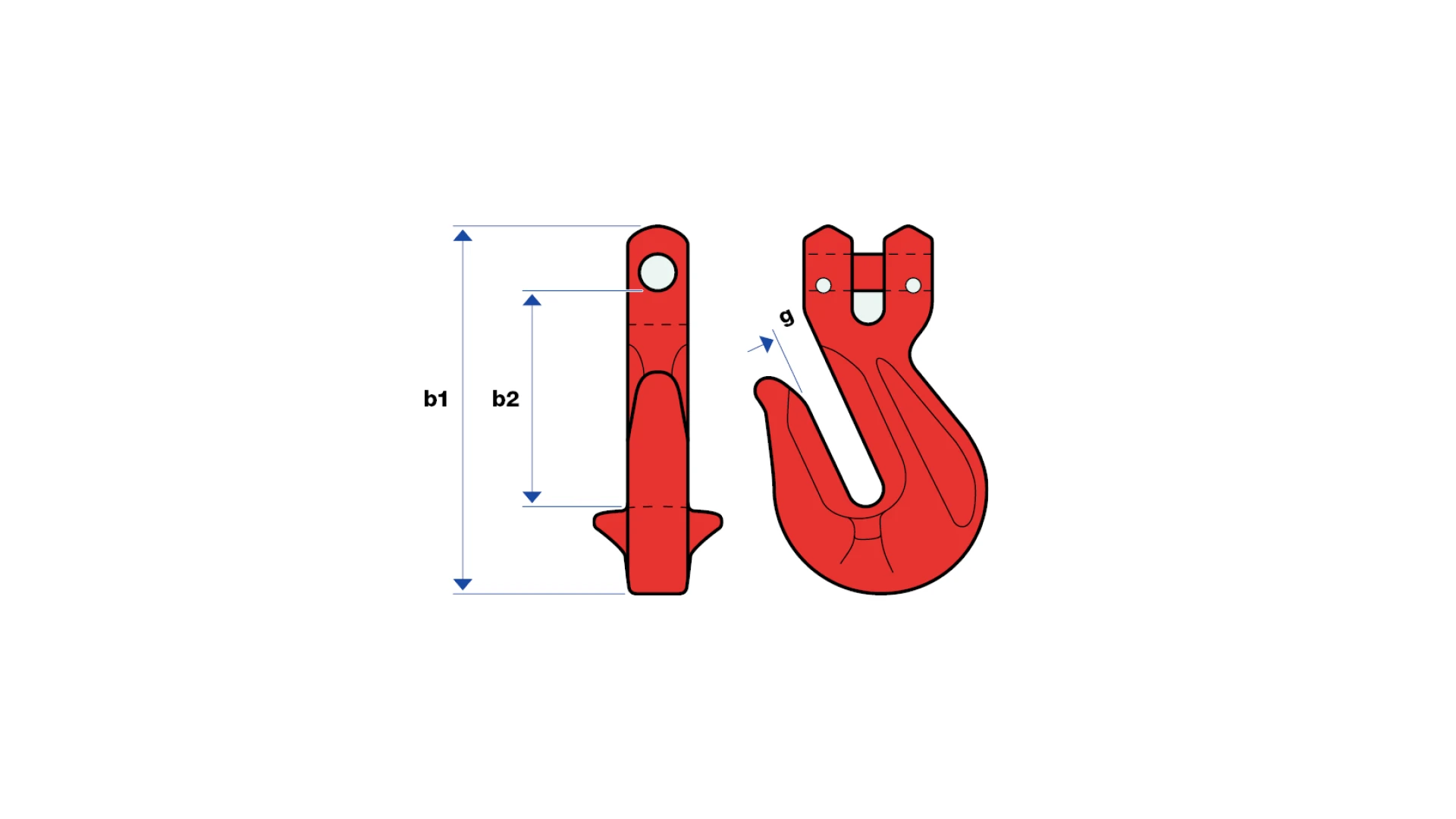

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
