HOME / PRODUCT / ROPE AND LIFTING TECHNOLOGY / CHAINS / LASHING CHAINS / Binder chain with clevis sling hook on both ends GK 8

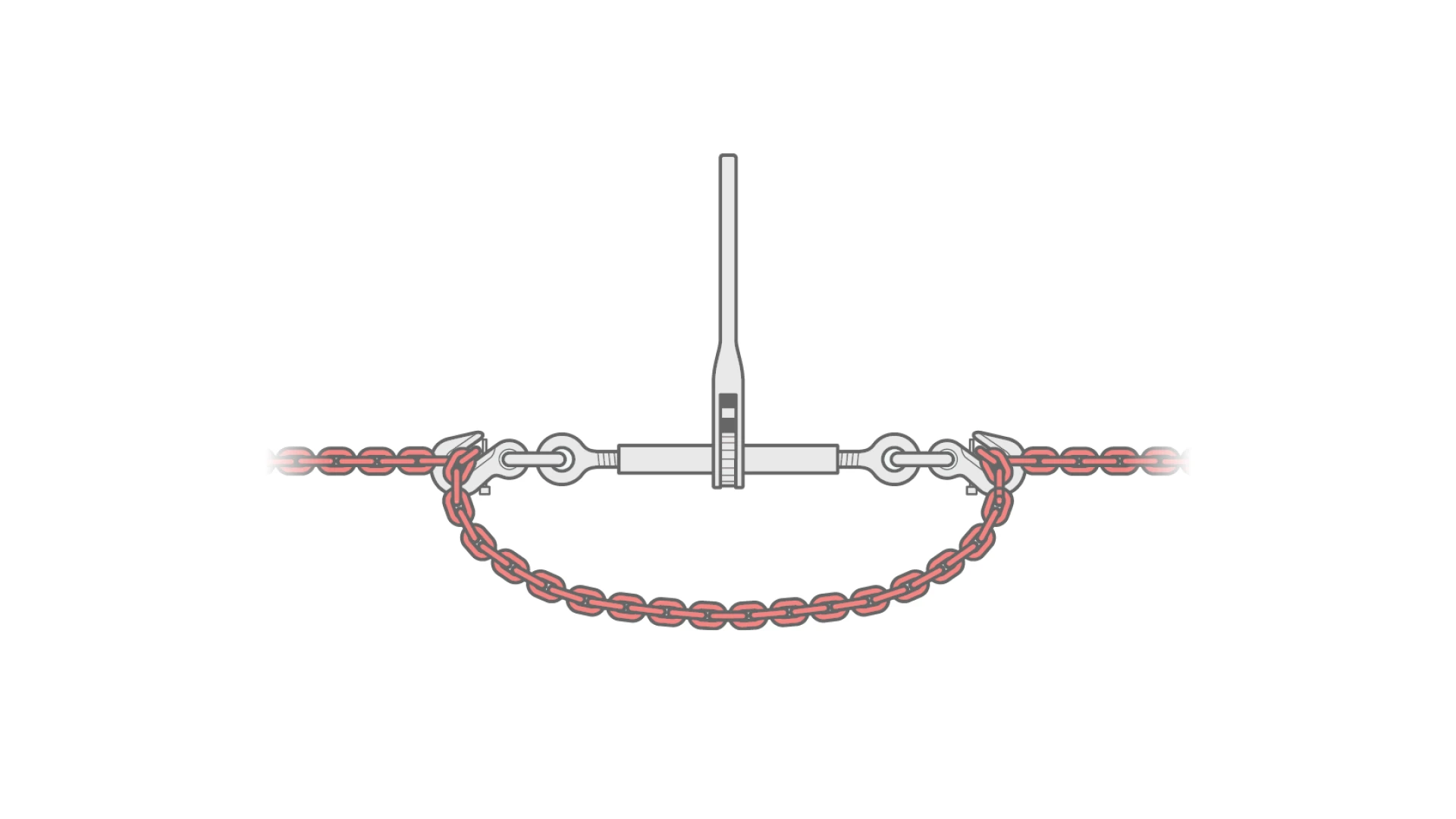

Binder chain with clevis sling hook on both ends GK 8

제품 라인업 — Chains · Lashing chains

No.	ø	L	WLL kN	kg
80401-0800	8	6	40	10.6000
Further informations Standard and Classification: EN 818 Surface: coated SP 100 Diameter: 8 mm Weight: 10.6000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80401-1000	10	6	63	17.0000
Further informations Standard and Classification: EN 818 Surface: coated SP 100 Diameter: 10 mm Weight: 17.0000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request
80401-1300	13	6	100	29.8000
Further informations Standard and Classification: EN 818 Surface: coated SP 100 Diameter: 13 mm Weight: 29.8000 kg Material group: steel Nominal strength (Mat. strength): class 8 Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.
