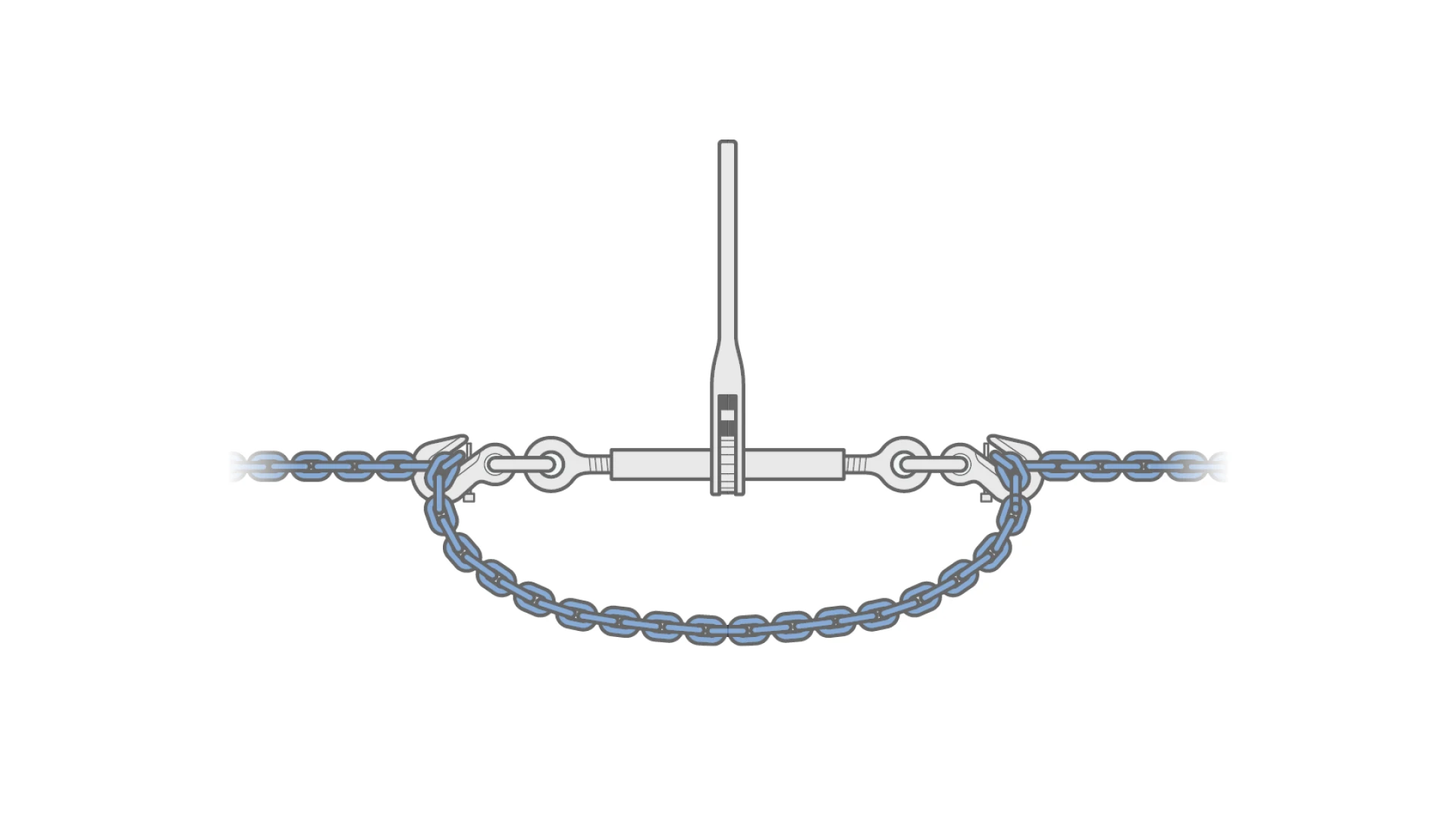

Binder chain with safety hook on both ends GK 10

제품 라인업 — Chains · Lashing chains

Binder chain with safety hook on both ends GK 10

No.	ø	L	WLL kN	kg
80401-0800-101	8	6	50	10.8000
Further informations Standard and Classification: EN 818 Surface: painted Color: blue Diameter: 8 mm Weight: 10.8000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80401-1000-101	10	6	80	17.2000
Further informations Standard and Classification: EN 818 Surface: painted Color: blue Diameter: 10 mm Weight: 17.2000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request
80401-1300-101	13	6	130	30.0000
Further informations Standard and Classification: EN 818 Surface: painted Color: blue Diameter: 13 mm Weight: 30.0000 kg Material group: steel Nominal strength (Mat. strength): class 10 Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
