제품 라인업 — Chains · Lashing chains
| No. | ø | b1 | b2 | g | ø d1 | ø d2 | WLL kN | kg | |
|---|---|---|---|---|---|---|---|---|---|
| 80402-0780-10 | 7-8 | 110 | 66 | 9 | 16 | 12 | 25 | 0.3840 | |
Further informations
Price basis / tiered pricesPrice on request |
|||||||||
| 80402-1000-10 | 10 | 130 | 84 | 12 | 21 | 14 | 40 | 0.7140 | |
Further informations
Price basis / tiered pricesPrice on request |
|||||||||
| 80402-1300-10 | 13 | 165 | 110 | 15 | 27 | 17 | 67 | 1.4000 | |
Further informations
Price basis / tiered pricesPrice on request |
|||||||||

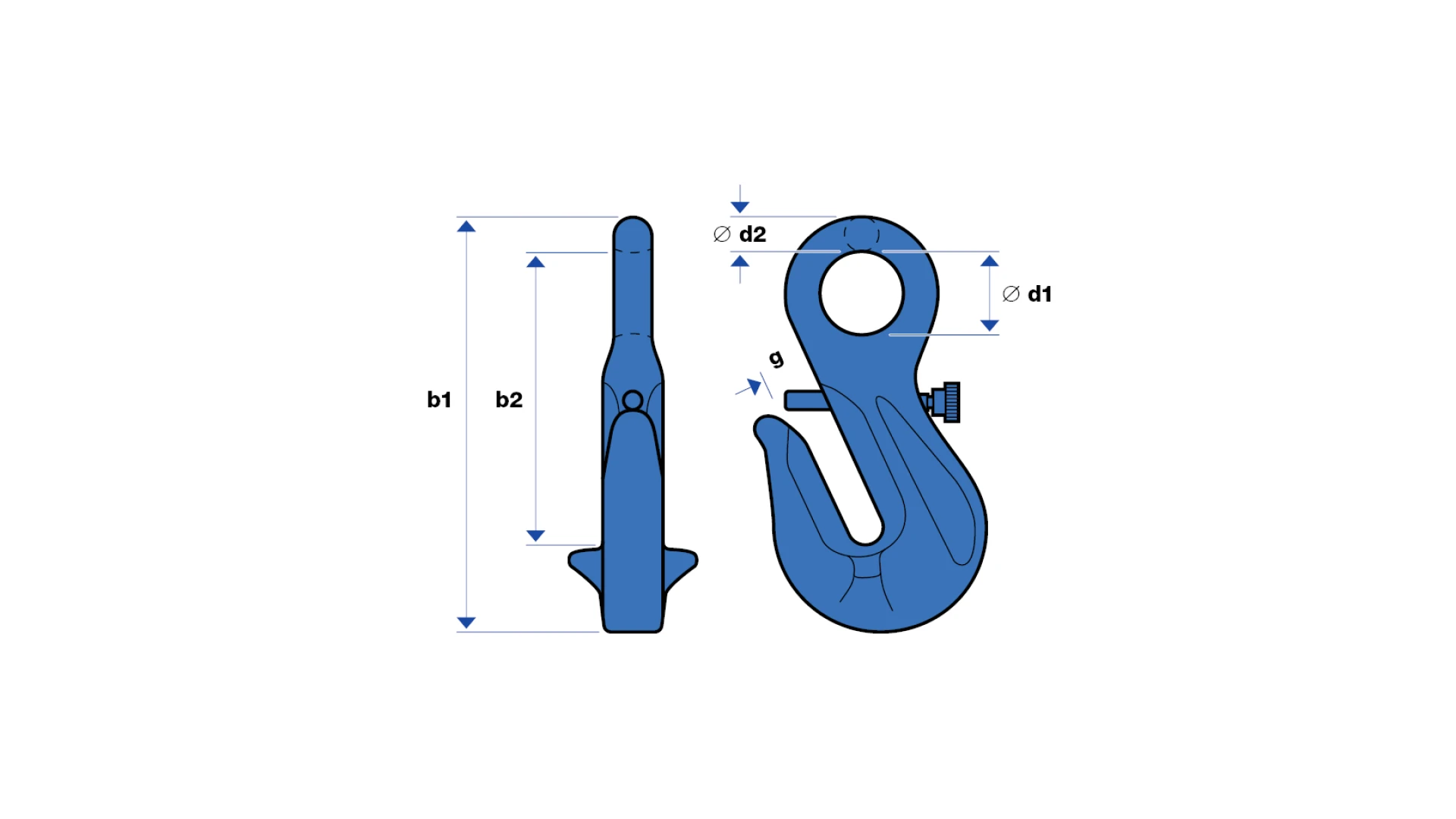

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.
