제품 라인업 — Chains · Stainless steel round chains
| No. | ø | b1 | b2 | WLL kN | kg | |
|---|---|---|---|---|---|---|
| 80810-0200 | 2 | 12 | 3 | 0.2 | 0.0700 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||
| 80810-0300 | 3 | 16 | 5 | 0.45 | 0.1600 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||
| 80810-0400 | 4 | 16 | 5 | 2.45 | 0.3200 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||
| 80810-0500 | 5 | 18.5 | 7 | 3..93 | 0.5600 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||
| 80810-0600 | 6 | 18.5 | 8 | 5.4 | 0.7400 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||
| 80810-0800 | 8 | 24 | 10 | 9.81 | 1.3000 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||

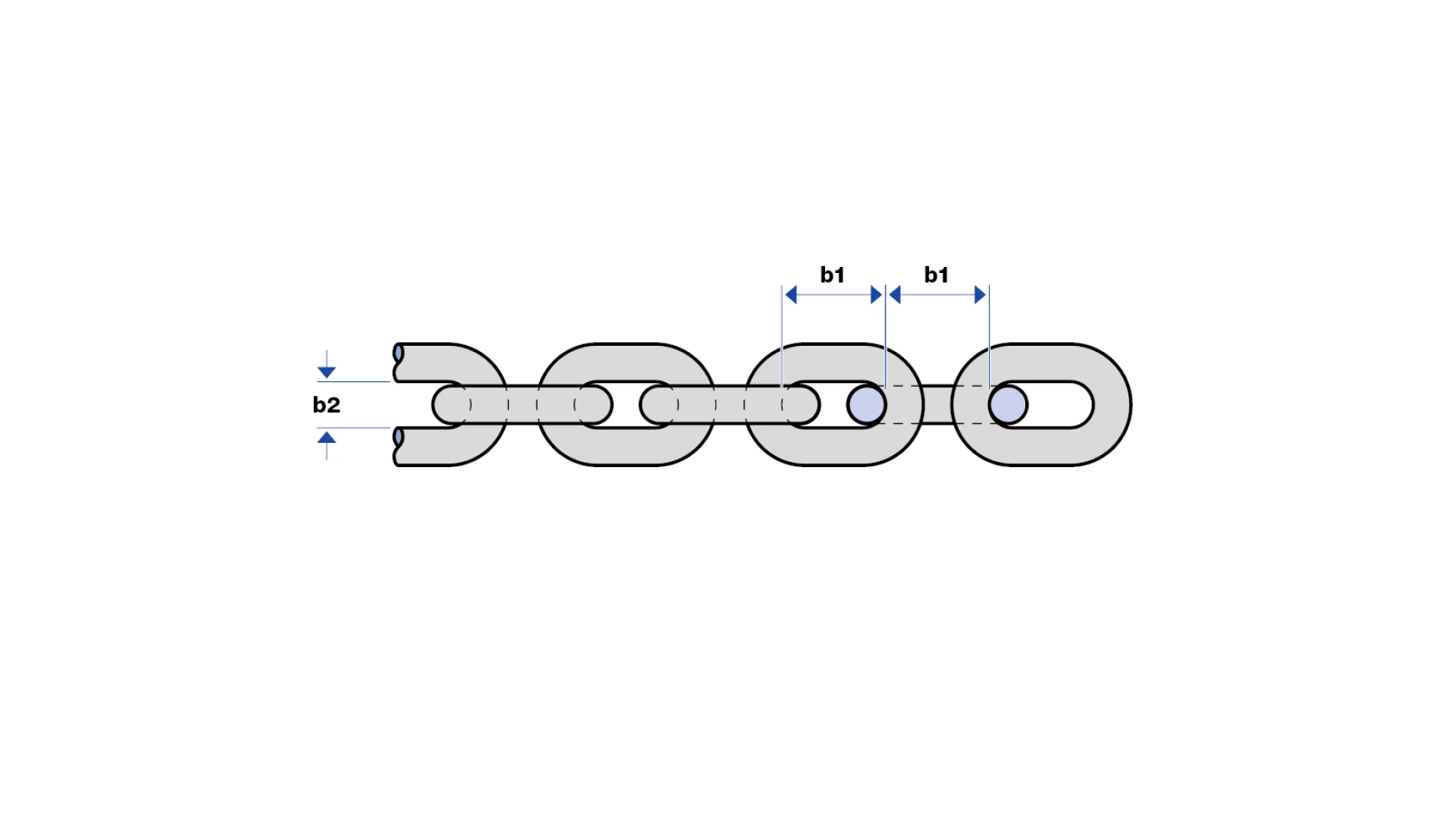

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.
