제품 라인업 — Chains · Stainless steel round chains
| No. | ø | b1 | b2 | WLL kN | kg | |
|---|---|---|---|---|---|---|
| 80811-0200 | 2 | 22 | 4 | 0.25 | 0.0600 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||
| 80811-0300 | 3 | 26 | 5.5 | 0.65 | 0.1500 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||
| 80811-0400 | 4 | 32 | 8 | 1.4 | 0.2700 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||
| 80811-0500 | 5 | 36 | 10 | 2.4 | 0.5000 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||
| 80811-0600 | 6 | 42 | 12 | 3.5 | 0.6000 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||
| 80811-0800 | 8 | 54 | 16 | 6 | 1.1000 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||
| 80811-1000 | 10 | 65 | 20 | 9 | 1.7500 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||
| 80811-1300 | 13 | 82 | 24 | 12 | 2.9500 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||

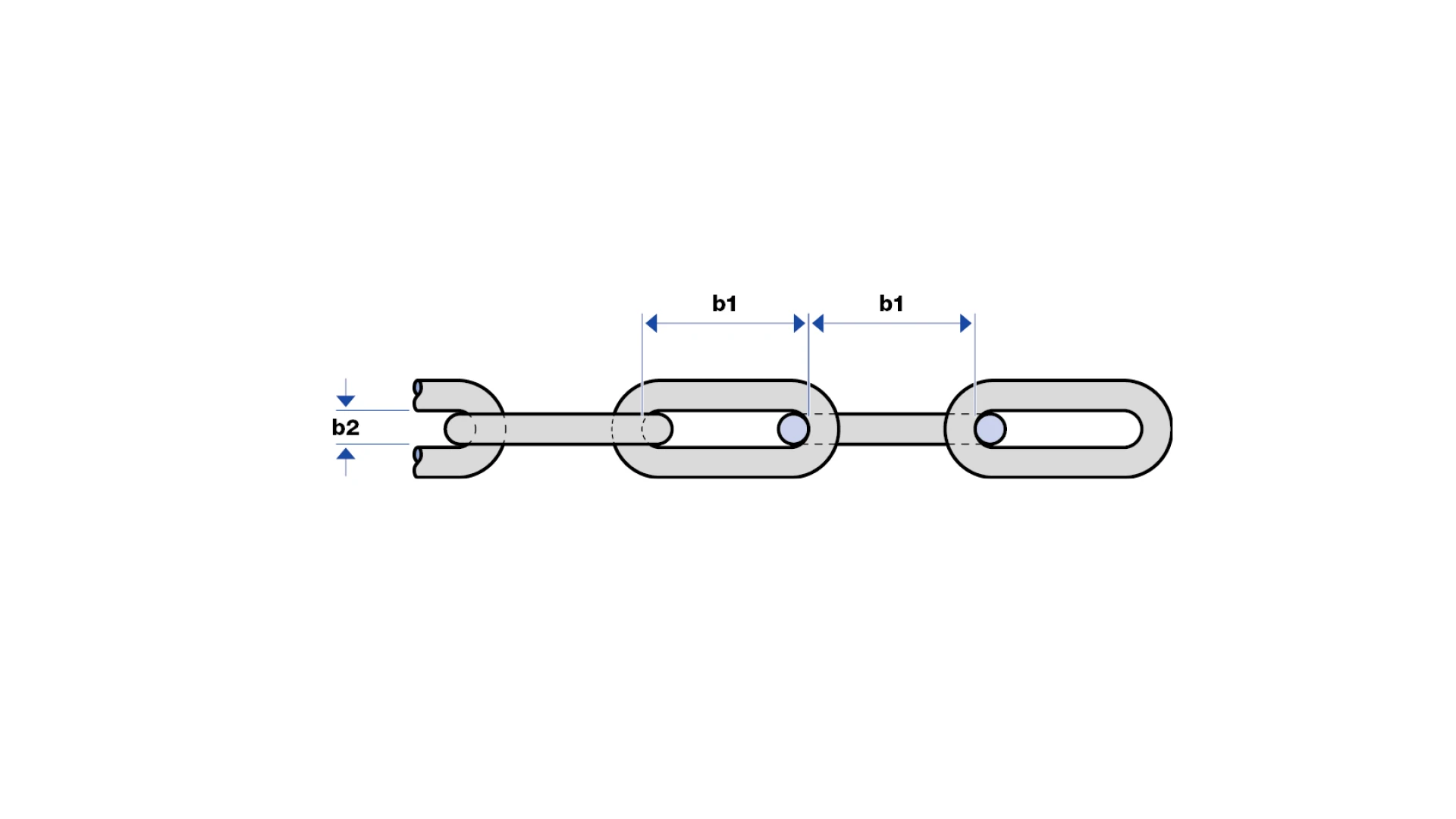

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.
