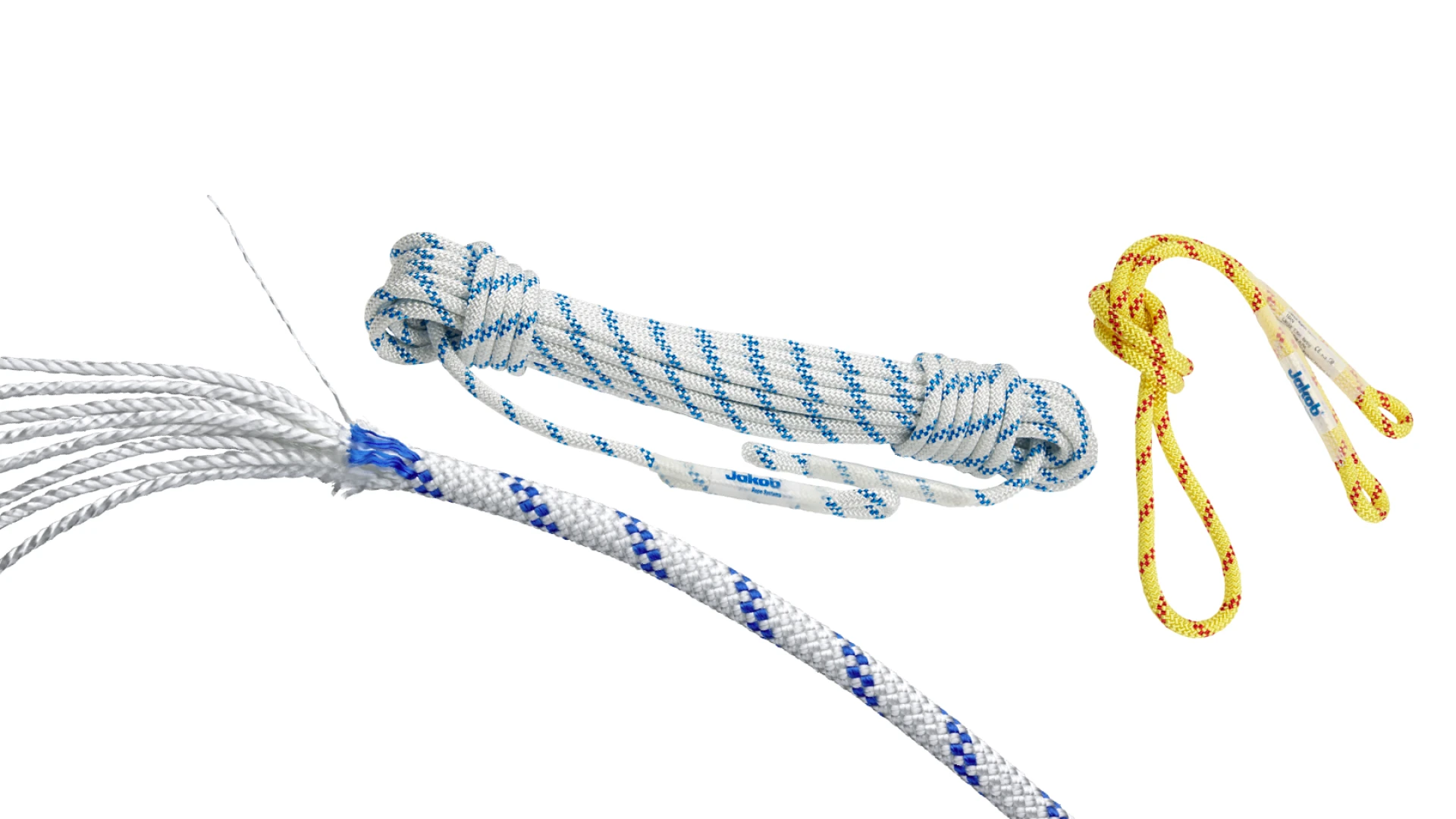

Polyamide kernmantle rope Jakob®-Statik both ends with a needled loop

제품 라인업 — Fibre ropes · Assembled fibre ropes

Polyamide kernmantle rope Jakob®-Statik both ends with a needled loop
No. Color ø L MBL kN kg
60470-1050-015-24 #ffffff-#0000ff 10.7 1.5 22 0.1600
60470-1050-015-57 #fdf800 10.7 1.5 22 0.1600
60470-1050-025-24 #ffffff-#0000ff 10.7 2.5 22 0.2000
60470-1050-025-57 #fdf800 10.7 2.5 22 0.2000
60470-1050-15-24 #ffffff-#0000ff 10.7 15 22 1.1600
60470-1050-15-57 #fdf800 10.7 15 22 1.1600
60470-1050-20-24 #ffffff-#0000ff 10.7 20 22 1.5300
60470-1050-20-57 #fdf800 10.7 20 22 1.5300
60470-1050-25-24 #ffffff-#0000ff 10.7 25 22 1.9000
60470-1050-25-57 #fdf800 10.7 25 22 1.9000
60470-1050-30-24 #ffffff-#0000ff 10.7 30 22 2.2700
60470-1050-30-57 #fdf800 10.7 30 22 2.2700
60470-1050-35-24 #ffffff-#0000ff 10.7 35 22 2.6400
60470-1050-35-57 #fdf800 10.7 35 22 2.6400
60470-1050-40-24 #ffffff-#0000ff 10.7 40 22 3.0000
60470-1050-40-57 #fdf800 10.7 40 22 3.0000

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
