Loop with thimble spliced für Seil geflochten

제품 라인업 — Fibre ropes · Spliced loops

Loop with thimble spliced für Seil geflochten

No.	ø	b4	ø d1	ø d5	kg
60104-0600	6	35	15	12	-
Further informations Standard and Classification: in compliance with DIN 83319 Diameter: 6 mm Price basis / tiered prices Price on request
60104-0800	8	50	20	16	-
Further informations Standard and Classification: in compliance with DIN 83319 Diameter: 8 mm Price basis / tiered prices Price on request
60104-1000	10	60	25	20	-
Further informations Standard and Classification: in compliance with DIN 83319 Diameter: 10 mm Price basis / tiered prices Price on request
60104-1200	12	65	25	24	-
Further informations Standard and Classification: in compliance with DIN 83319 Diameter: 12 mm Price basis / tiered prices Price on request
60104-1400	14	70	30	28	-
Further informations Standard and Classification: in compliance with DIN 83319 Diameter: 14 mm Price basis / tiered prices Price on request
60104-1600	16	90	30	32	-
Further informations Standard and Classification: in compliance with DIN 83319 Diameter: 16 mm Price basis / tiered prices Price on request
60104-1800	18	100	35	36	-
Further informations Standard and Classification: in compliance with DIN 83319 Diameter: 18 mm Price basis / tiered prices Price on request

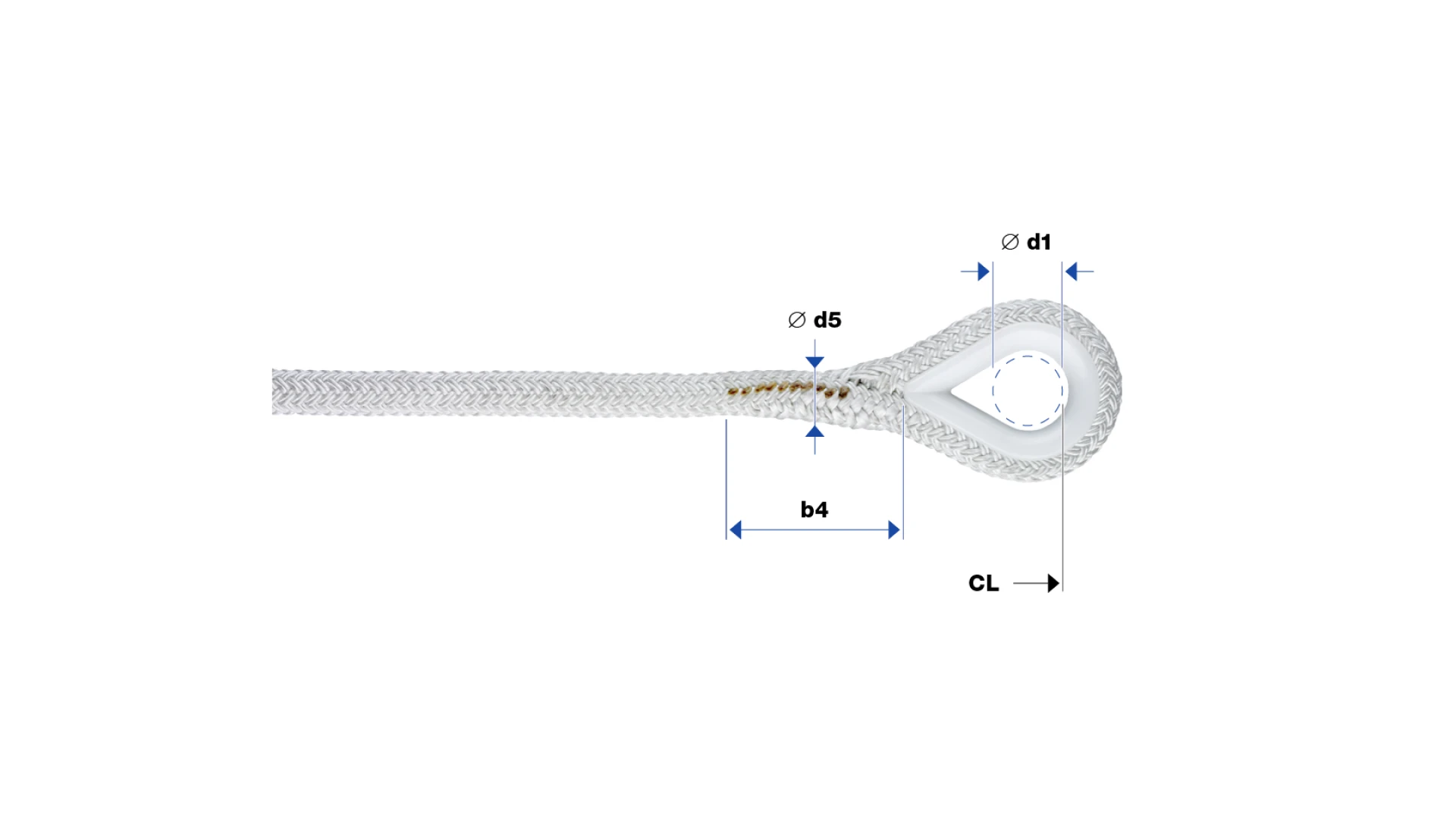

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
