Loop without thimble spliced für Seil gedreht

제품 라인업 — Fibre ropes · Spliced loops

Loop without thimble spliced für Seil gedreht
No. ø b3 ø d2 ø d5 s kg
60102-0600 6 60 x 12 60 -
60102-0800 8 75 x 16 80 -
60102-1000 10 80 x 20 100 -
60102-1200 12 95 x 24 120 -
60102-1400 14 105 x 28 140 -
60102-1600 16 115 x 32 160 -
60102-1800 18 130 x 36 180 -
60102-2000 20 165 x 40 200 -
60102-2500 25 190 x 50 250 -
60102-3000 30 215 x 60 300 -

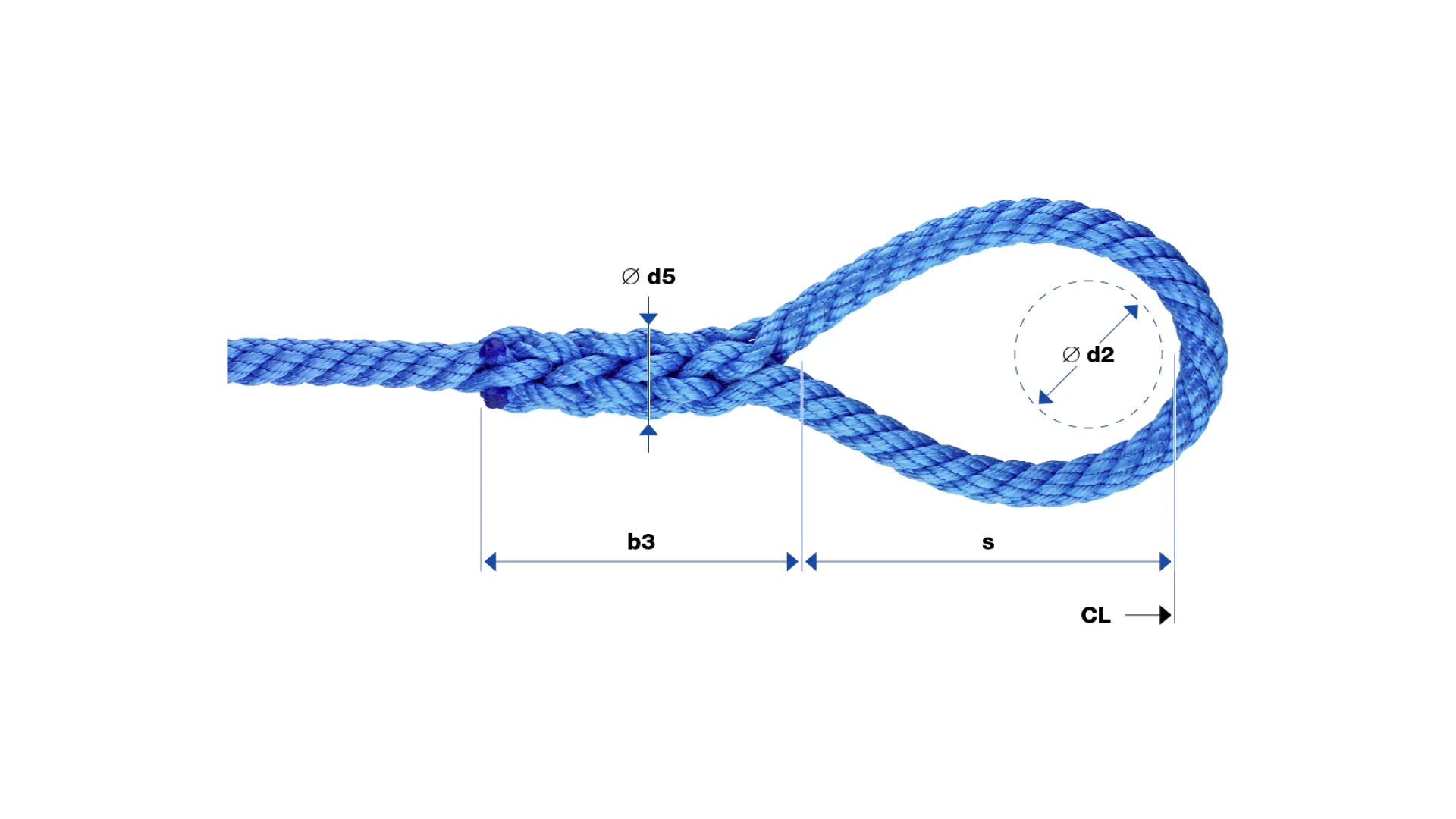

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
