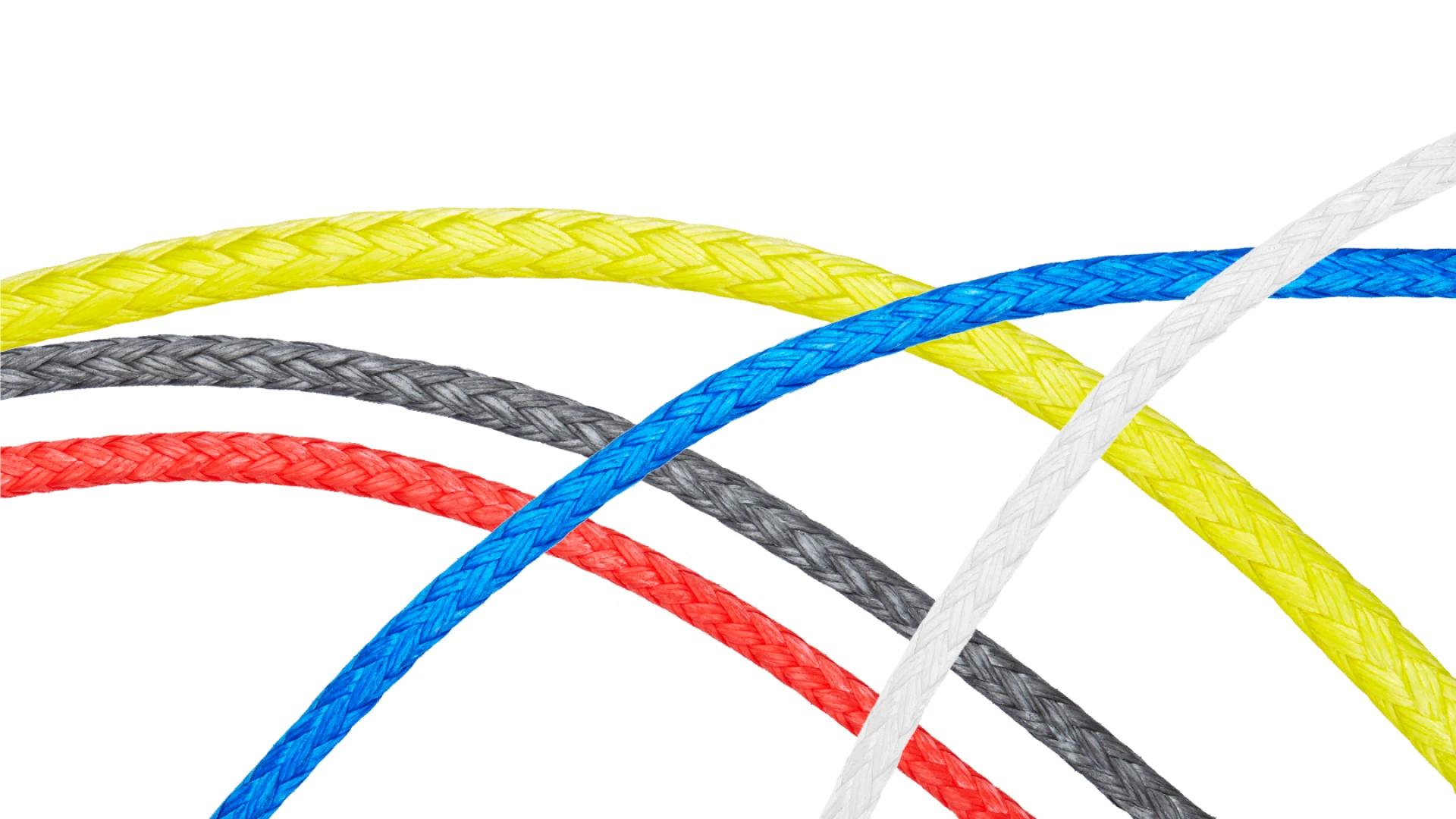

Dyneema®-rope Light forestry winch rope

제품 라인업 — Fibre ropes · Synthetic fibres

Dyneema®-rope Light forestry winch rope
No. Color ø MBL kN kg
60462-0300-00 #999999 3 9.5 0.0050
60462-0300-02 #fdfdfe 3 9.5 0.0050
60462-0300-04 #0086df 3 9.5 0.0050
60462-0300-05 #fdf800 3 9.5 0.0050
60462-0300-07 #e60000 3 9.5 0.0050
60462-0400-00 #999999 4 13 0.0070
60462-0400-02 #fdfdfe 4 13 0.0070
60462-0400-04 #0086df 4 13 0.0070
60462-0400-05 #fdf800 4 13 0.0070
60462-0400-07 #e60000 4 13 0.0070
60462-0500-00 #999999 5 26 0.0130
60462-0500-02 #fdfdfe 5 26 0.0130
60462-0500-04 #0086df 5 26 0.0130
60462-0500-05 #fdf800 5 26 0.0130
60462-0500-07 #e60000 5 26 0.0130
60462-0600-00 #999999 6 43 0.0230
60462-0600-02 #fdfdfe 6 43 0.0230
60462-0600-04 #0086df 6 43 0.0230
60462-0600-05 #fdf800 6 43 0.0230
60462-0600-07 #e60000 6 43 0.0230
60462-0800-00 #999999 8 53 0.0350
60462-0800-02 #fdfdfe 8 53 0.0350
60462-0800-04 #0086df 8 53 0.0350
60462-0800-05 #fdf800 8 53 0.0350
60462-0800-07 #e60000 8 53 0.0350
60462-1000-00 #999999 10 90 0.0490
60462-1000-02 #fdfdfe 10 90 0.0490
60462-1000-04 #0086df 10 90 0.0490
60462-1000-05 #fdf800 10 90 0.0490
60462-1000-07 #e60000 12 90 0.0490
60462-1200-00 #999999 12 119 0.0720
60462-1200-02 #fdfdfe 12 119 0.0720
60462-1200-04 #0086df 12 119 0.0720
60462-1200-05 #fdf800 12 119 0.0720
60462-1200-07 #e60000 14 119 0.0720
60462-1400-00 #999999 14 145 0.0770
60462-1400-02 #fdfdfe 14 145 0.0770
60462-1400-04 #0086df 14 145 0.0770
60462-1400-05 #fdf800 14 145 0.0770
60462-1400-07 #e60000 14 145 0.0770

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
