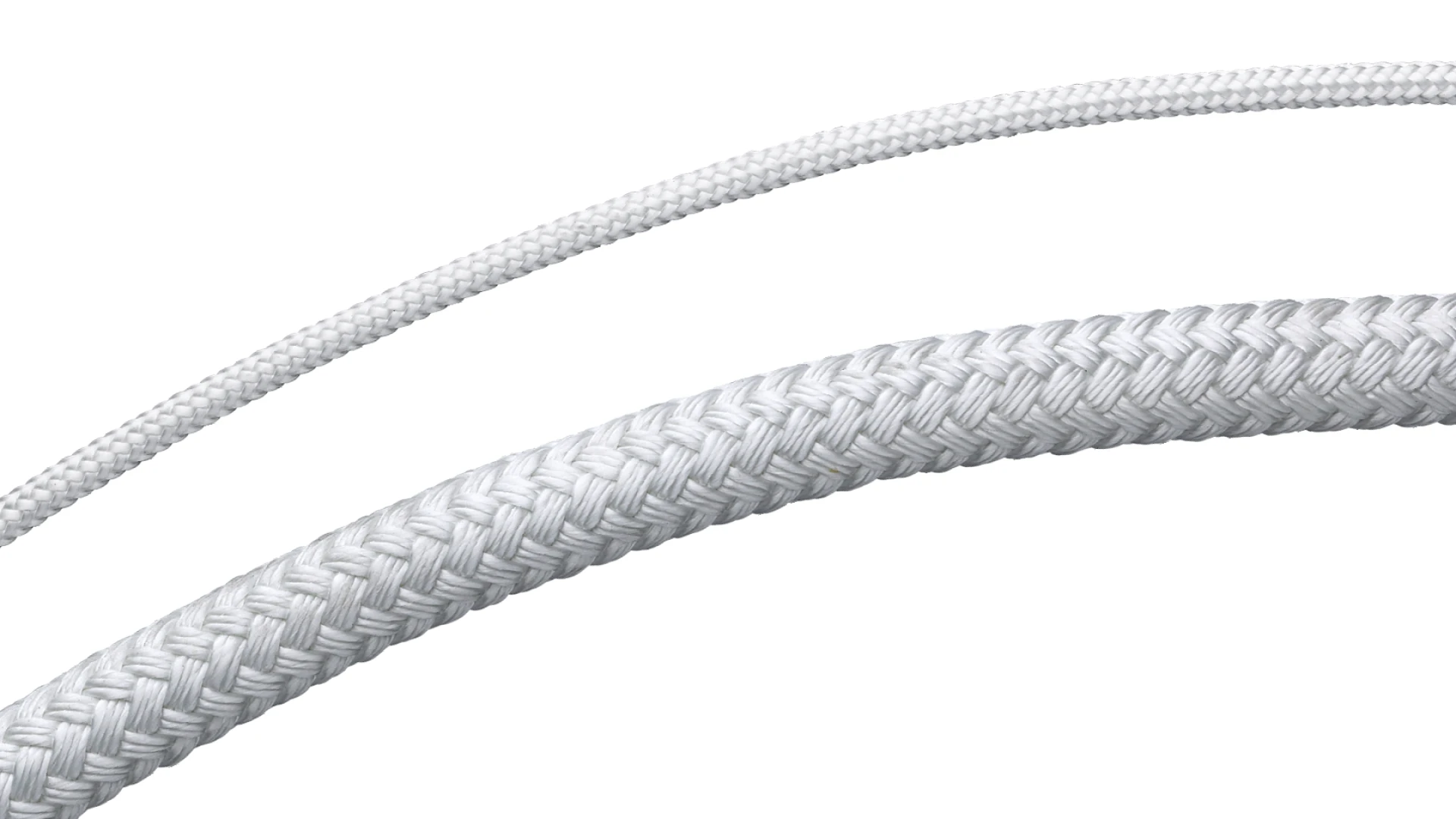

Polyester rope braided, white

제품 라인업 — Fibre ropes · Synthetic fibres

Polyester rope braided, white
No. Color ø MBL kN kg
60400-0100 #fdfdfe 1 0.3 0.0015
60400-0150 #fdfdfe 1.5 0.6 0.0020
60400-0250 #fdfdfe 2.5 1 0.0045
60400-0300 #fdfdfe 3 1.8 0.0060
60400-0350 #fdfdfe 3.5 2.4 0.0080
60400-0400 #fdfdfe 4 3.3 0.0100
60400-0500 #fdfdfe 5 5 0.0190
60400-0600 #fdfdfe 6 8.4 0.0280
60400-0800 #fdfdfe 8 15.5 0.0450
60400-1000 #fdfdfe 10 20.5 0.0700
60400-1200 #fdfdfe 12 24 0.1050
60400-1400 #fdfdfe 14 28 0.1320
60400-1600 #fdfdfe 16 42 0.1980

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
