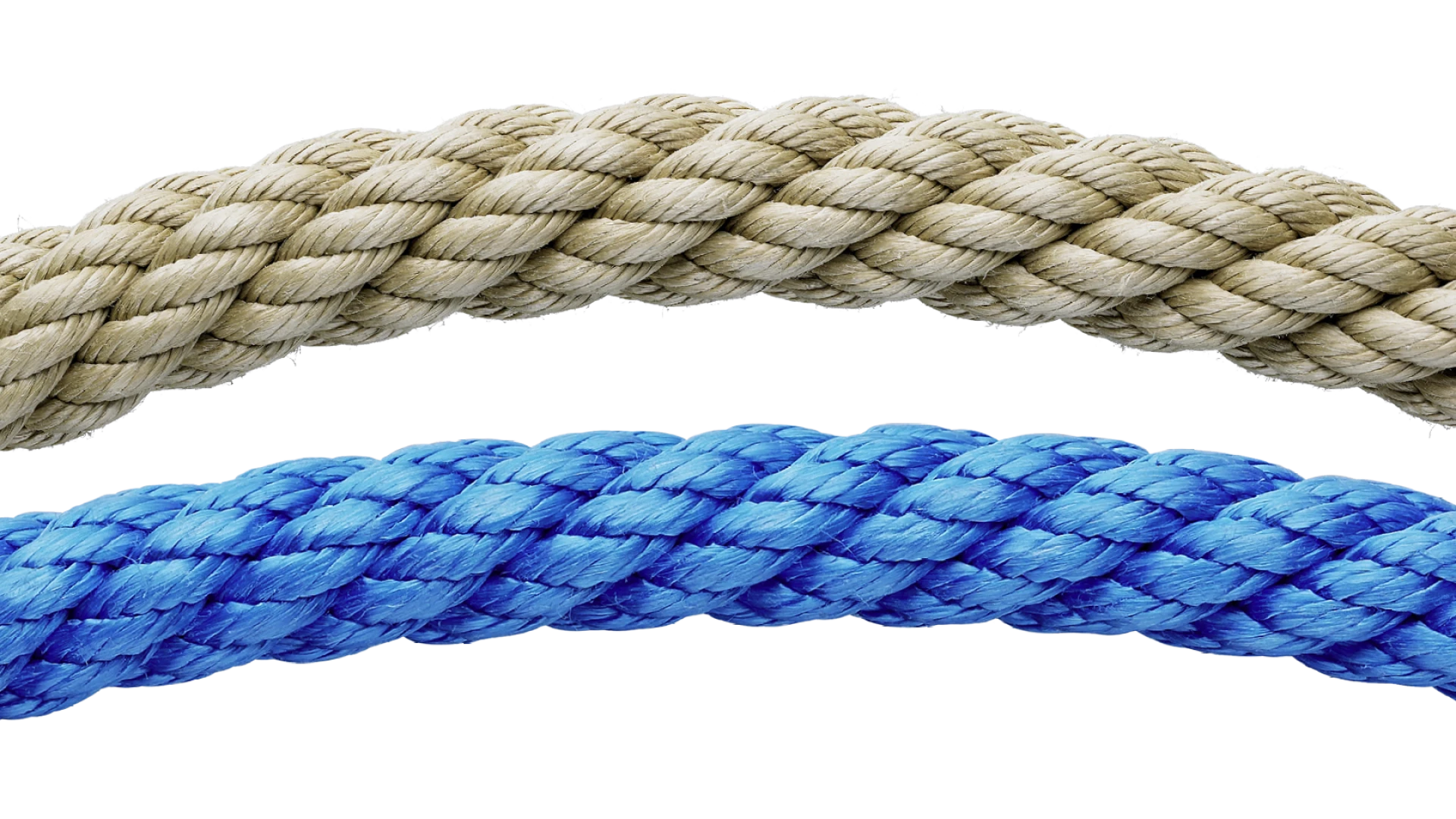

Polypropylene rope twistet

제품 라인업 — Fibre ropes · Synthetic fibres

Polypropylene rope twistet
No. Color ø MBL kN kg
60220-1400 #c8bd9b 14 24.5 0.0800
60220-1600 #c8bd9b 16 32.5 0.1264
60220-2000 #c8bd9b 20 45 0.2000
60220-2500 #c8bd9b 25 65 0.3250
60220-3000 #c8bd9b 30 100 0.4500
60220-3500 #c8bd9b 35 140 0.6000
60220-4000 #c8bd9b 40 160 0.7500
60220-5000 #c8bd9b 50 190 1.2000
60230-1400 #0086df 14 24.5 0.0800
60230-1600 #0086df 16 32.5 0.1000
60230-2000 #0086df 20 45 0.2000
60230-2500 #0086df 25 65 0.2800
60230-3000 #0086df 30 100 0.4500

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
