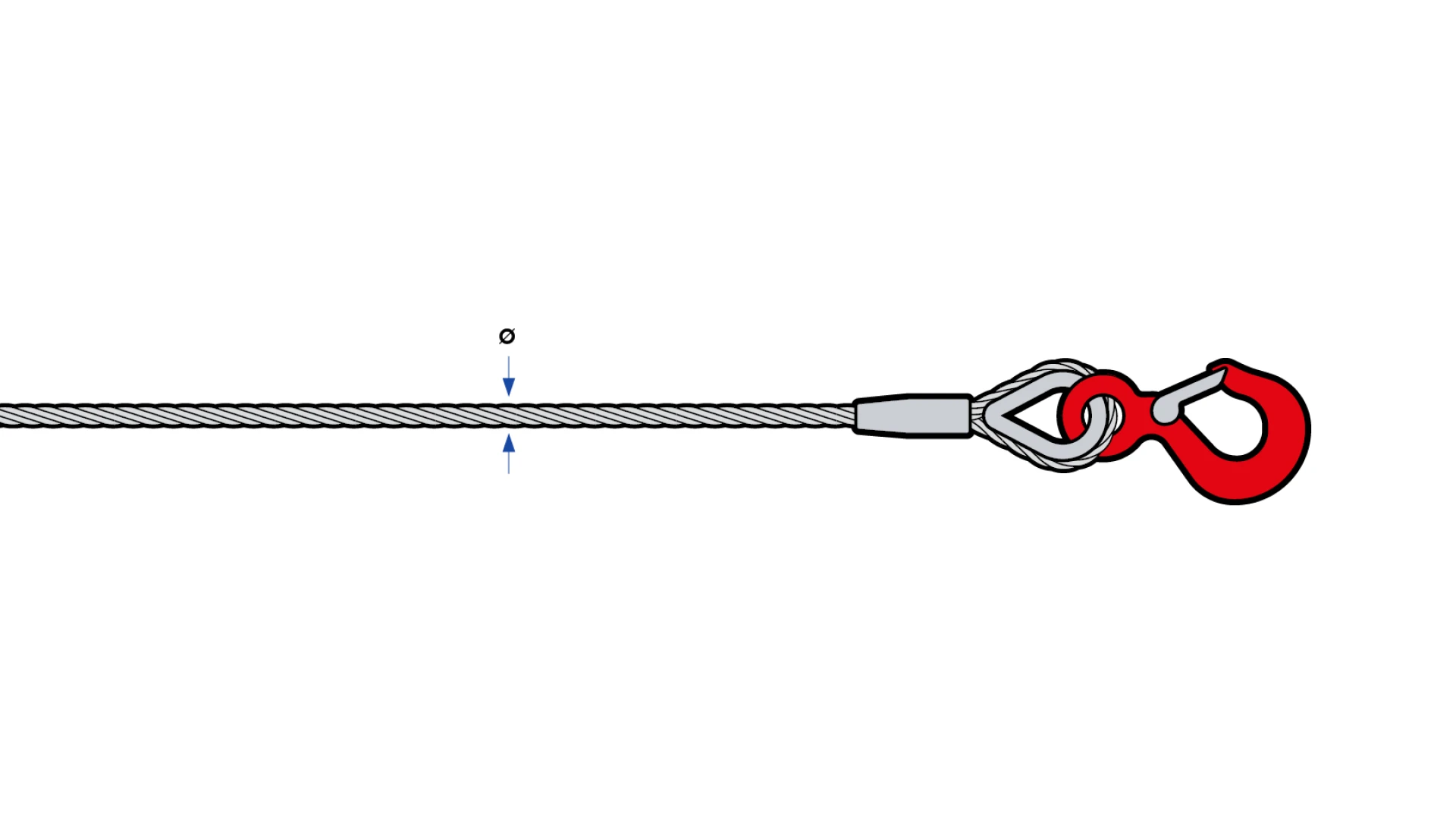

Hoist rope Habegger swaged for HIT-06

제품 라인업 — Habegger rope hoists · Ropes for rope hoists

Hoist rope Habegger swaged for HIT-06

No.	ø	L	kg
02611	6.4	10	3.5400
Further informations Surface: galvanized Diameter: 6.4 mm Weight: 3.5400 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
02612	6.4	15	4.4400
Further informations Surface: galvanized Diameter: 6.4 mm Weight: 4.4400 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
02613	6.4	20	5.3400
Further informations Surface: galvanized Diameter: 6.4 mm Weight: 5.3400 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
02614	6.4	25	6.2400
Further informations Surface: galvanized Diameter: 6.4 mm Weight: 6.2400 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
02615	6.4	30	7.1400
Further informations Surface: galvanized Diameter: 6.4 mm Weight: 7.1400 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
02616	6.4	40	8.9400
Further informations Surface: galvanized Diameter: 6.4 mm Weight: 8.9400 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
02617	6.4	50	10.7400
Further informations Surface: galvanized Diameter: 6.4 mm Weight: 10.7400 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
02618	6.4	60	12.5400
Further informations Surface: galvanized Diameter: 6.4 mm Weight: 12.5400 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request
02619	6.4	70	14.3400
Further informations Surface: galvanized Diameter: 6.4 mm Weight: 14.3400 kg Material group: steel wire Nominal strength (Mat. strength): 1960 N/mm2 Lay direction: sZ Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
