Open spiral strand rope

제품 라인업 — Open spiral ropes · Stainless steel spiral ropes

Open spiral strand rope

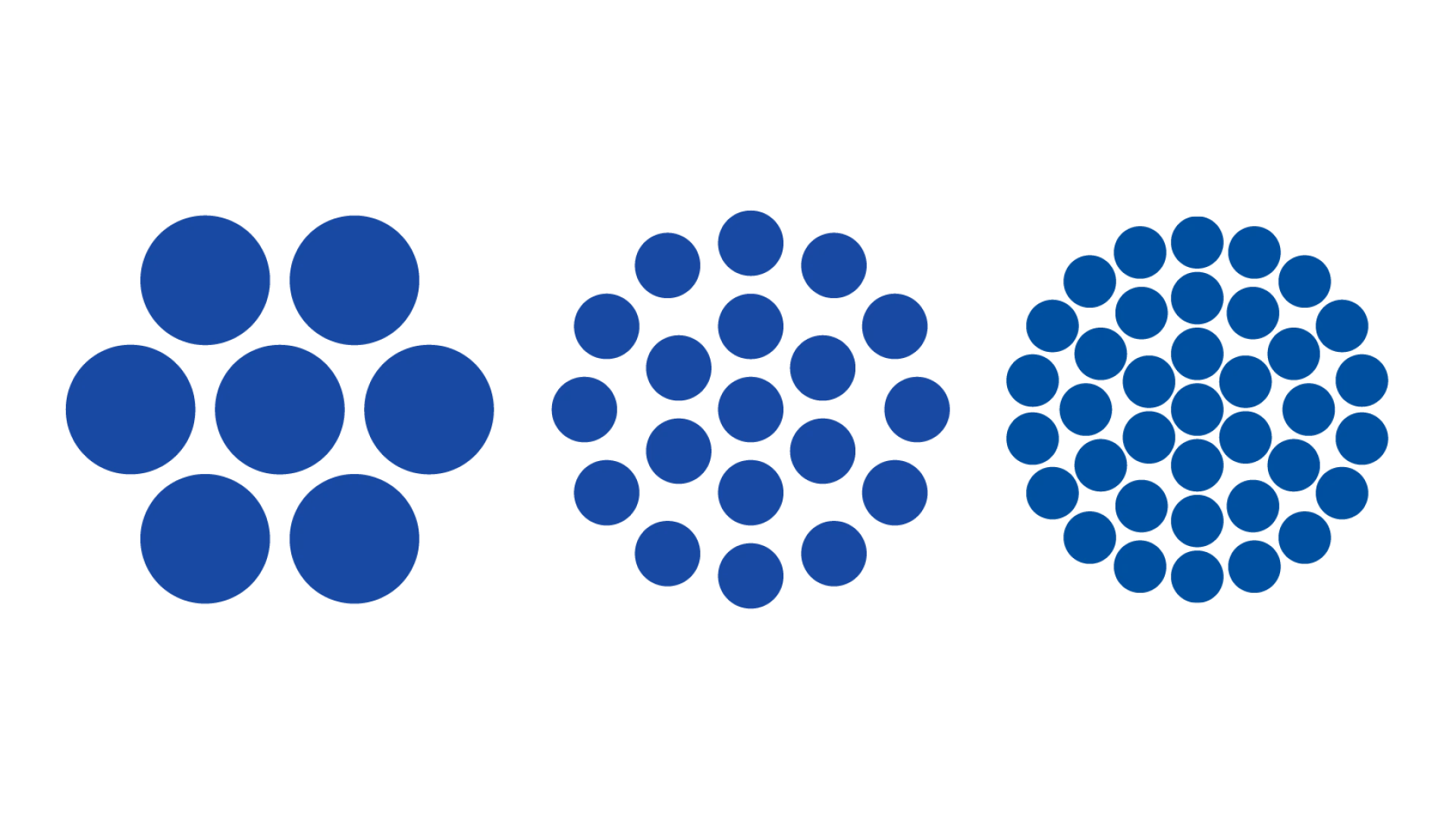

No. ø Constr MBL kN F_Rd kN kg
10810-0062 0.62 1 x 7 0.32 0.21 0.0030
10810-0100 1 1 x 19 0.82 0.55 0.0050
10810-0150 1.5 1 x 19 1.85 1.23 0.0110
10810-0200 2 1 x 19 3.30 2.20 0.0200
10810-0250 2.5 1 x 19 5.15 3.43 0.0310
10810-0300 3 1 x 19 7.40 4.93 0.0420
10810-0400 4 1 x 19 13.19 8.79 0.0740
10810-0500 5 1 x 19 20.60 13.73 0.1370
10810-0600 6 1 x 19 29.67 19.78 0.1780
10810-0800 8 1 x 19 52.75 35.17 0.3170
10810-1000 10 1 x 19 82.43 54.95 0.4850
10810-1200 12 1 x 19 118,69 79.13 0.6980
10810-1400 14 1 x 19 161,55 107,70 0.9710
10810-1600 16 1 x 19 211 140.67 1.2400
10810-1900 19 1 x 19 297.55 198.37 1.7880
10810-2200 22 1 x 19 398,94 265.96 2.3980
10810-2600 26 1 x 37 544 362,67 3.3050

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
