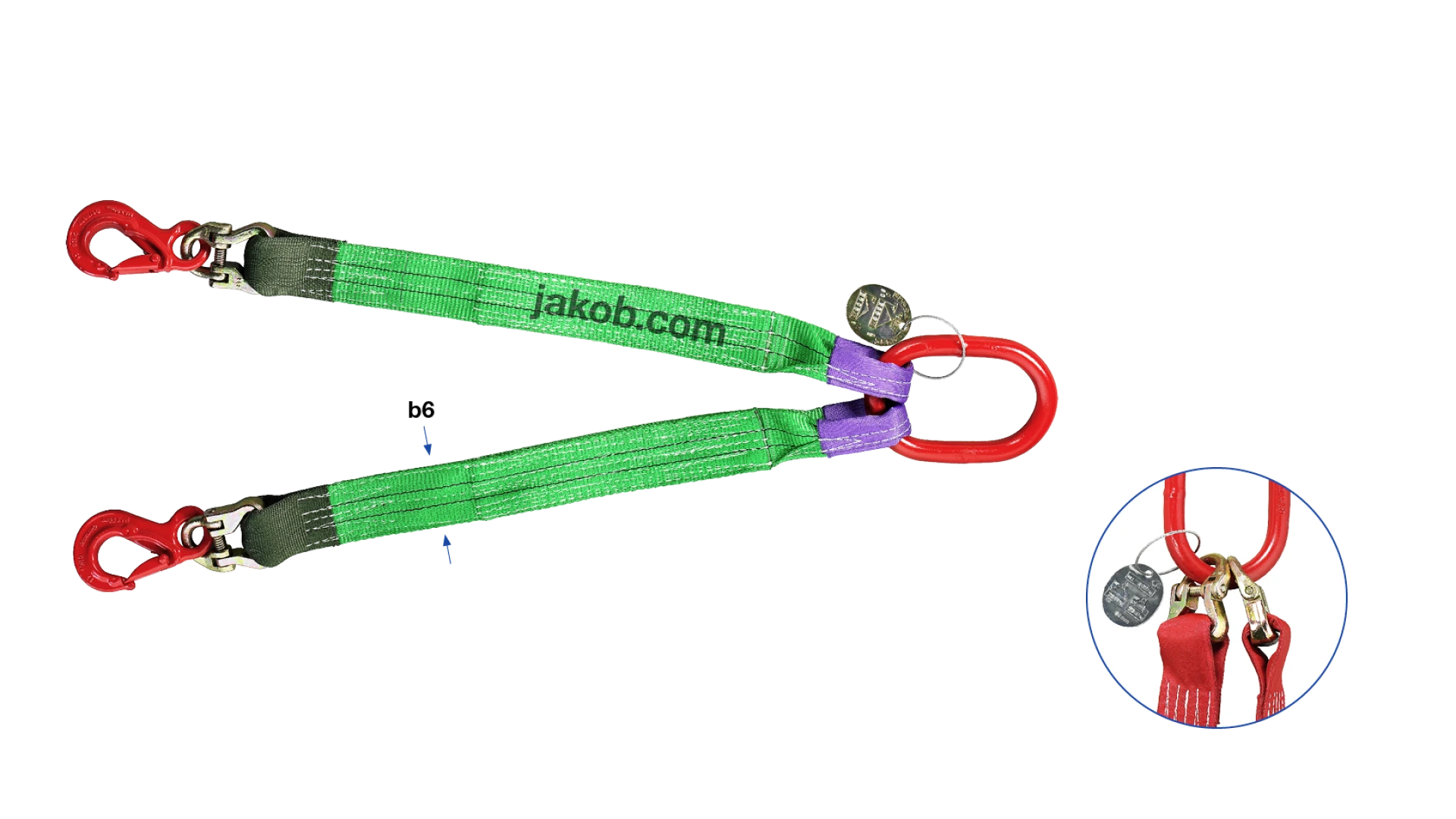

Web sling two-leg
No. b6 Typ L WLL_ßA kN WLL_ßB kN kg
70400-0025-015 25 GS-25-2 1.5 3.5 2.5 -
70400-0025-020 25 GS-25-2 2 3.5 2.5 -
70400-0025-025 25 GS-25-2 2.5 3.5 2.5 -
70400-0025-030 25 GS-25-2 3 3.5 2.5 -
70400-0030-015 30 GD-30-2 1.5 14 10 -
70400-0030-020 30 GD-30-2 2 14 10 -
70400-0030-025 30 GD-30-2 2.5 14 10 -
70400-0030-030 30 GD-30-2 3 14 10 -
70400-0052-015 50 GD-52-2 1.5 21 15 -
70400-0052-020 50 GD-52-2 2 21 15 -
70400-0052-025 50 GD-52-2 2.5 21 15 -
70400-0052-030 50 GD-52-2 3 21 15 -
70400-0060-015 60 GD-60-2 1.5 28 20 -
70400-0060-020 60 GD-60-2 2 28 20 -
70400-0060-025 60 GD-60-2 2.5 28 20 -
70400-0060-030 60 GD-60-2 3 28 20 -
70400-1025-015 25 GD-25-2 1.5 8.8 6.2 -
70400-1025-020 25 GD-25-2 2 8.8 6.2 -
70400-1025-025 25 GD-25-2 2.5 8.8 6.2 -
70400-1025-030 25 GD-25-2 3 8.8 6.2 -

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
