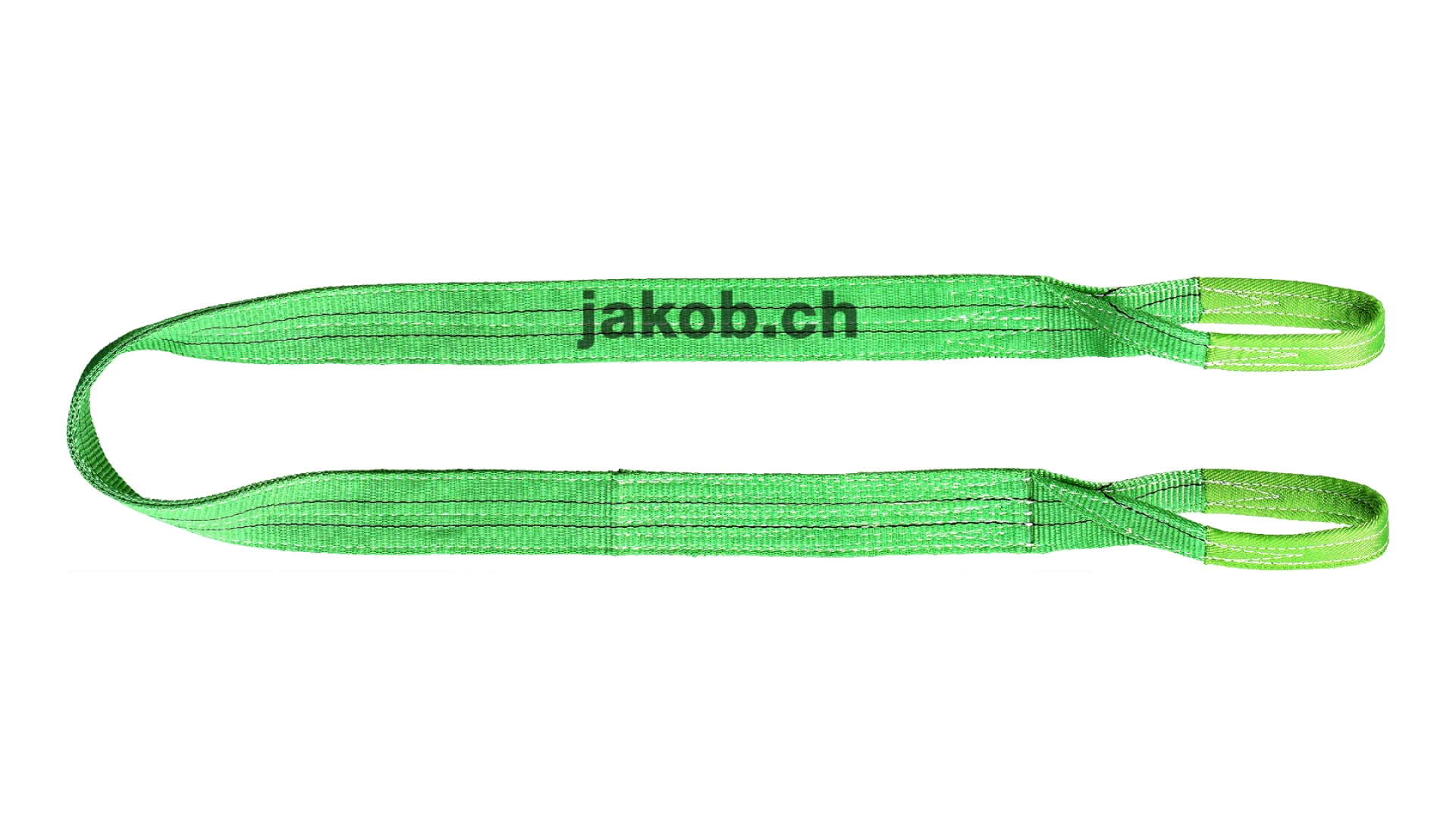

Euro lifting web sling

제품 라인업 — Textile slings · Lifting web slings

Euro lifting web sling
No. Color Typ L WLL kN kg
70300-0030-02 #8d569a HD-30 2 10 0.6500
70300-0030-03 #8d569a HD-30 3 10 0.9300
70300-0030-04 #8d569a HD-30 4 10 1.2400
70300-0030-05 #8d569a HD-30 5 10 0.9600
70300-0030-06 #8d569a HD-30 6 10 1.8000
70300-0060-02 #2da448 HD-60 2 20 1.0000
70300-0060-03 #2da448 HD-60 3 20 1.5000
70300-0060-04 #2da448 HD-60 4 20 2.0500
70300-0060-05 #2da448 HD-60 5 20 2.5000
70300-0060-06 #2da448 HD-60 6 20 2.9700
70300-0090-02 #fdf800 HD-90 2 30 1.4000
70300-0090-03 #fdf800 HD-90 3 30 2.0000
70300-0090-04 #fdf800 HD-90 4 30 2.7000
70300-0090-05 #fdf800 HD-90 5 30 2.9500
70300-0090-06 #fdf800 HD-90 6 30 4.1000
70300-0120-02 #e1e1e5 HD-120 2 40 1.8000
70300-0120-03 #e1e1e5 HD-120 3 40 2.7000
70300-0120-04 #e1e1e5 HD-120 4 40 3.6000
70300-0120-05 #e1e1e5 HD-120 5 40 -
70300-0120-06 #e1e1e5 HD-120 6 40 5.3000
70300-0150-02 #e60000 HD-150 2 50 2.2800
70300-0150-03 #e60000 HD-150 3 50 -
70300-0150-04 #e60000 HD-150 4 50 -
70300-0150-05 #e60000 HD-150 5 50 -
70300-0150-06 #e60000 HD-150 6 50 -

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
